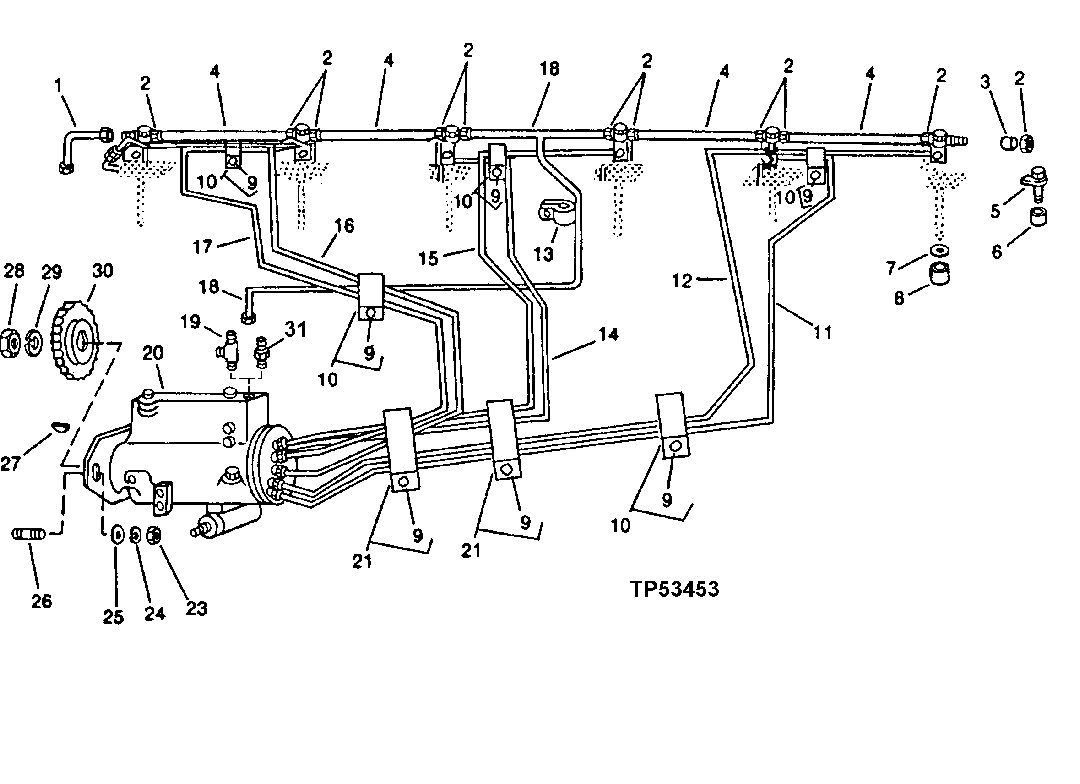

Fuel Injection System (624E) ( - 299999)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR104650	1	Fuel Line	LEAK-OFF
2	R51937	12	Tube Nut	-
3	R51936	12	Sealing Washer	-
4	R66090	4	Tube	(SUB RE68748)
5	R34760	6	CLAMP	-
6	R60745	6	SPACER	(KIT <service-part>RE32011</service-part>) (USE WITH AR90024)
6	R92351	6	Spacer	(USE WITH RE37503)
7	R60746	6	WASHER	-
8	R48000	6	Seal	-
9	19M7300	7	Cap Screw	M6 X 10
10	RE19797	5	Clamp	-
11	RE19795	1	FUEL LINE	NO. 5
12	RE19796	1	FUEL LINE	NO. 6
13	T29969	1	Clamp	-
14	RE19793	1	FUEL LINE	NO. 3
15	RE19794	1	FUEL LINE	NO. 4
16	RE19791	1	FUEL LINE	NO. 1
17	RE19792	1	FUEL LINE	NO. 2
18	AR93058	1	FUEL LINE	LEAK-OFF (624E)
18	AR85615	1	Line	(624EH)
19	R70823	1	Tee Fitting	(624E)
20	RE29446	1	Fuel Injection Pump	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR INTERNAL PARTS) (STANADYNE NO. DM46274716) (624E)
20	SE500658	1	Fuel Injection Pump Reman	(STANADYNE DM46274716) (REMAN FOR RE29446)
20	RE37544	1	FUEL INJECTION PUMP	(SEE YOUR AUTHORIZED PUMP REPAIR STATION FOR INTERNAL PARTS) (STANADYNE NO.DM46274743) (624EH)
20	SE500633	1	Fuel Injection Pump Reman	(STANADYNE DM46274743) (REMAN FOR RE37544)
21	RE19799	1	Clamp	-
22	RE19800	1	Clamp	-
23	14H785	3	Nut	5/16"
24	12H303	3	Lock Washer	5/16"
25	T27860	3	Washer	-
26	R56055	3	STUD	-
27	H64373	1	Shaft Key	(SUB FOR R56424 OR M114270) (CUT TO LENGTH)
28	R56422	1	NUT	-
29	R56423	1	Washer	-
30	R56056	1	GEAR	(48 TEETH)
31	R35352	1	Fitting	(624EH)

Fuel Injection System (624E) ( - 299999)

Нет текстового описания
