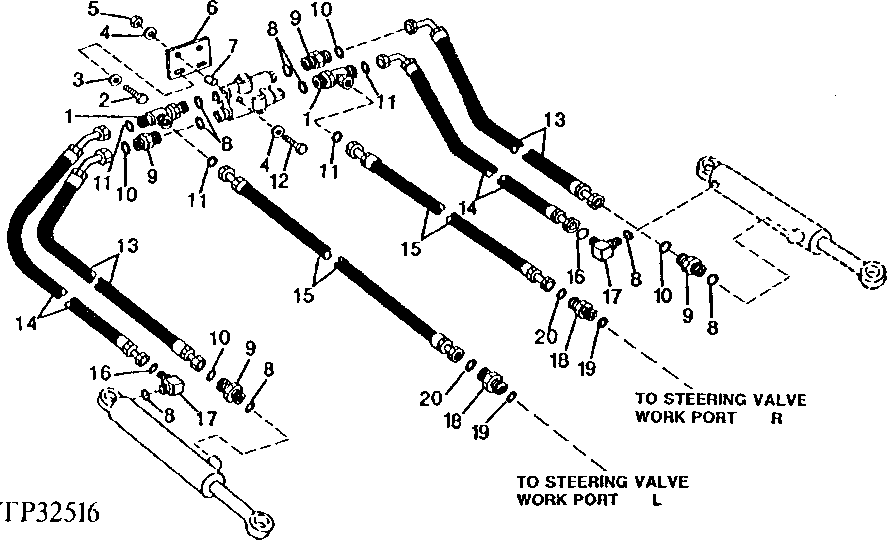

CROSSOVER RELIEF VALVE AND STEERING CYLINDER HYDRAULICS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1025	2	Tee Fitting	-
2	19M7875	2	Cap Screw	M10 X 70
3	24M7239	2	Washer	10.700 X 21 X 2.500 mm
4	24M7238	4	Washer	8.700 X 17 X 2 mm
5	14M7273	2	Nut	M8
6	T125547	1	Plate	(SUB FOR T101592)
7	28H1697	2	Spacer	0.493" X 0.675" X 3/4"
8	R26906	8	O-Ring	-
9	38H1172	4	Adapter Fitting	-
9	38H1174	4	Adapter Fitting	-
10	T77613	4	O-Ring	-
10	T77857	4	O-Ring	-
11	T77932	4	O-Ring	-
12	19M7663	2	Cap Screw	M8 X 70
13	AT102905	2	Hydraulic Hose	13/16" X 1290 mm (50-3/4") X 13/16"
13	AT102409	2	Hydraulic Hose	17.4752" X 1091 mm (43") X 17.4752"
14	AT102408	1	Hydraulic Hose	13/16" X 739 mm (29-1/4") X 1", R.H. (TO CYLINDER HEAD END)
14	AT116014	1	HYDRAULIC HOSE - FABRICATE	13/16" X 701 mm (27-1/2") X 1", L.H. (TO CYLINDER HEAD END)
14	AT102904	1	Hydraulic Hose	1" X 824 mm (32-1/2") X 1", R.H. (TO CYLINDER HEAD END)
14	AT116015	1	Hydraulic Hose	1" X 774 mm (30-1/2") X 1", L.H. (TO CYLINDER HEAD END)
15	AT102407	2	Hydraulic Hose	1" X 1044 mm (41-1/4") X 1"
15	AT115930	2	Hydraulic Hose	1" X 1143 mm (45") X 30.1752"
16	T77857	2	O-Ring	-
16	T77932	2	O-Ring	-
17	38H1012	2	Elbow Fitting	-
17	38H1006	2	Elbow Fitting	-
18	38H1329	2	Adapter Fitting	-
18	38H1163	2	Adapter Fitting	-
19	U12547	2	O-Ring	-
20	T77932	2	O-Ring	-
20	T77858	2	O-Ring	-

CROSSOVER RELIEF VALVE AND STEERING CYLINDER HYDRAULICS
