Attachment Coupler Hydraulics (For Use With Tool Carrier or Log Loader) ( - 536199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T102136	2	Seal	-
2	T119557	1	Bushing	-
3	T162396	2	Lubrication Fitting	(SUB FOR JD7798)
4	28H3401	2	Spacer	0.742" X 1.050" X 5/8"
5	19M7489	2	Cap Screw	M16 X 45
6	R20135	2	Washer	-
7	AT115976	2	Pin Fastener	(BUCKET PIVOT)
8	T63795	1	Washer	-
9	AT135274	1	Hydraulic Hose	-
10	T77613	4	O-Ring	-
11	38H1004	2	Elbow Fitting	-
12	R26448	4	O-Ring	-
13	AT157242	2	Seal Kit	(SUB FOR AT135284)
14	AT157243	2	Hydraulic Cylinder	ORDER AT158618
14	T171552	1	Pin	-
14	AT158620	1	Cylinder Kit	-
14	AT376971	1	Hydraulic Cylinder	ALSO ORDER AT158620 AND T171552
14	AT158618	1	Hydraulic Cylinder	ORDER AT376971
15	AT135275	1	Hydraulic Hose	-
16	38H1016	2	Tee Fitting	-
17	JD7799	1	Lubrication Fitting	90°
18	AT117084	1	Quick Coupler	(SUB AT172310)
19	19H1990	4	Cap Screw	1/2" X 2-1/4", (CYLINDER TO COUPLER)
19	24H1111	8	Washer	17/32" X 1-1/16" X 0.090", (CYLINDER SCREWS TO COUPLER)
19	BP12214	4	Lock Nut	(CYLINDER SCREWS TO COUPLER)
20	AT141824	1	Coupling	(ALSO INCLUDES PIN DISCONNECT VALVE, OIL LINES, HYDRAULIC HOSES, O-RINGS, BRACKET, CLAMPS, FITTINGS PIN DISCONNECT HARNESS, STARTER SWITCH, LABELS, FUSES AND MISCELLANEOUS HARDWARE)

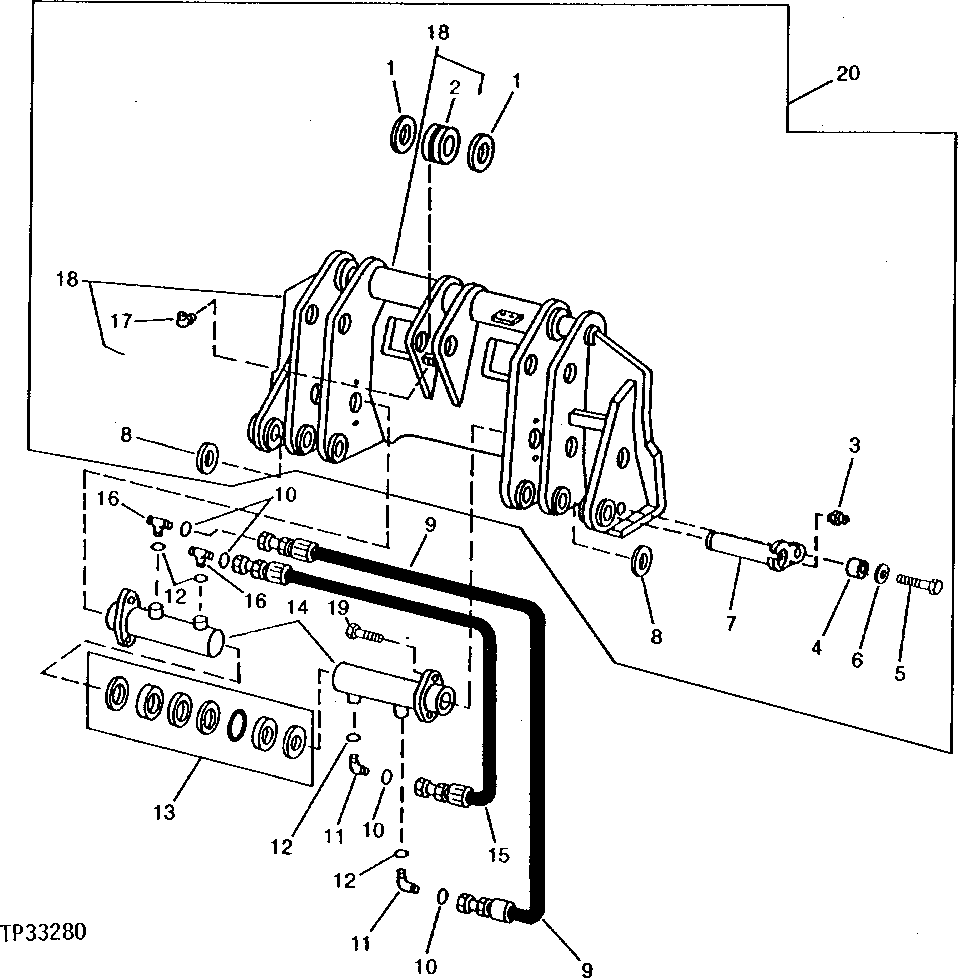

Attachment Coupler Hydraulics (For Use With Tool Carrier or Log Loader) ( - 536199)
