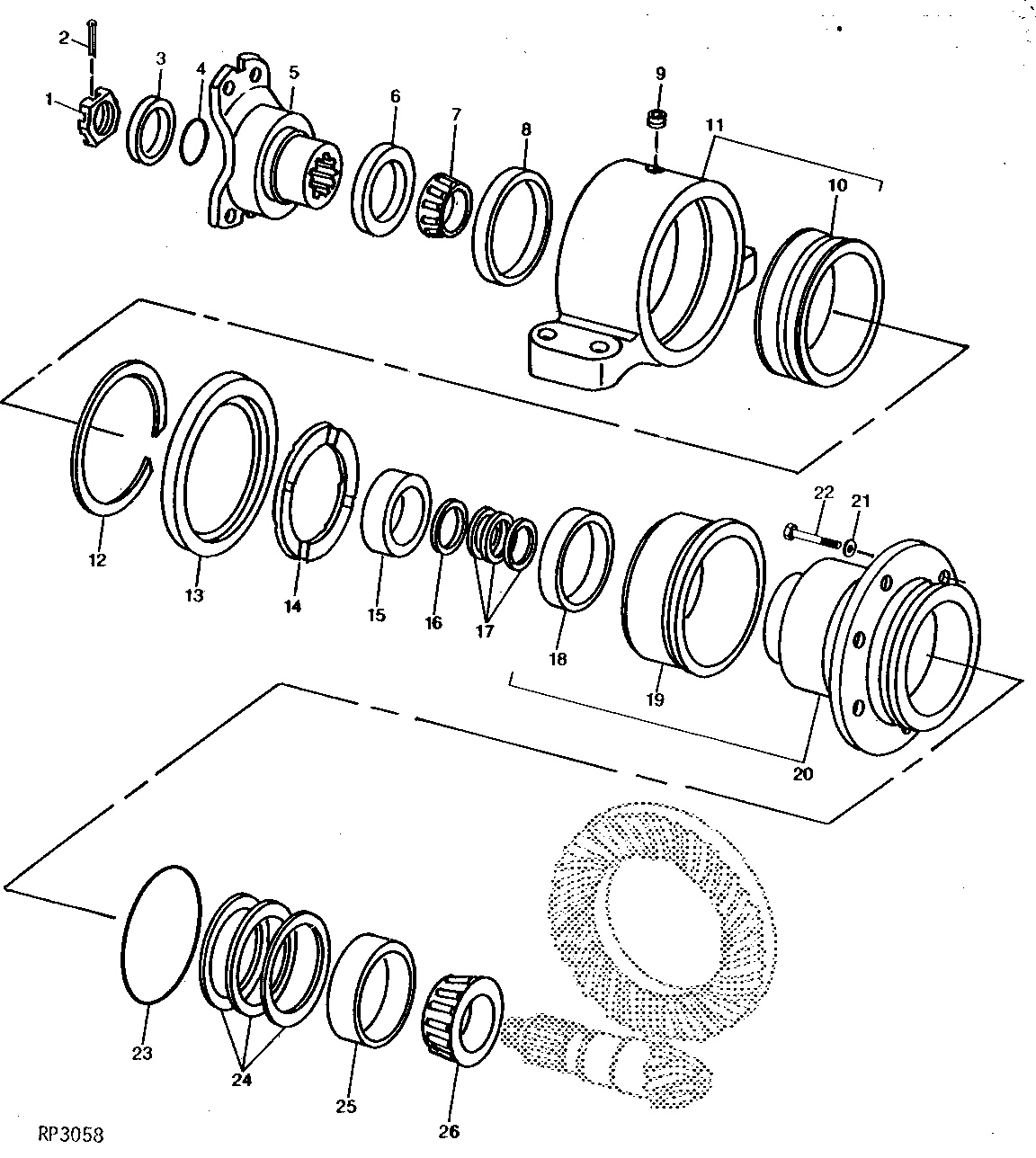

REAR DIFFERENTIAL OSCILLATING SUPPORT AND UNIVERSAL YOKE WITH QUILL [01B16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48776	1	Nut	-
2	11M7032	1	Cotter Pin	5 X 50 MM
3	R48733	1	Washer	-
3	R48734	1	Washer	-
3	R48735	1	Washer	-
4	U10289	1	O-Ring	-
5	R98660	1	UNIVERSAL JOINT YOKE	(SUB FOR R42050) (SUB RE45314 AND (4) 19H2960)
6	R37410	1	Seal	(SUB RE45312)
7	JD8974	1	Bearing Cone	-
8	AR92437	1	Seal	-
9	15H558	1	Pipe Plug	1/8"
10	R70454	1	Bushing	-
11	AR105477	1	SUPPORT	(MARKED R76813)
12	R42227	1	Snap Ring	-
13	AR94169	1	Seal	-
14	R56298	1	Thrust Washer	-
15	JD8240	1	Bearing Cup	-
16	R135535	1	Spacer	(SUB FOR R45201)
17	R45197	1	Shim	0.18 MM (.007")
17	R45198	1	Shim	0.25 MM (.010")
17	R45199	1	Shim	0.30 MM (.012")
17	R45200	1	Shim	0.38 MM (.015")
18	R70453	1	Sleeve	WEAR
19	R70452	1	Sleeve	-
20	RE35234	1	BEARING HOUSING W/O BEARING	(MARKED R70448 OR R92815)
21	R47172	6	Washer	-
22	R48783	6	CAP SCREW	-
23	R27796	1	O-Ring	-
24	-	1	Part 29	(A) ( R26227 NO LONGER AVAILABLE) 0.08 MM (.003")
24	-	1	Part 30	(A) ( R26228 NO LONGER AVAILABLE) 0.18 MM (.005")
25	JD8264	1	Bearing Cup	-
26	JD8970	1	Bearing Cone	-

REAR DIFFERENTIAL OSCILLATING SUPPORT AND UNIVERSAL YOKE WITH QUILL [01B16]
