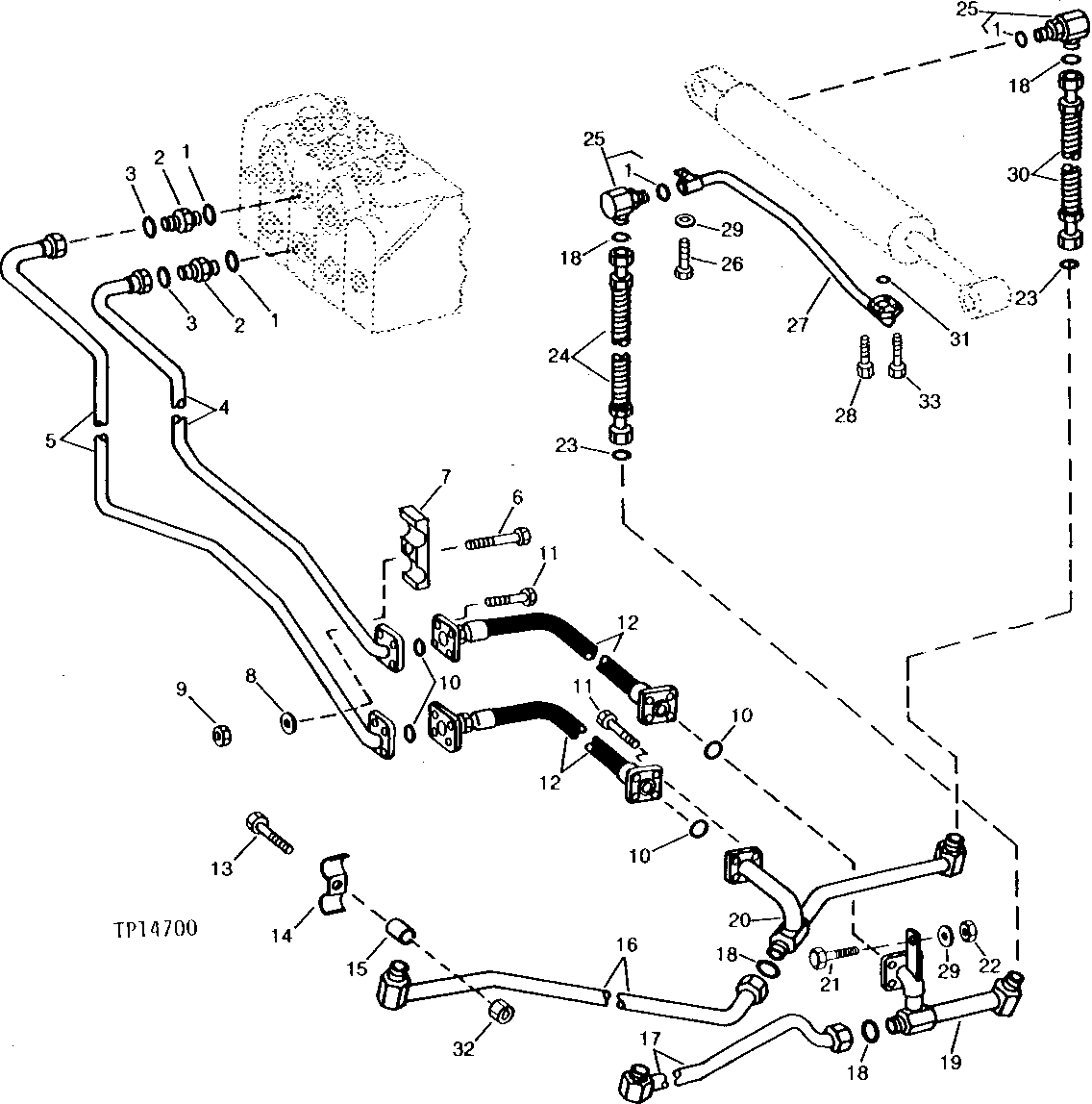

LOADER CONTROL VALVE TO BOOM CYLINDER HYDRAULICS [03C15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	6	O-Ring	-
2	38H1216	2	Adapter Fitting	-
3	T76938	2	O-Ring	-
4	AT83022	1	OIL LINE	-
5	AT83023	1	OIL LINE	-
6	19H2732	1	Cap Screw	3/8" X 2-3/4"
7	T52978	1	Clamp	-
8	24H1308	1	Washer	13/32" X 1" X 0.134"
9	T54568	1	Lock Nut	-
10	H61355	4	O-RING	(SUB FOR U12037, THIS APPLICATION)
11	19H3385	16	Cap Screw	1/2" X 1-1/8"
12	AT61263	2	HYDRAULIC HOSE - FABRICATE	1" X 775 MM (30-1/2") X 1"
13	19H2676	2	Cap Screw	3/8" X 1"
14	T40705	2	Clamp	-
15	28H1697	2	Spacer	0.493" X 0.675" X 3/4"
16	AT78409	1	OIL LINE	-
17	AT78407	1	OIL LINE	-
18	T77858	2	O-Ring	-
19	AT78406	1	OIL LINE	-
20	AT78408	1	OIL LINE	-
21	19H2676	1	Cap Screw	3/8" X 1"
22	14H1076	1	Nut	3/8"
23	T77858	8	O-Ring	-
24	AT83026	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 659 MM (26") X 1-3/16"
25	AT78141	4	ELBOW FITTING	-
25	AT80013	1	KIT	90° SWIVEL REPAIR KIT
26	19H1648	2	Cap Screw	3/8" X 3/4"
27	AT61259	2	OIL LINE	-
28	19H2549	4	Cap Screw	3/8" X 1-7/8"
29	12H304	2	Lock Washer	3/8"
30	AT83025	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 524 MM (20-3/4") X 1-3/16"
31	A4730R	2	O-Ring	-
32	T54568	1	Lock Nut	-
33	19H3483	4	Cap Screw	3/8" X 1-1/8"
