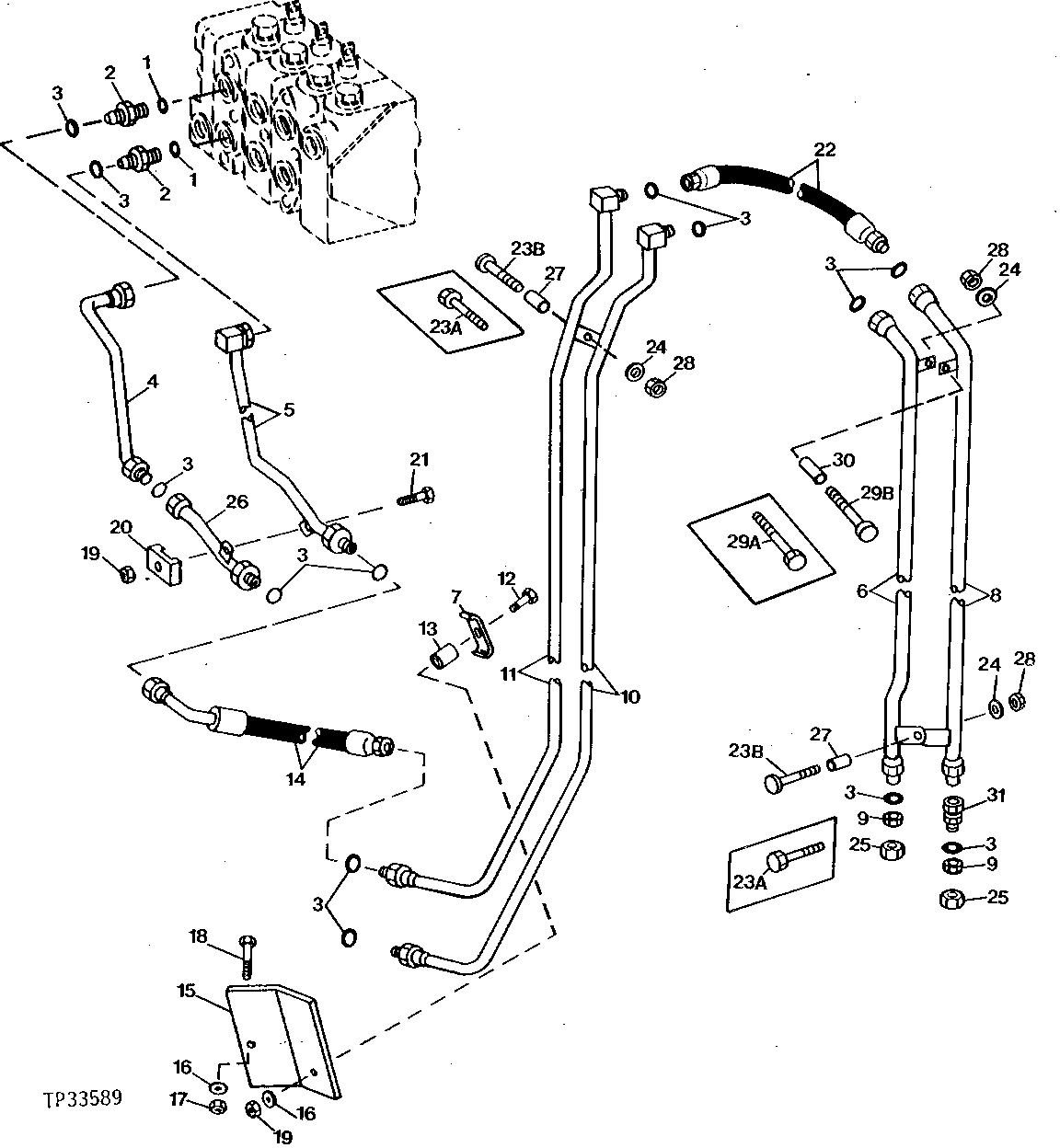

LOADER AUXILIARY CONTROL VALVE HYDRAULICS [03C17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	38H1194	2	Adapter Fitting	-
3	T77858	13	O-Ring	-
4	AT84413	1	OIL LINE	-
5	AT80031	1	OIL LINE	-
6	AT81503	1	LINE	-
7	A33911	1	HOSE CLAMP	-
8	AT81502	1	OIL LINE	-
9	38H1418	2	Fitting	(SUB FOR 38H1142)
10	AT81500	1	LINE	-
11	AT81499	1	LINE	-
12	19H2552	1	CAP SCREW	3/8" X 1-1/8"
13	M16521	1	BUSHING	-
14	AT80033	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 902 MM (35-1/2") X 1-3/16"
15	T74279	1	BRACKET	-
16	24H1308	3	Washer	13/32" X 1" X 0.134"
17	T54568	2	Lock Nut	-
18	19H3267	2	Cap Screw	3/8" X 1-5/8"
19	T54568	1	Lock Nut	-
20	T71348	1	CLAMP	(NO LONGER REQUIRED)
21	19H2855	1	Cap Screw	3/8" X 3-1/4"
22	AT81501	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 791 MM (31-1/4") X 1-3/16"
24	24H1850	3	Washer	17/32" X 1-1/4" X 0.180"
25	38H1356	2	Tube Nut	(SUB FOR 38H1121)
26	AT84414	1	OIL LINE	-
27	28H2553	2	BUSHING	0.742" X 1.050" X 1-1/8"
28	14H1040	3	Nut	1/2"
30	28H1973	1	Bushing	0.824" X 1.050" X 1-3/4"
31	AT83896	2	ADAPTER FITTING	(CONVERTS ORS FITTINGS TO 37 DEGREE FLARE FITTINGS)
23A	19H3579	2	Cap Screw	1/2" X 1-3/8"
23B	AT85065	2	WELD STUD	-
29A	19H2508	1	CAP SCREW	1/2" X 1-3/8"
29B	AT85060	1	WELD STUD	-

LOADER AUXILIARY CONTROL VALVE HYDRAULICS [03C17]

Нет текстового описания
