HYDRAULIC OIL RETURN FILTER ASSEMBLY [03E17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	B3690R	2	O-Ring	-
2	T81667	1	PLATE	-
3	24H1211	2	Washer	9/16" X 1-3/8" X 0.105"
4	19H2472	2	Cap Screw	1/2" X 1"
5	AT84363	1	OIL LINE	-
6	T78784	1	O-Ring	-
7	38H1197	1	Adapter Fitting	-
8	U13639	1	O-Ring	-
9	T81137	1	ANGLE	-
10	19H2993	4	Cap Screw	1/2" X 1-1/2"
11	24H1122	4	Washer	3/8" X 7/8" X 0.083"
12	19H2664	4	Cap Screw	5/16" X 3/4"
13	38H1165	1	Adapter Fitting	-
14	T78612	2	O-Ring	-
15	AT82196	1	OIL LINE	-
16	T38350	1	CLIP	-
17	24H1211	1	Washer	9/16" X 1-3/8" X 0.105"
18	19H3385	1	Cap Screw	-
19	T77858	3	O-Ring	-
20	AT82184	1	HYDRAULIC HOSE - FABRICATE	1-11/16" X 1 308 MM (51-1/2") X 1-11/16"
21	AT81993	1	HYDRAULIC HOSE - FABRICATE	1-3/16" X 1 708 MM (67-1/4") X 1-3/16"
22	AT84418	1	HYDRAULIC HOSE - FABRICATE	13/16" X 1 550MM (61") X 9/16"
23	AT103193	1	Oil Filter	(SUB FOR AT84251)
23	AT167763	1	OIL FILTER	(USE WITH FELLER-BUNCHER) (SUB FOR AT172912, THIS APPLICATION)
24	24H1111	4	Washer	17/32" X 1-1/16" X 0.090"
25	P46051	1	O-Ring	-
26	R26375	1	O-Ring	-
27	AT112180	1	Kit	SWITCH, FILTER RESTRICTION INDICATOR
28	AT103195	1	OIL FILTER	USE IF AVAILABLE, (SUB FOR AT82764) (SUB AT129520)
28	AT105661	1	OIL FILTER	(FOR USE WITH FELLER-BUNCHER) USE IF AVAILABLE, (SUB FOR AT82192) (SUB AT129521)
29	T77857	1	O-Ring	-

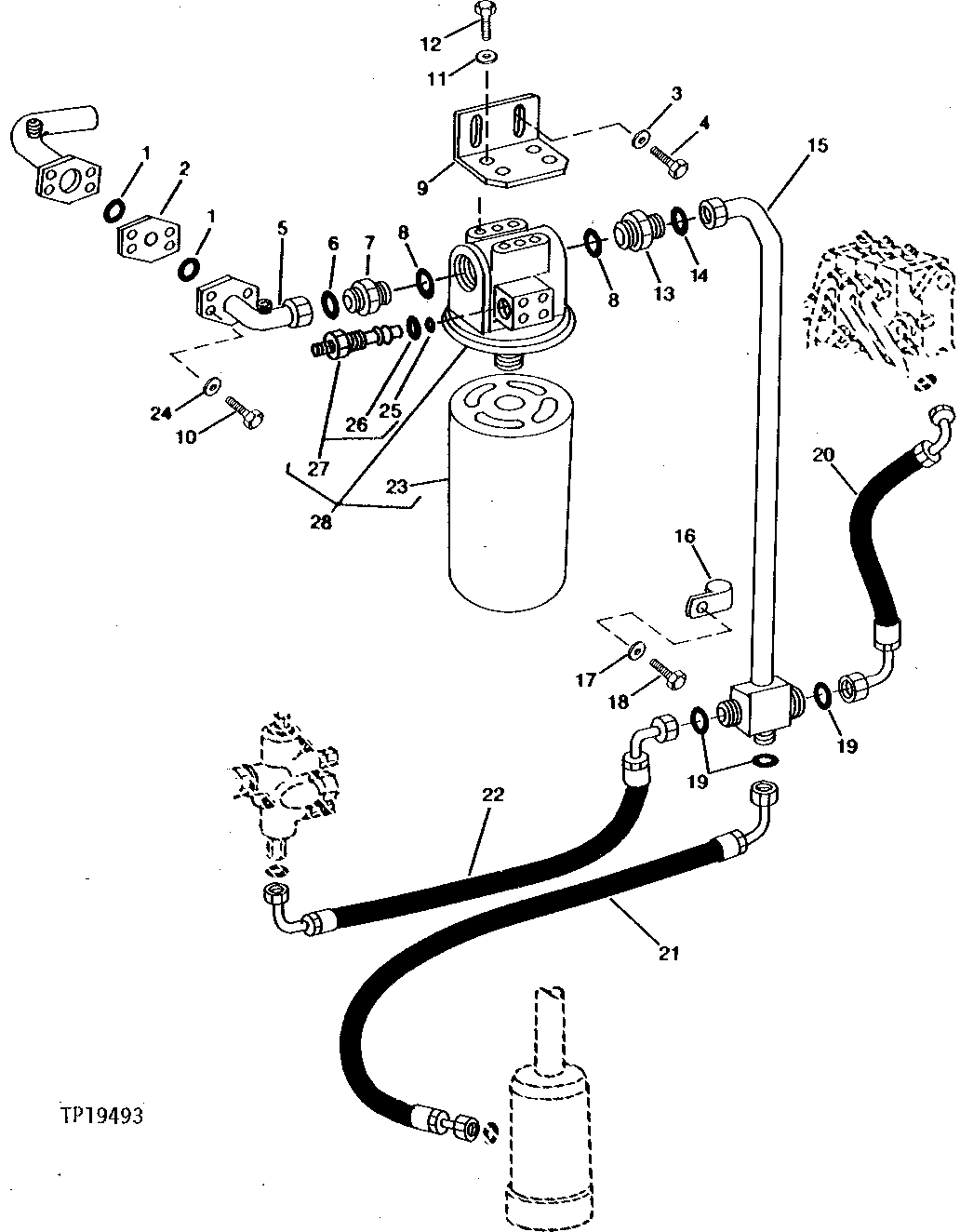

HYDRAULIC OIL RETURN FILTER ASSEMBLY [03E17]
