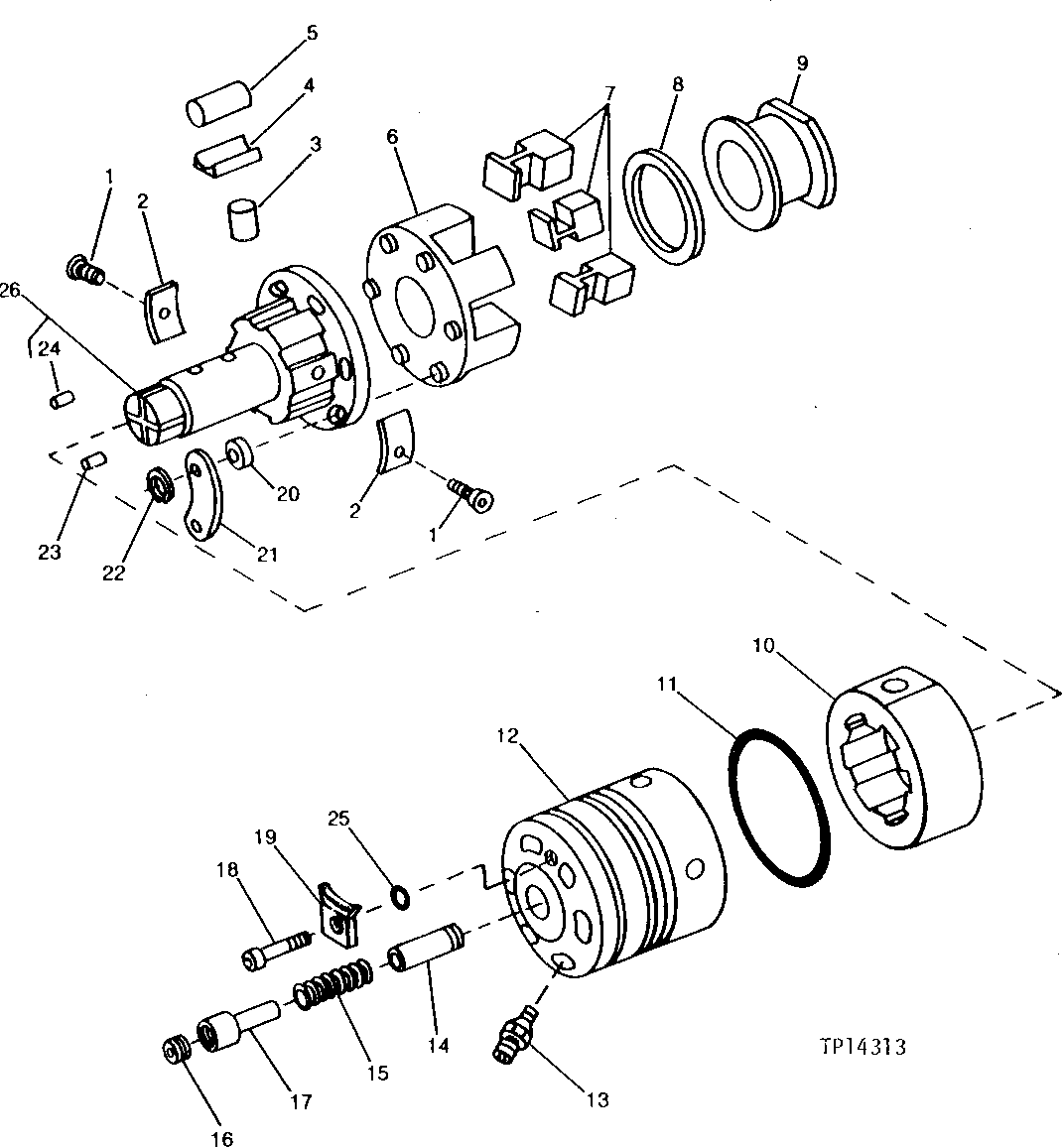

FUEL INJECTION PUMP HYDRAULIC HEAD AND ROTOR GROUP (ROOSA-MASTER NO. DM4627ABE4012) [01F14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48506	2	SCREW	(POLISHED HEAD)
1	R48509	2	SCREW	-
2	R48505	2	SPRING	-
3	R57800	2	PLUNGER	(ROTOR A) (LONG)
3	R57807	2	PLUNGER	(ROTOR D) (SHORT)
3	R57806	2	PLUNGER	(ROTOR C) (SHORT)
3	R57805	2	PLUNGER	(ROTOR B) (SHORT)
3	R57804	2	PLUNGER	(ROTOR A) (SHORT)
3	R57803	2	PLUNGER	(ROTOR D) (LONG)
3	R57802	2	PLUNGER	(ROTOR C) (LONG)
3	R57801	2	PLUNGER	(ROTOR B) (LONG)
4	R57808	4	SHOE	CAM-ROLLER (-20) (PREFERRED)
4	R60709	1	SHOE	CAM-ROLLER (-15)
5	T11886	4	NEEDLE ROLLER	-
6	AR61993	1	RETAINER	-
7	R54239	6	WEIGHT	-
8	R54240	1	THRUST WASHER	-
9	R74314	1	SLEEVE	-
10	R48531	1	RING	-
11	T11891	1	O-RING	(K)
12	-	1	Part 21	(SUB AR102802)
13	R57137	6	FITTING	-
14	R57798	1	VALVE	STANDARD
14	R58077	1	VALVE	OVERSIZE
15	R57799	1	SPRING	-
16	R57809	1	SCREW	-
17	R57810	1	STOP	-
18	R75974	1	Screw	-
19	R75975	1	PLATE	-
20	R54249	6	CUSHION	-
21	R54252	3	RETAINER	-
22	R54242	6	SNAP RING	(K)
23	T11926	2	SET SCREW	-
24	R30725	1	SCREW	-
25	R34812	1	O-Ring	-
26	AR102802	1	HYDRAULIC CYLINDER CAP	-

FUEL INJECTION PUMP HYDRAULIC HEAD AND ROTOR GROUP (ROOSA-MASTER NO. DM4627ABE4012) [01F14]
