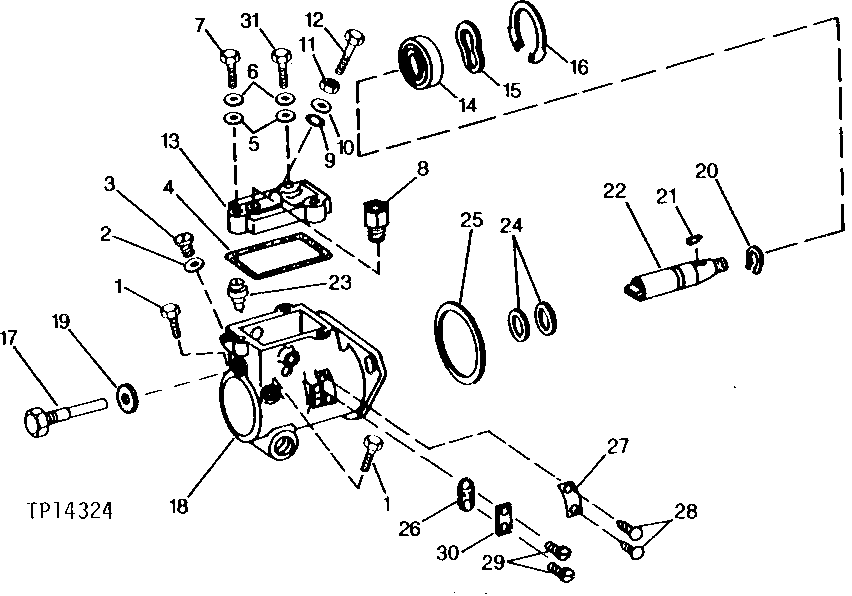

FUEL INJECTION PUMP HOUSING AND DRIVE GROUP (ROOSA-MASTER NO. DM4627ABE4012) [01F16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30714	2	BOLT	-
2	T11878	1	WASHER	-
3	T11930	1	SCREW	-
4	T11918	1	GASKET	(K)
5	T15715	3	WASHER	-
6	12H295	3	Lock Washer	0.190"
7	T15721	1	SCREW	-
8	R36535	1	CHECK VALVE	-
9	R34812	1	O-Ring	(K)
10	T17947	1	WASHER	-
11	T11921	1	NUT	-
12	T17953	1	CAP SCREW	-
13	R37139	1	COVER	-
14	AR69427	1	BALL BEARING	-
15	R54235	1	WASHER	-
16	R54230	1	RING	-
17	T11923	1	STUD	-
18	AR69428	1	HOUSING	-
19	T11943	1	WASHER	(K)
20	R57796	1	SNAP RING	-
21	M114270	1	Shaft Key	(SUB FOR R56424)
22	R57797	1	DRIVE SHAFT	-
23	AR102812	1	BLEED VALVE	(COLORED YELLOW)
23	AR102811	1	BLEED VALVE	(COLORED WHITE)
23	AR102810	1	BLEED VALVE	(COLORED BROWN)
23	AR102809	1	BLEED VALVE	(COLORED BLUE)
23	AR102808	1	BLEED VALVE	(COLORED BLACK)
23	AR102807	1	BLEED VALVE	(COLORED GREEN)
23	AR102806	1	BLEED VALVE	(COLORED RED)
23	AR102805	1	BLEED VALVE	(PLAIN)
24	AR72052	2	SEAL	(K)
25	R54229	1	SEAL	(K)
26	T11883	1	GASKET	(K)
27	T11875	1	IDENTIFICATION PLATE	-
28	T11876	2	SCREW	-
29	R54260	2	SCREW	-
30	T11882	1	COVER	-
31	R71851	2	SCREW	-

FUEL INJECTION PUMP HOUSING AND DRIVE GROUP (ROOSA-MASTER NO. DM4627ABE4012) [01F16]
