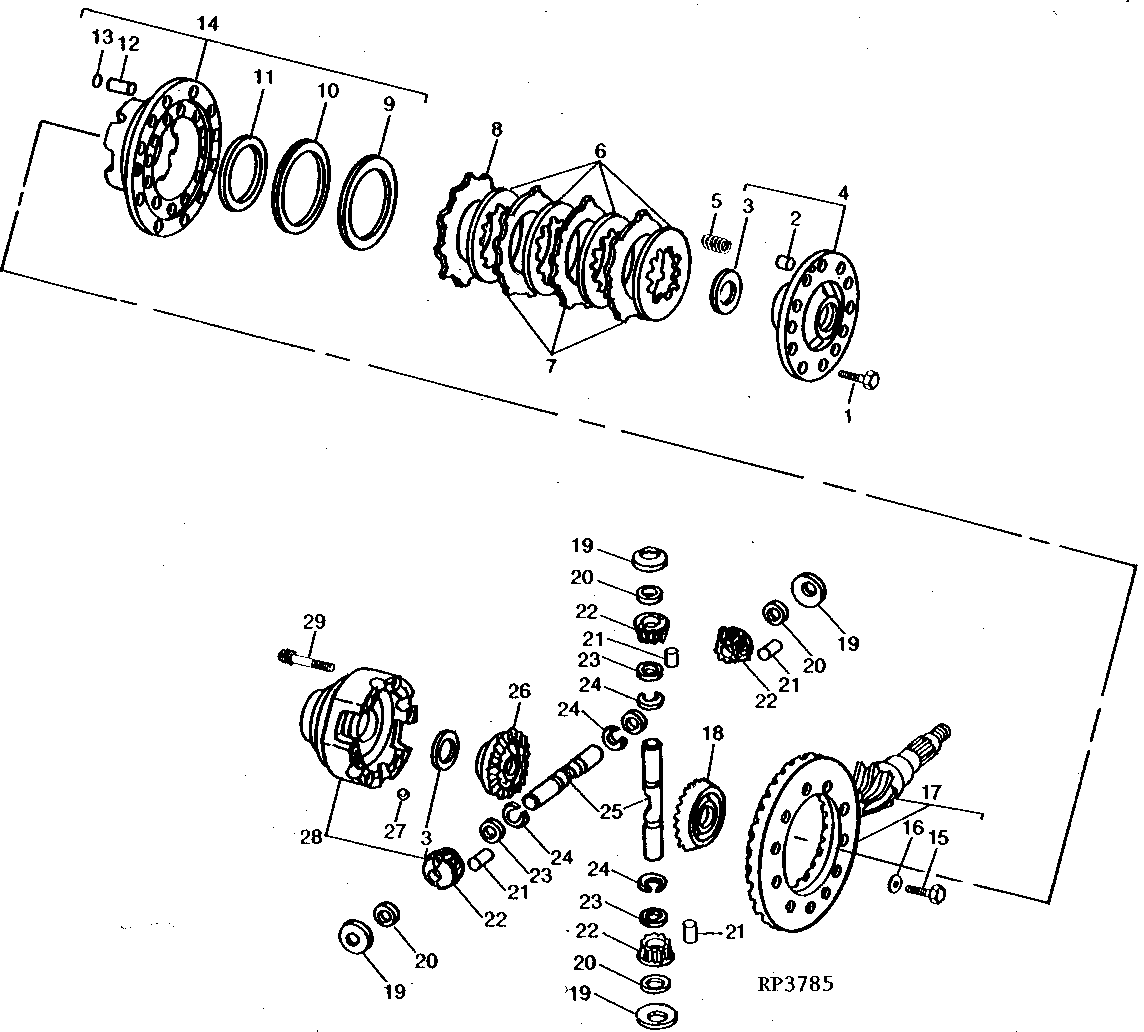

FRONT DIFFERENTIAL HOUSING (DIFFERENTIAL LOCK) [01B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R116064	12	CAP SCREW	(SUB FOR (12) R40236)
2	34H311	3	Spring Pin	1/4" X 7/8"
3	R93623	2	Thrust Washer	(SUB FOR R77145)
4	AR95455	1	COVER	(MARKED R64288) (SUB R98199 AND R93623)
5	R41770	3	Spring	-
6	AR86454	4	DISK WITH INNER SPLINE	(SUB (4) RE53823, R34857 AND (3) R34858)
7	R34858	3	Clutch Plate	-
8	R34857	1	Clutch Plate	-
9	R58775	1	Piston	-
10	R68615	1	O-Ring	-
11	R68616	1	Washer	-
12	R70532	1	BUSHING	(USE WITH R70011)
13	R60038	1	Packing	-
14	RE53706	1	HOUSING	(SUB FOR R70011)
15	R48787	12	Cap Screw	-
16	R48429	12	Washer	-
17	RE11399	1	GEAR	(SHAFT MARKED R41977 AND GEAR MARKED R44383) (SUB AR45732 AND RE50114)
18	R51970	1	BEVEL GEAR	-
19	R59460	4	Thrust Washer	-
20	R70112	4	Thrust Washer	-
21	R70115	104	Needle Roller	-
22	R68170	4	PINION	-
23	R70113	4	Thrust Washer	-
24	R70114	4	Snap Ring	-
25	R70111	2	Pinion Shaft	-
26	R51971	1	BEVEL GEAR	-
27	H871R	1	Ball	-
27	400R	1	Ball	-
28	RE53244	1	Housing	(MARKED R82197) (SUB FOR RE21029) (ALSO ORDER T105740, (12) 19H2563 AND RE53706)
29	R116211	8	Screw	(SUB FOR R52718)

FRONT DIFFERENTIAL HOUSING (DIFFERENTIAL LOCK) [01B14]
