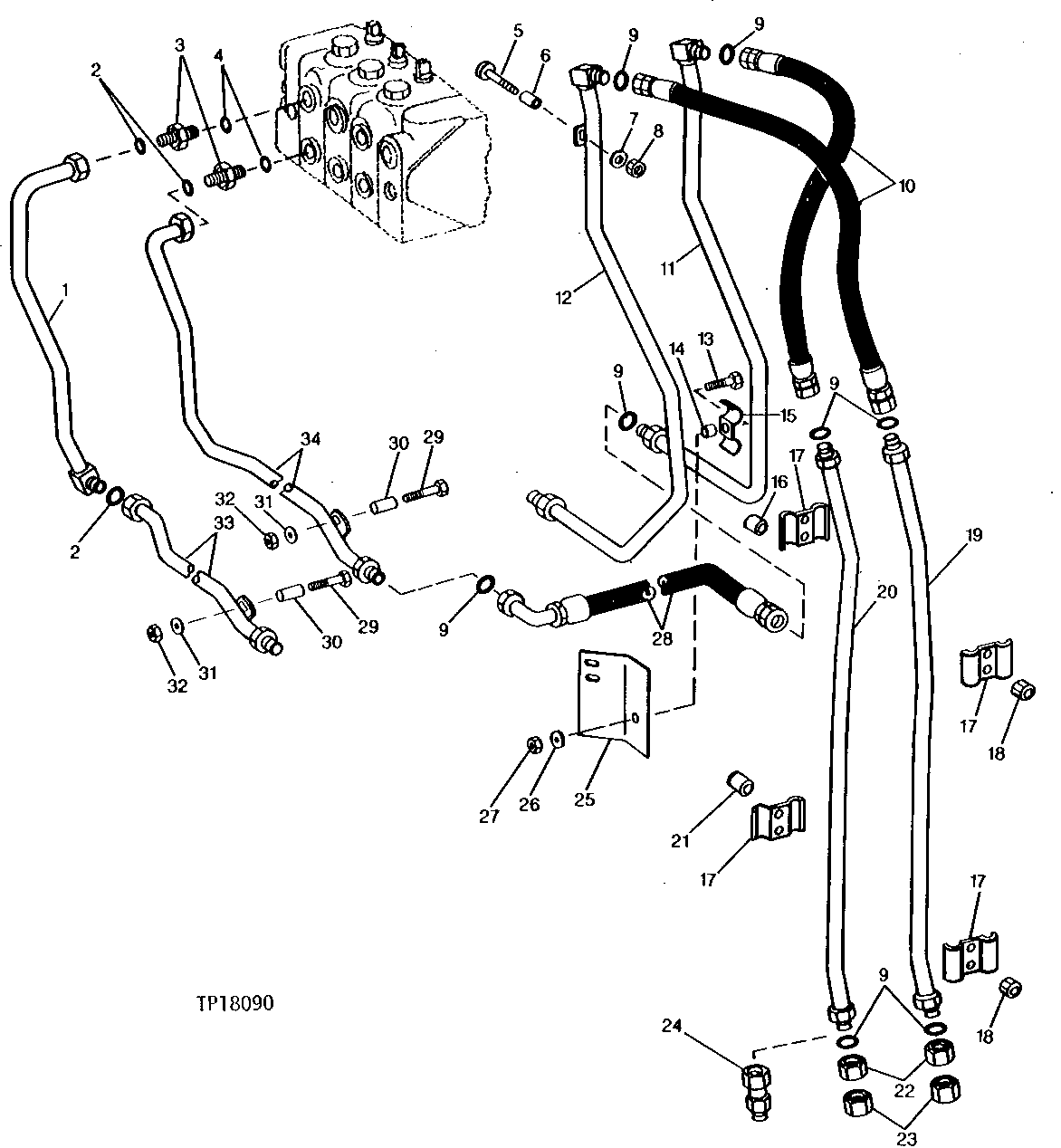

FELLER-BUNCHER SHEAR CONTROL VALVE HYDRAULICS (SERIAL NO. 513493- ) [03D03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT78403	1	OIL LINE	-
2	T78612	3	O-Ring	-
3	38H1196	2	Adapter Fitting	-
4	R29936	2	O-Ring	-
5	AT85065	1	WELD STUD	-
6	28H2553	1	BUSHING	0.742" X 1.050" X 1-1/8"
7	24H1850	1	Washer	17/32" X 1-1/4" X 0.180"
8	14H1040	1	Nut	1/2"
9	T76938	10	O-Ring	-
10	AT78399	2	HYDRAULIC HOSE - FABRICATE	1-7/16" X 791 MM (31-1/4") X 1-7/16"
11	AT83924	1	OIL LINE	-
12	AT83925	1	OIL LINE	-
13	19H3385	1	Cap Screw	1/2" X 1-1/8"
14	28H3067	1	Bushing	0.493" X 0.675" X 25/32"
15	T27607	1	CLAMP	-
16	T34734	2	BUSHING	-
17	T35868	4	CLAMP	-
18	K40014	4	Lock Nut	-
19	AT103353	1	OIL LINE	-
20	AT103352	1	OIL LINE	-
21	Z24862	2	Spacer	-
22	38H1419	2	Fitting	-
23	38H1358	2	Tube Nut	-
24	AT78413	2	ADAPTER FITTING	CONVERTS ORS FITTINGS TO 37° FLARE FITTINGS
25	T74279	1	BRACKET	-
26	24H1308	2	Washer	13/32" X 1" X 0.134"
27	14H812	2	NUT	3/8"
28	AT78400	2	HYDRAULIC HOSE - FABRICATE	1-7/16" X 832 MM (32-3/4") X 1-7/16"
29	19H2633	2	Cap Screw	3/8" X 1-1/2"
30	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
31	24H1682	2	Washer	13/32" X 7/8" X 0.120"
32	T11234	2	Lock Nut	-
33	AT78392	1	OIL LINE	-
34	AT78393	1	OIL LINE	-

FELLER-BUNCHER SHEAR CONTROL VALVE HYDRAULICS (SERIAL NO. 513493- ) [03D03]
