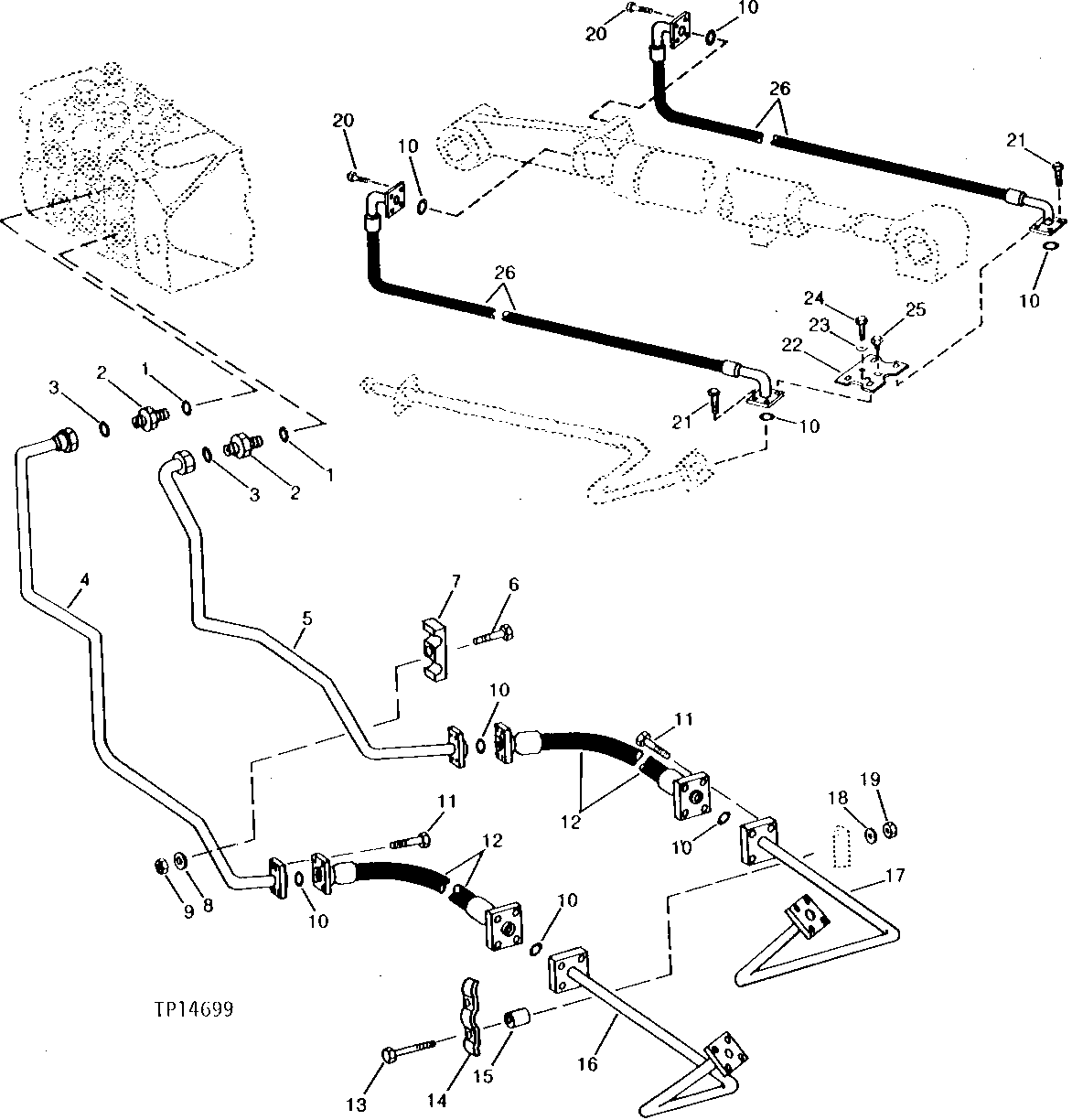

FELLER-BUNCHER CONTROL VALVE TO SHEAR TILT CYLINDER HYDRAULICS [03C21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	38H1164	2	Adapter Fitting	-
3	T76938	2	O-Ring	-
4	AT83024	1	OIL LINE	-
5	AT83027	1	OIL LINE	-
6	19H2732	1	Cap Screw	3/8" X 2-3/4"
7	T52978	1	Clamp	-
8	24H1308	1	Washer	13/32" X 1" X 0.134"
9	T11234	1	Lock Nut	-
10	H61355	8	O-RING	(SUB FOR U12037, THIS APPLICATION)
11	19H3385	16	Cap Screw	1/2" X 1-1/8"
12	AT61263	2	HYDRAULIC HOSE - FABRICATE	1" X 775 MM (30-1/2") X 1"
13	19H1726	1	Cap Screw	3/8" X 2-1/4"
14	T27021	1	CLAMP	-
15	28H1697	2	Spacer	0.493" X 0.675" X 3/4"
16	AT61275	1	OIL LINE	-
17	AT61269	1	OIL LINE	-
18	24H1308	2	Washer	13/32" X 1" X 0.134"
19	T54568	1	Lock Nut	3/8"
20	19H2545	8	CAP SCREW	3/8" X 1-3/8"
21	19H2545	4	CAP SCREW	3/8" X 1-3/8"
22	T40701	1	PLATE	-
23	24H1652	4	Washer	13/32" X 11/16" X 7/64"
24	19H3267	4	Cap Screw	3/8" X 1-5/8"
25	37H106	2	SCREW	-
26	AT61270	2	HYDRAULIC HOSE	1" X 1 332 MM (52-1/2") X 1"

FELLER-BUNCHER CONTROL VALVE TO SHEAR TILT CYLINDER HYDRAULICS [03C21]

Нет текстового описания
