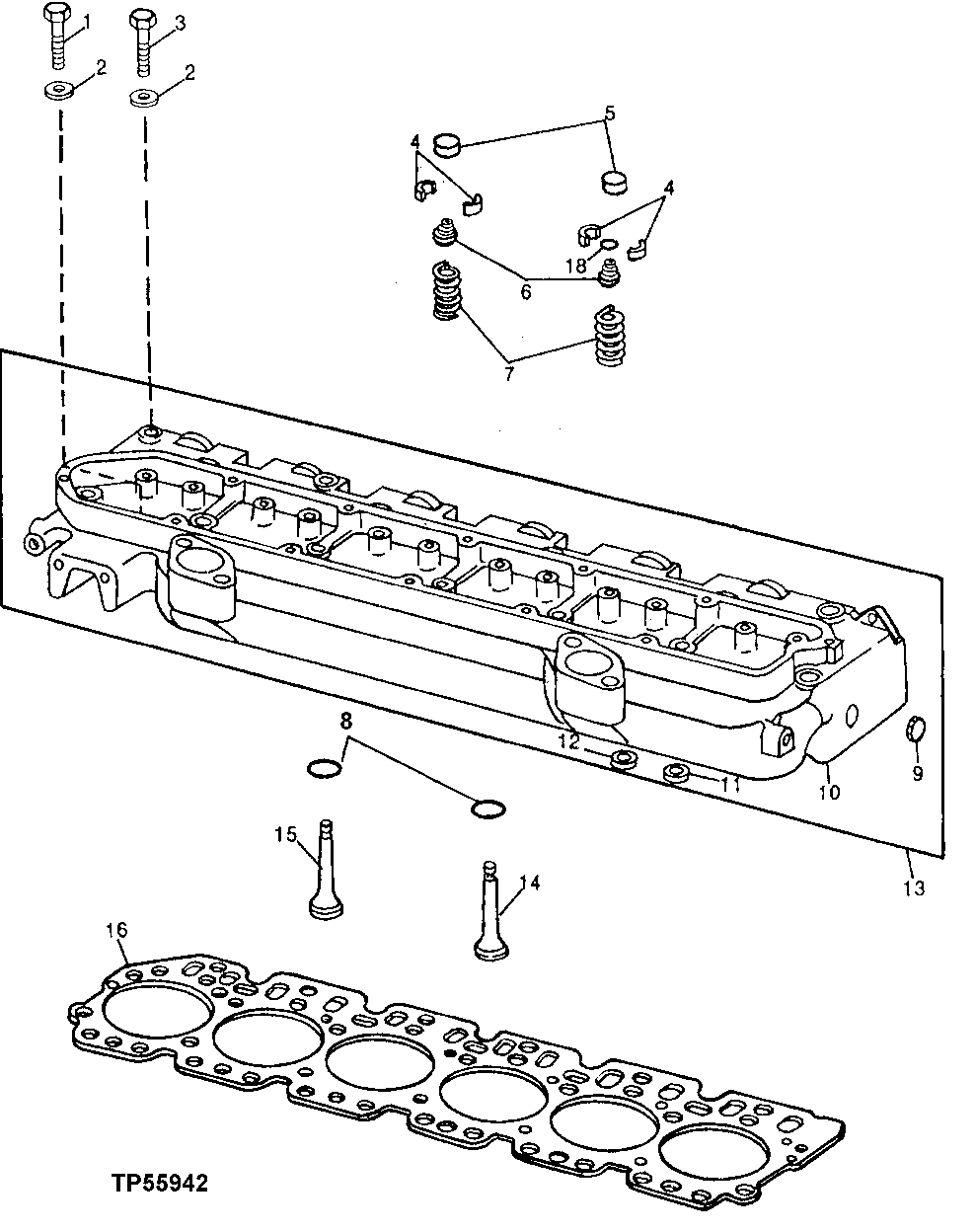

CYLINDER HEAD, HEAD GASKET AND VALVES [01F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R85363	6	Cap Screw	(SUB FOR R78558) 1/2" X 4-1/2"
1	R85363	6	Cap Screw	(SUB FOR T20182 AND R78558) 1/2" X 4-1/2"
2	T20168	26	Washer	(DO NOT USE WITH R85363)
3	R53223	20	CAP SCREW	1/2" X 4-1/4"
3	R85363	20	Cap Screw	(SUB FOR R78558) 1/2" X 4-1/2"
4	T20077	24	Retainer	-
5	T20129	12	Cap	-
6	RE11410	12	Rotator	-
7	R26125	12	Spring	-
8	R87627	1	O-RING	(SUB FOR R27976, THIS APPLICATION)
9	A3910R	1	PLUG	-
9	CD16284	1	Plug	-
10	-	1	Part 13	(SUB AR103292)
11	R73064	6	VALVE SEAT INSERT	INTAKE
12	R51734	6	VALVE SEAT INSERT	EXHAUST
13	AR103292	1	CYLINDER HEAD	(MARKED R61035)
14	R79624	6	EXHAUST VALVE	STANDARD, (SUB FOR R52252)
14	R79625	6	EXHAUST VALVE	0.08 MM (.003") OVERSIZE
14	R79626	6	EXHAUST VALVE	0.38 MM (.015") OVERSIZE
14	-	6	Part 20	( R79627 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE
15	R83071	6	INTAKE VALVE	STANDARD, (SUB FOR R72611)
15	R89223	6	INTAKE VALVE	0.08 MM (.003") OVERSIZE, (SUB FOR R76538 AND R88174) (ALSO ORDER R87627)
15	R89224	6	INTAKE VALVE	0.38 MM (.015") OVERSIZE, (SUB FOR R76540 AND R88175) (ALSO ORDER R87627)
15	-	6	Part 24	( R89225 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R76542 AND R88176) (ALSO ORDER R87627)
16	R91880	1	GASKET	(SUB FOR R59449 AND R80243)

CYLINDER HEAD, HEAD GASKET AND VALVES [01F05]
