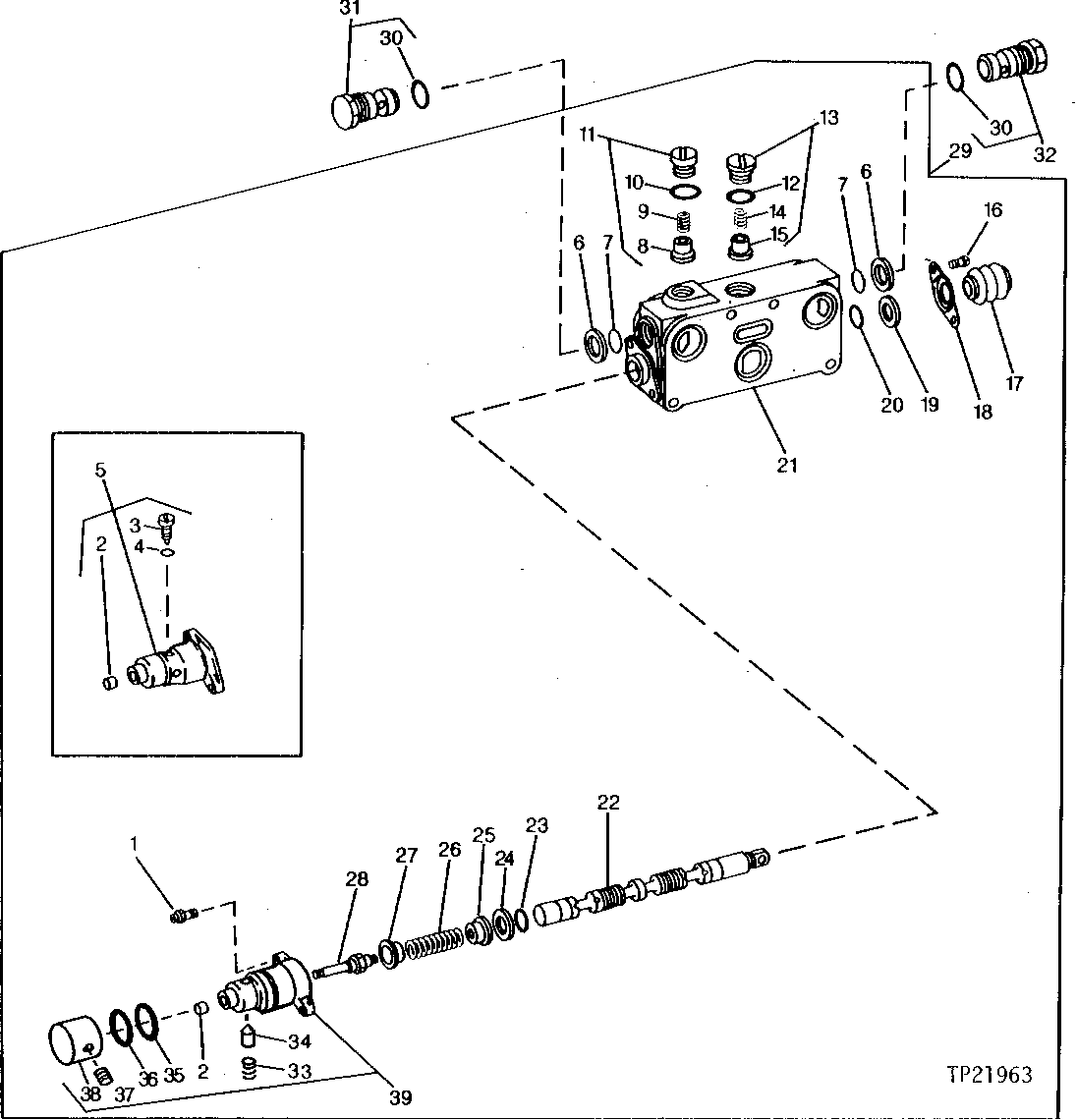

CONTROL VALVE BOOM SECTION (FOR USE WITH FELLER-BUNCHER) [03E03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T31036	2	SCREW	-
2	32243	1	Plug	-
3	AT73466	4	FITTING PLUG	END DETENT
4	R10093	4	O-Ring	RELEASE
5	AT79863	1	CAP	DETENT, (SUB AT103680)
6	T42800	2	BACK-UP RING	(K)
7	H21957	2	O-Ring	(K)
8	T32362	1	PLUNGER	-
9	N85304	1	SPRING	-
10	U40745	1	O-Ring	(K)
11	AT41728	1	FITTING PLUG	-
12	T74425	1	O-Ring	(K) (SUB FOR T42798)
13	AT47354	1	FITTING PLUG	-
14	T31041	1	SPRING	-
15	T31040	1	PLUNGER	-
16	21H1140	2	SCREW	1/4" X 3/8"
17	U44068	1	BOOT	DUST
18	T31038	1	RETAINER	-
19	T31037	1	WASHER	BREATHER
20	R495R	1	O-Ring	(SUB FOR T57248)
21	-	1	Part 21	(SUB AT79862)
22	-	1	Part 22	(SUB AT79862)
23	T57247	1	O-Ring	(K)
24	T31031	1	WASHER	-
25	T31032	1	ROUND RETAINER	SPOOL DEEP
26	T31033	1	EXTENSION SPRING	-
27	T31034	1	ROUND RETAINER	SPOOL SHALLOW
28	T31035	1	SCREW	SPOOL
29	AT79862	1	CONTROL VALVE	BOOM SECTION
30	P51079	2	O-Ring	(K)
31	AT30012	1	PLUG	-
32	AT104058	1	PRESSURE RELIEF VALVE	18 099 KFA (181 BAR) (2625 PSI) (SUB FOR AT63033)
33	T102726	4	COMPRESSION SPRING	-
34	W14650	4	Pawl	-
35	N31773	1	O-Ring	-
36	GG350-32067	1	O-RING	-
37	T102725	1	SET SCREW	-
38	T102723	1	CAM	-
39	AT103680	1	CAP	-

CONTROL VALVE BOOM SECTION (FOR USE WITH FELLER-BUNCHER) [03E03]
