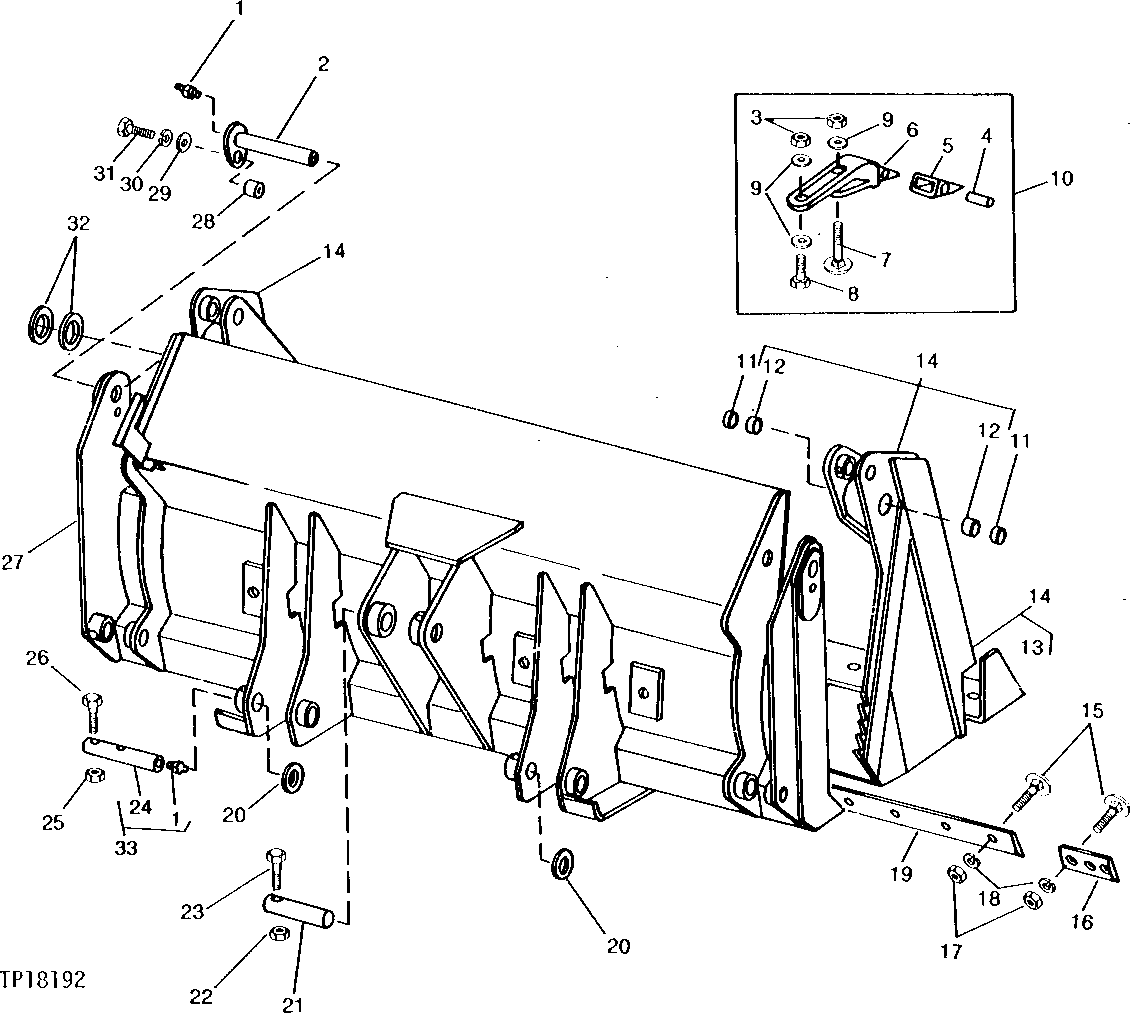

MULTI-PURPOSE BUCKET 1.34 M3 (1-3/4 CU. YARD) [03B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T162396	3	Lubrication Fitting	(SUB FOR JD7759 OR JD7798)
2	AT60867	2	PIN FASTENER	-
3	K40015	2	Lock Nut	-
4	TP160	1	Pin	(SUB FOR T25101)
5	T29887	1	TOOTH	-
6	-	1	Part 6	(SUB AT65136)
7	19H2641	1	Cap Screw	5/8" X 3-1/4"
8	19H1734	1	Cap Screw	5/8" X 2"
9	24M7241	3	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
10	-	7	Part 10	( AT65136 NO LONGER AVAILABLE) FOR USE WITH (1-3/4 YARD) 1.34 M3 MULTI-PURPOSE BUCKET AND (2 CU. YARD) 1.6 M3 BUCKET)
11	T63053	8	SEAL	-
12	T63051	4	BUSHING	-
13	T65841	1	DURA-MAX TM CUTTING EDGE	-
14	AT62393	1	LOADER BUCKET	-
15	10H1047	13	Bolt	3/4" X 2-1/4"
16	T31148	2	CUTTING EDGE	-
17	14H794	13	Nut	3/4"
18	12H236	13	Lock Washer	3/4"
19	T65842	1	CUTTING EDGE	-
20	T63795	1	Washer	-
21	T62887	1	PIN FASTENER	-
22	U44915	1	Lock Nut	(SUB FOR BP14495)
23	19H3353	1	Cap Screw	5/8" X 5"
24	AT60970	2	PIN FASTENER	-
25	BP12214	2	Lock Nut	-
26	19H3586	2	Cap Screw	1/2" X 4-1/4"
27	AT62380	1	MULTI-PURPOSE BUCKET	-
28	28H1596	2	WASHER	0.546" X 0.840" X 5/16"
29	24H1162	2	Washer	17/32" X 1-1/4" X 0.060"
30	12H301	2	Lock Washer	1/2"
31	19H2472	2	Cap Screw	1/2" X 1"
32	24H1595	4	Washer	2-1/16" X 3" X 0.075"
..	AT62396	1	MULTI-PURPOSE BUCKET	(1-3/4 CU. YARD) 1.34 M3 (INCLUDES BLADE (CLAM, CUTTING EDGES, CLAM CYLINDERS, PINS, CLAM CYLINDER HYDRAULICS AND MISCELLANEOUS HARDWARE)

MULTI-PURPOSE BUCKET 1.34 M3 (1-3/4 CU. YARD) [03B08]
