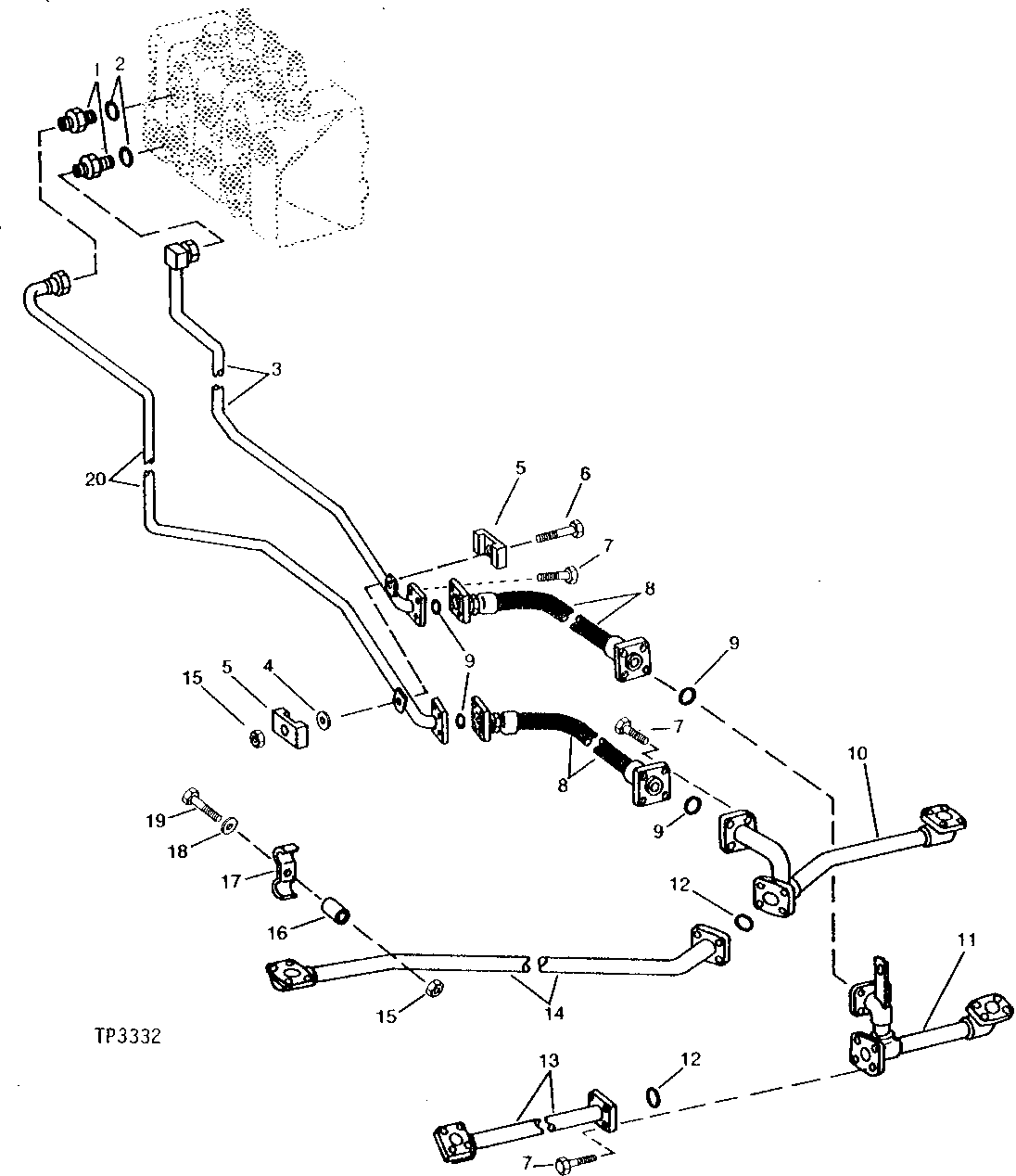

LOADER CONTROL VALVE TO BOOM CYLINDER HYDRAULICS (SERIAL NO. -506345) (TWO-SPOOL SMALL VALVE) (SERIAL NO. -506375) (THREE-SPOOL SMALL VALVE) [03D09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T26767	2	Fitting	-
2	R29936	2	O-Ring	-
3	AT68173	1	OIL LINE	(CYLINDER ROD END CIRCUIT)
4	24H1682	1	Washer	13/32" X 7/8" X 0.120"
5	T71348	1	CLAMP	(WITHOUT AUXILIARY FUNCTION)
5	T71348	2	CLAMP	(WITH AUXILIARY FUNCTION)
6	19H2549	1	Cap Screw	3/8" X 1-7/8"
6	19H2732	1	Cap Screw	3/8" X 2-3/4"
7	19H3385	24	Cap Screw	1/2" X 1-1/8"
8	AT61263	2	HYDRAULIC HOSE - FABRICATE	1" X 775 MM (30-1/2") X 1"
9	U12037	4	O-Ring	-
10	AT61265	1	OIL LINE	(CYLINDER HEAD END CIRCUIT)
11	AT61267	1	TUBE	(CYLINDER ROD END CIRCUIT)
12	A4730R	2	O-Ring	-
13	AT39299	1	OIL LINE	(CYLINDER ROD END CIRCUIT)
14	AT61266	1	OIL LINE	(CYLINDER HEAD END CIRCUIT)
15	T54968	3	BUSHING	(SUB FOR T11234, THIS APPLICATION)
16	28H1697	2	Spacer	3/8" X 3/4"
17	T40705	2	Clamp	-
18	24H1305	2	Washer	13/32" X 13/16" X 0.065"
19	19H3267	2	Cap Screw	3/8" X 1-5/8"
20	AT68175	1	OIL LINE	(CYLINDER HEAD END CIRCUIT)

LOADER CONTROL VALVE TO BOOM CYLINDER HYDRAULICS (SERIAL NO. -506345) (TWO-SPOOL SMALL VALVE) (SERIAL NO. -506375) (THREE-SPOOL SMALL VALVE) [03D09]
