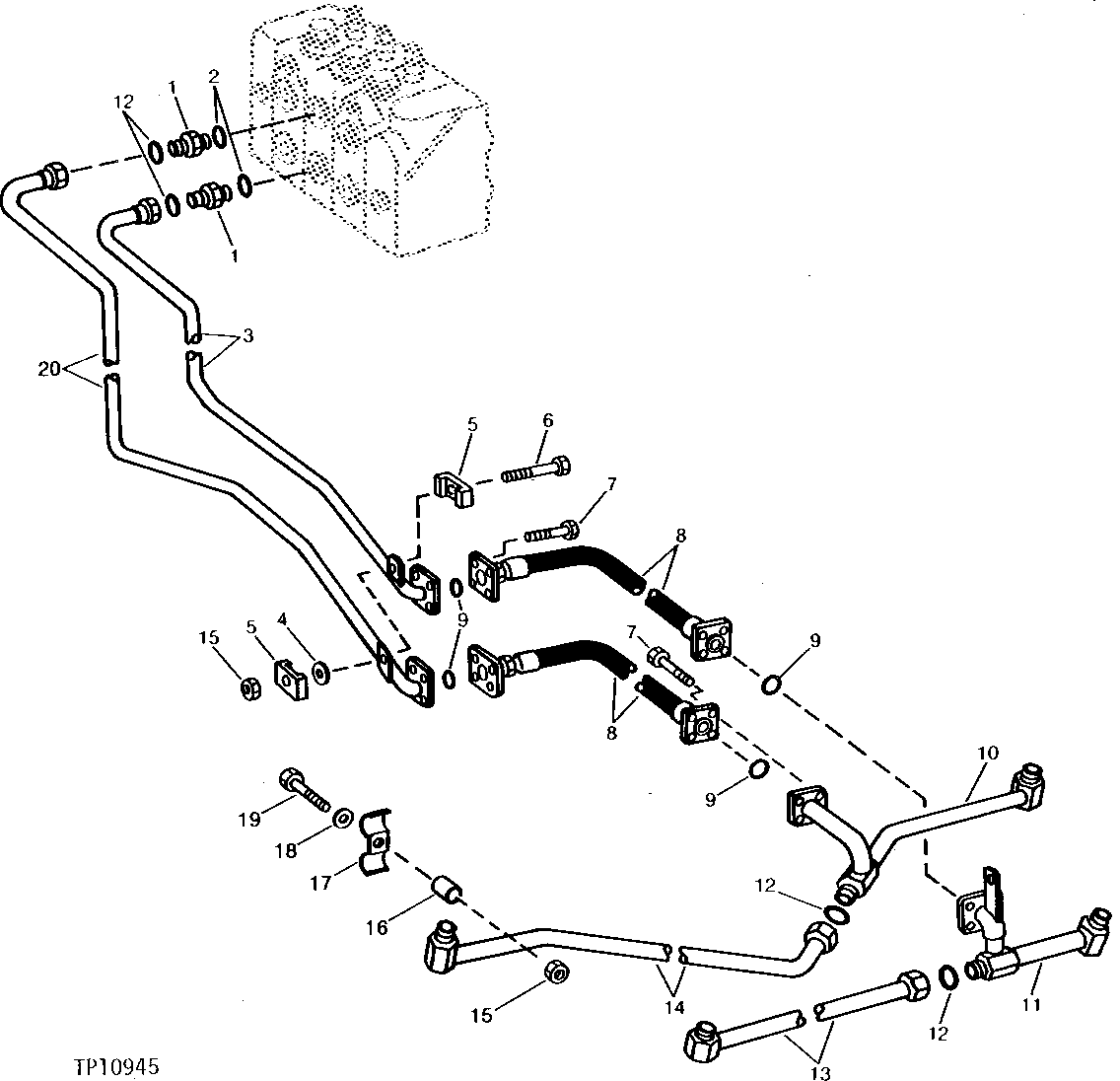

LOADER CONTROL VALVE TO BOOM CYLINDER HYDRAULICS (FOR USE WITH FELLER BUNCHER) [03D13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1216	2	Adapter Fitting	-
2	R29936	2	O-Ring	-
3	AT78388	1	OIL LINE	(CYLINDER ROD END CIRCUIT)
4	24H1682	1	Washer	13/32" X 7/8" X 0.120", (WITHOUT AUXILIARY FUNCTION)
5	T71348	1	CLAMP	(WITHOUT AUXILIARY FUNCTION)
5	T71348	2	CLAMP	(WITH AUXILIARY FUNCTION)
6	19H2549	1	Cap Screw	3/8" X 1-7/8", (WITHOUT AUXILIARY FUNCTION)
6	19H2732	1	Cap Screw	3/8" X 2-3/4", (WITH AUXILIARY FUNCTION)
7	19H3385	24	Cap Screw	1/2" X 1-1/8"
8	AT61263	2	HYDRAULIC HOSE - FABRICATE	-
9	U12037	4	O-Ring	-
10	AT78408	1	OIL LINE	(CYLINDER HEAD END CIRCUIT)
11	AT78406	1	OIL LINE	(CYLINDER ROD END CIRCUIT)
12	T76938	4	O-Ring	-
13	AT78407	1	OIL LINE	(CYLINDER ROD END CIRCUIT)
14	AT78409	1	OIL LINE	(CYLINDER HEAD END CIRCUIT)
15	T54568	8	Lock Nut	(SUB FOR T11234, THIS APPLICATION)
16	28H1697	2	Spacer	3/8" X 3/4"
17	T40705	2	Clamp	-
18	24H1305	2	Washer	13/32" X 13/16" X 0.065"
19	19H3267	2	Cap Screw	3/8" X 1-5/8"
20	AT78389	1	OIL LINE	(CYLINDER HEAD END CIRCUIT)

LOADER CONTROL VALVE TO BOOM CYLINDER HYDRAULICS (FOR USE WITH FELLER BUNCHER) [03D13]
