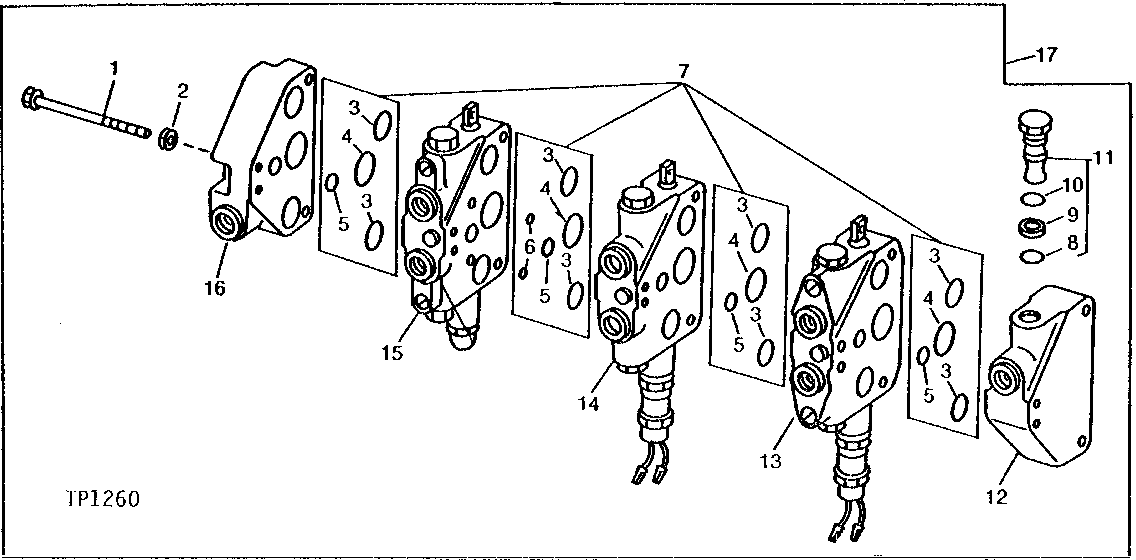

LOADER CONTROL VALVE ASSEMBLY (TWO OR THREE-SPOOL) (SERIAL NO. -506345) (TWO-SPOOL) (SERIAL NO. -506375) (THREE-SPOOL) [03E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T42794	4	CAP SCREW	(TWO-SPOOL VALVE)
1	T27646	4	BOLT	(THREE-SPOOL VALVE)
2	12H293	4	Lock Washer	7/16"
3	-	8	Part 4	(K1) (SUB AT83265) (SUB FOR U15973, THIS APPLICATION)
4	-	4	Part 5	(K1) (SUB AT83265) (SUB FOR U15975, THIS APPLICATION)
5	-	4	Part 6	(K1) (SUB AT83265) (SUB FOR U15974, THIS APPLICATION)
6	T81686	2	O-Ring	(K1) (SUB FOR T36492, THIS APPLICATION)
7	AT83265	1	Kit	(K2) BETWEEN SECTION O-RING, (SUB FOR AT41722)
8	32240	1	O-Ring	(K2)
9	U40729	1	Back-Up Ring	(K2)
10	P51079	1	O-Ring	(K2)
11	AT63037	1	PRESSURE RELIEF VALVE	(181 BAR) (2625 PSI)
12	T66194	1	PLATE	-
13	AT61817	1	SPOOL VALVE	BUCKET
14	AT61815	1	SOLENOID HYDRAULIC VALVE	BOOM
15	AT35433	1	SPOOL VALVE	FOUR-WAY
16	T66193	1	PLATE	-
17	AT61818	1	CONTROL VALVE	(USE IF AVAILABLE) (THREE-SPOOL)
17	AT61814	1	CONTROL VALVE	(USE IF AVAILABLE) (TWO-SPOOL)

LOADER CONTROL VALVE ASSEMBLY (TWO OR THREE-SPOOL) (SERIAL NO. -506345) (TWO-SPOOL) (SERIAL NO. -506375) (THREE-SPOOL) [03E06]
