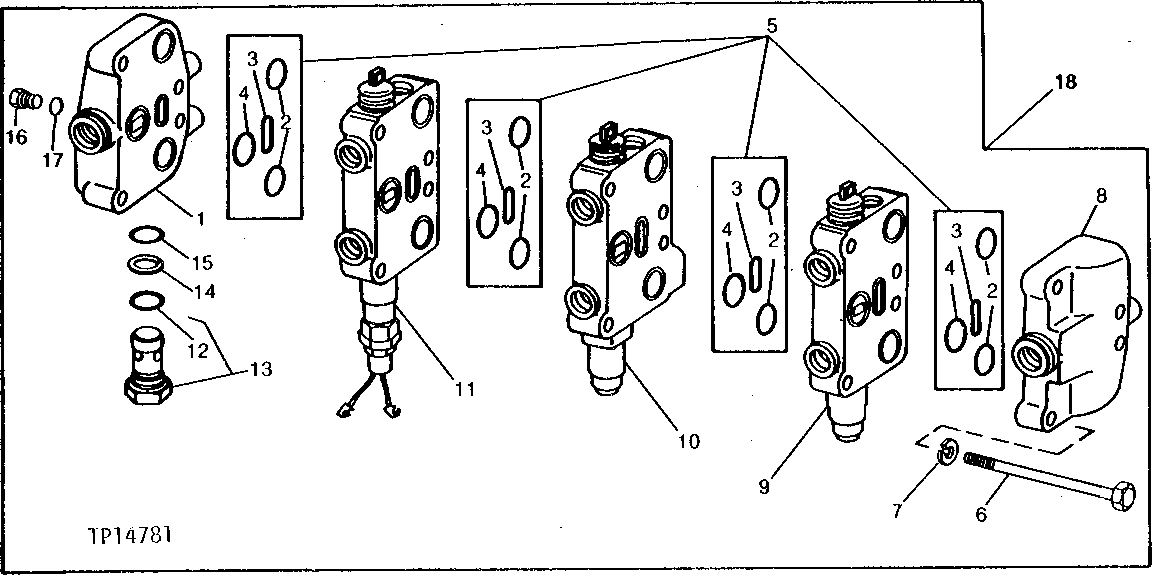

LOADER CONTROL VALVE ASSEMBLY (THREE-SPOOL) (FOR USE WITH FELLER-BUNCHER) (SERIAL NO. 503345- ) [03F01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T81690	1	PLATE	-
1	T50267	1	PLATE	PORT, (SUB T81690, AH63282 AND R28782)
2	-	8	Part 3	(K) (SUB FOR T31029, THIS APPLICATION) ( T81688 USE IF AVAILABLE)
3	-	4	Part 4	(K) (SUB FOR T38652, THIS APPLICATION) ( T81687 USE IF AVAILABLE)
4	-	4	Part 5	(K) (SUB FOR U44062, THIS APPLICATION) ( T81689 USE IF AVAILABLE)
5	AT83266	1	KIT	(K) BETWEEN SECTION SEAL, (SUB FOR AT41736, THIS APPLICATION)
6	T31049	4	CAP SCREW	-
7	12H293	4	Lock Washer	7/16"
8	T50268	1	PLATE	PORT OUTLET
9	AT30016	1	SPOOL VALVE	BUCKET SECTION
10	AT79862	1	CONTROL VALVE	BOOM SECTION
11	AT79864	1	VALVE	AUXILIARY SECTION
12	P51079	1	O-Ring	-
13	AT104060	1	PRESSURE RELIEF VALVE	20 684 KPA (207 BAR) (3 000 PSI) (SUB FOR AT60428)
14	T42800	1	BACK-UP RING	-
15	H21957	1	O-Ring	-
16	AH63282	1	FITTING PLUG	-
17	R28782	1	O-Ring	-
18	AT78411	1	CONTROL VALVE	(SUB AT83267)
18	AT83267	1	CONTROL VALVE	-

LOADER CONTROL VALVE ASSEMBLY (THREE-SPOOL) (FOR USE WITH FELLER-BUNCHER) (SERIAL NO. 503345- ) [03F01]
