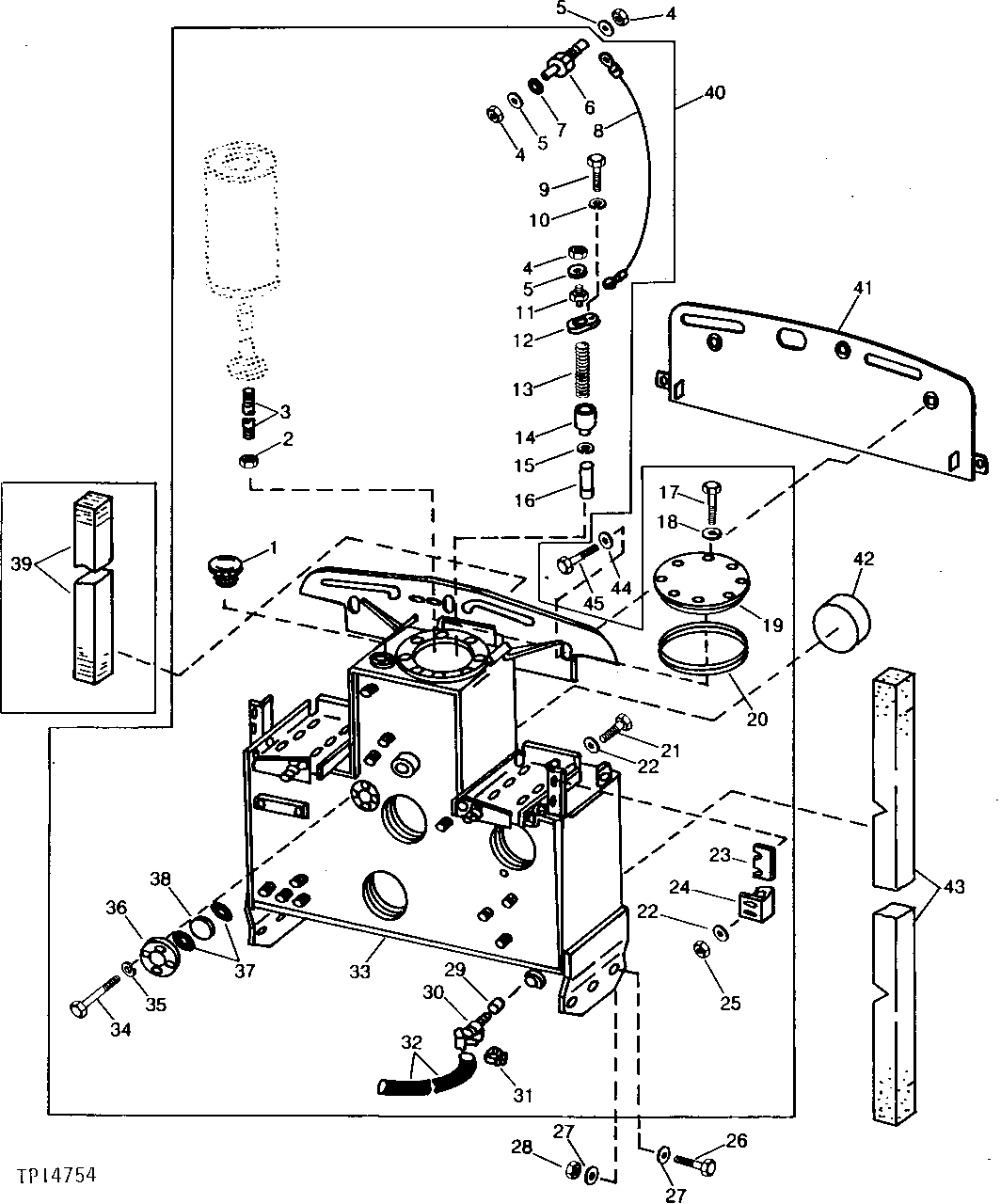

HYDRAULIC SUMP TANK AND RELIEF VALVES [03C01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT84988	1	FILLER CAP	(SUB FOR AU14021)
2	14H886	1	Nut	9/16"
3	T27000	1	STUD	-
4	14H631	3	Nut	0.190"
5	24H1283	3	Washer	7/32" X 1/2" X 0.049"
6	AT39267	1	PLUG	-
7	R26375	1	O-Ring	-
8	AT62403	1	WIRING LEAD	(SUB FOR AT39268)
9	19H1849	1	Cap Screw	5/16" X 1-1/4"
10	12H303	2	Lock Washer	5/16"
11	AR40795	1	TOUCH SWITCH	-
12	T40653	1	STRAP	-
13	T64687	2	SPRING	-
14	T40651	1	PISTON	-
15	T20954	1	SNAP RING	(USE WITH T40652)
16	T78552	1	STEM	WITHOUT SNAP RING GROOVE (SUB FOR T40652 WITH SNAP RING GROOVE)
17	19H2676	8	Cap Screw	3/8" X 1"
18	12H304	8	Lock Washer	3/8"
19	T26991	1	COVER	-
20	T26990	1	WASHER	SEALING
21	19H2127	4	Cap Screw	5/16" X 7/8"
22	24H1622	8	Washer	3/8" X 7/8" X 0.120"
23	T65868	1	STRAP	-
24	T65867	2	CHANNEL	-
25	M60405	4	Flange Nut	-
26	19H2993	6	Cap Screw	1/2" X 1-1/2"
27	24H1850	12	Washer	17/32" X 1-1/4" X 0.180"
28	14H1040	6	Nut	1/2"
29	15H619	1	Pipe Bushing	3/8" X 3/4"
30	AT169553	1	DRAIN VALVE	(SUB FOR AT169553, THIS APPLICATION)
31	AR21837	1	Clamp	-
32	T64688	1	Hose	711 MM LONG (1/16" X 28")
33	-	1	Part 33	(SUB AT74184)
34	21H1300	4	SCREW	0.190" X 3/8"
35	12H246	4	LOCK WASHER	0.190"
36	U13551	1	WASHER	-
37	U10289	2	O-Ring	-
38	U13425	1	WINDOWPANE	-
39	T64690	1	FOAM PAD	-
40	AT61430	1	HYDRAULIC RESERVOIR	(SUB AT74184, AT54837, AT81124 AND R78081)
40	AT74184	1	RESERVOIR	-
41	AT81120	1	SHIELD	(USE IF AVAILABLE) (SUB AT81121)
41	AT81121	1	SHIELD	-
42	T80598	3	ISOLATOR	-
43	T80597	1	ISOLATOR	-
44	24H1136	3	Washer	11/32" X 11/16" X 0.065"
45	19H2664	3	Cap Screw	5/16" X 3/4"

HYDRAULIC SUMP TANK AND RELIEF VALVES [03C01]
