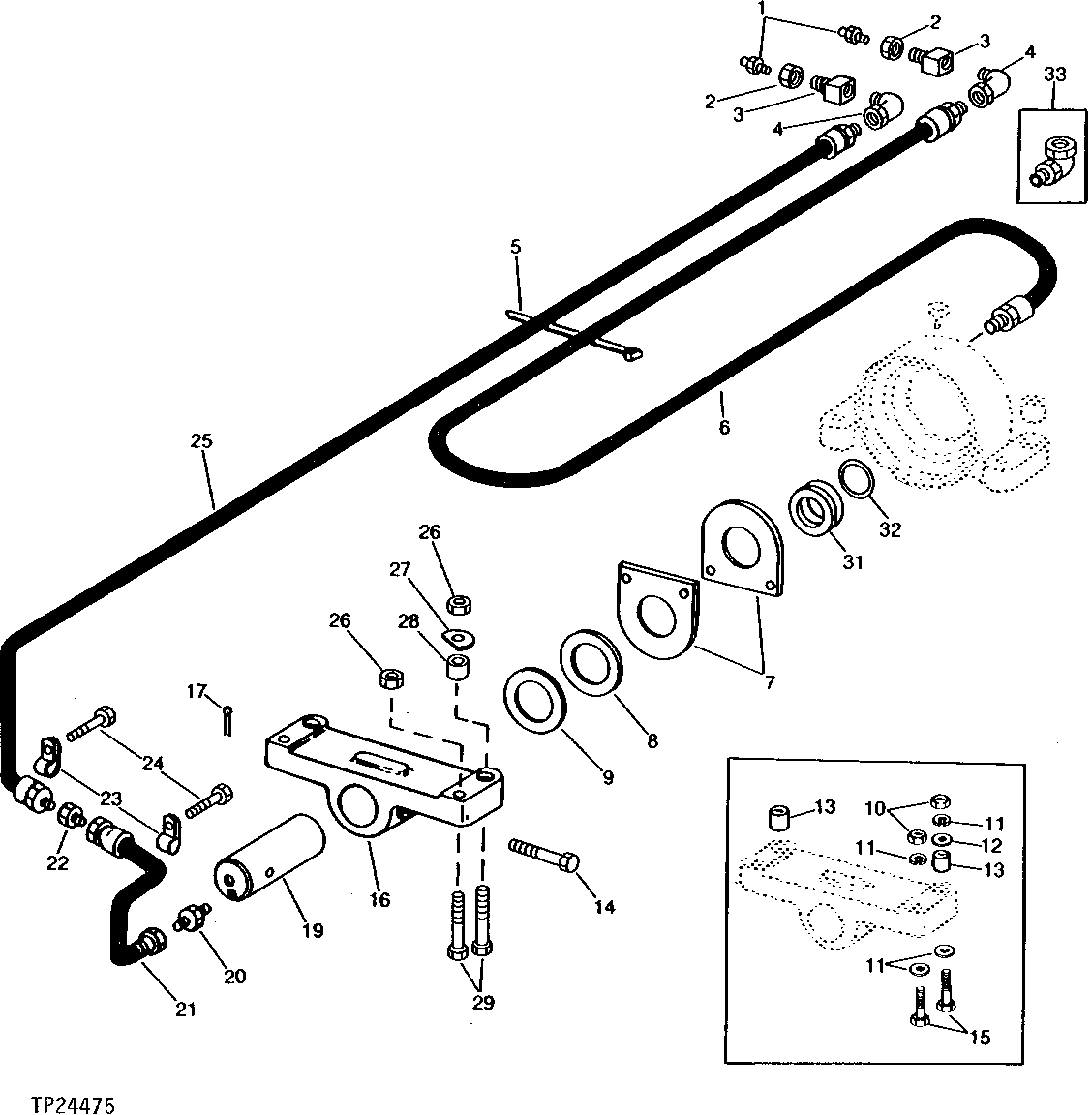

DIFFERENTIAL SUPPORTS AND LUBRICATION LINES [01B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7797	2	Lubrication Fitting	-
2	E12379	2	Nut	-
3	R36311	2	Fitting	-
4	T56112	2	Elbow Fitting	-
5	R44302	4	Tie Band	-
6	AT53541	1	Hydraulic Hose	1/8" X 1 490 MM (58-3/4") X 1/8"
7	T68617	2	PLATE	THRUST
8	T57548	1	SHIM	-
9	T27125	1	WASHER	-
10	K40015	4	Lock Nut	-
11	24M7241	8	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
12	-	2	Part 12	( T24463 NO LONGER AVAILABLE)
13	T20431	2	BUSHING	-
14	T27515	1	BOLT	-
15	19H2726	4	Cap Screw	HS, SAE 8, 5/8" X 4"
16	T68599	1	SUPPORT	OSCIULLATING, REAR
16	T73466	1	SUPPORT	-
17	11M7015	1	Cotter Pin	3.200 X 25 MM
18	14H994	1	NUT	SLOTTED, 1/2"
19	AT86424	1	PIN FASTENER	(SUB FOR T65337)
20	R27346	1	Fitting	-
21	AT64883	1	LINE	GREASE
22	T68040	1	ADAPTER FITTING	37°
23	T74410	2	Clamp	(SUB FOR T14264, THIS APPLICATION)
23	T24957	2	CLAMP	-
24	19H2021	2	Cap Screw	3/8" X 5/8"
25	AT64884	1	Hydraulic Hose	1/8" X 2 000 MM (78-3/4") X 1/8"
26	14M7300	4	Flange Nut	M20
27	T30009	2	WASHER	-
28	30251	2	Bushing	-
29	19M7969	4	Cap Screw	M20 X 100
30	24M7242	1	Washer	-
31	AA10570	1	SEAL	REAR
32	A5598R	1	O-Ring	REAR
33	T56112	1	Elbow Fitting	(NO LONGER USED)

DIFFERENTIAL SUPPORTS AND LUBRICATION LINES [01B10]
