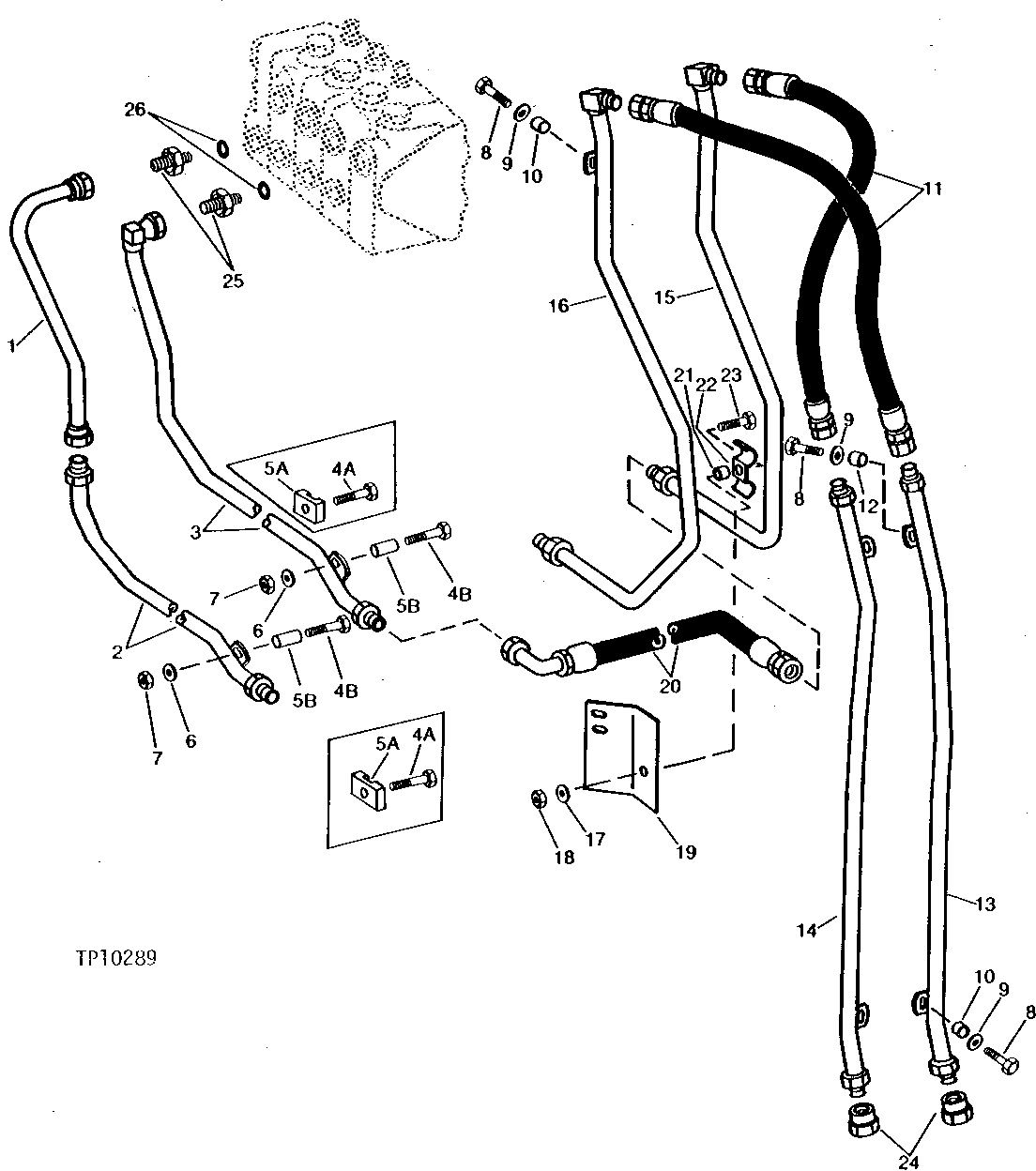

AUXILIARY LOADER CONTROL VALVE HYDRAULICS (WITH TREE SHEAR) (SERIAL NO. -503344) [03E01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT71903	1	LINE	-
2	AT71904	1	LINE	-
3	AT71905	1	LINE	-
6	24H1682	2	Washer	13/32" X 7/8" X 0.120"
7	T11234	2	Lock Nut	-
8	19H3579	2	Cap Screw	1/2" X 1-3/8"
9	24H1850	2	Washer	17/32" X 1-1/4" X 0.180"
10	T55707	2	BUSHING	-
11	AT71908	2	HYDRAULIC HOSE - FABRICATE	1-5/16" X 869 MM (34-1/4") X 1-5/16"
12	T74282	1	BUSHING	-
13	AT71907	1	LINE	-
14	AT71906	1	LINE	-
15	AT71902	1	LINE	-
16	AT71901	1	LINE	-
17	24H1308	1	Washer	13/32" X 1" X 0.134"
18	14H1076	1	Nut	3/8"
19	T74279	1	BRACKET	-
20	AT71900	2	HYDRAULIC HOSE - FABRICATE	1-5/16" X 882 MM (34-3/4") X 1-5/16"
21	28H1523	1	Bushing	0.493" X 0.675" X 13/16"
22	T27607	1	CLAMP	TUBE
23	19H3065	1	Cap Screw	3/8" X 2"
24	U45826	2	Fitting	-
25	T49207	2	ADAPTER FITTING	-
26	R29936	2	O-Ring	-
4A	19H1726	2	Cap Screw	3/8" X 2-1/4", (SUB FOR 19H1819, THIS APPLICATION)
4B	19H2458	2	Cap Screw	3/8" X 3"
5A	T71348	2	CLAMP	-
5B	28H3381	2	Spacer	0.493" X 0.675" X 5/8"

AUXILIARY LOADER CONTROL VALVE HYDRAULICS (WITH TREE SHEAR) (SERIAL NO. -503344) [03E01]
