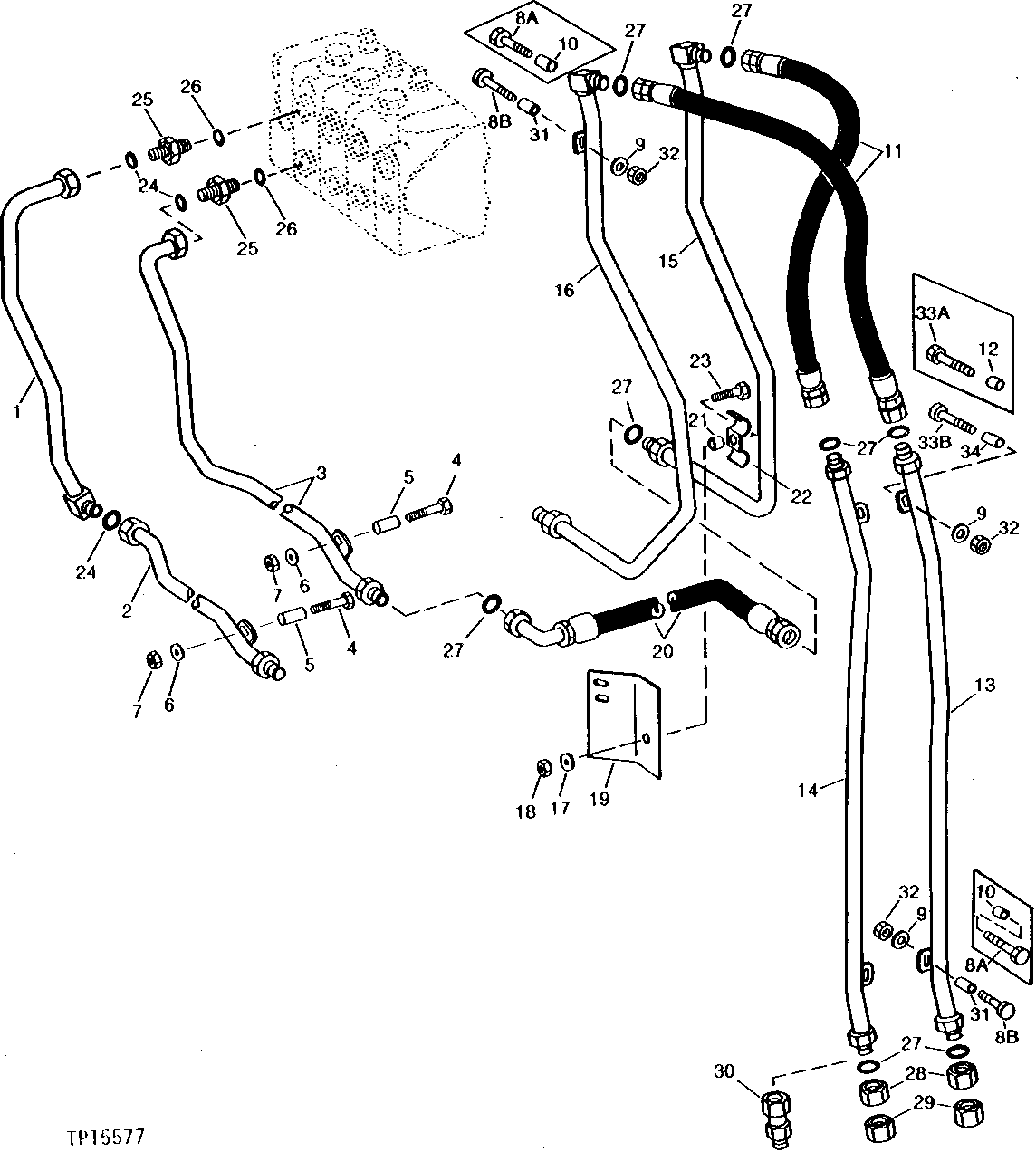

AUXILIARY LOADER CONTROL VALVE HYDRALICS (FOR USE WITH FELLER BUNCHER) (SERIAL NO. 503345- ) [03E03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT78403	1	OIL LINE	-
2	AT78392	1	OIL LINE	-
3	AT78393	1	OIL LINE	-
4	19H2458	2	Cap Screw	3/8" X 3"
5	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
6	24H1682	2	Washer	13/32" X 7/8" X 0.120"
7	T11234	2	Lock Nut	-
9	24H1850	2	Washer	17/32" X 1-1/4" X 0.180"
10	T55707	2	BUSHING	-
11	AT78399	2	HYDRAULIC HOSE - FABRICATE	1-7/16" X 791 MM (31-1/4") X 1-7/16"
12	T74282	1	BUSHING	-
13	AT78398	1	OIL LINE	-
14	AT78397	1	OIL LINE	-
15	AT78396	1	OIL LINE	-
16	AT78395	1	OIL LINE	-
17	24H1308	1	Washer	13/32" X 1" X 0.134"
18	14H812	1	NUT	3/8"
19	T74279	1	BRACKET	-
20	AT78400	2	HYDRAULIC HOSE - FABRICATE	1-7/16" X 832 MM (32-3/4") X 1-7/16"
21	28H1523	1	Bushing	0.493" X 0.675" X 13/16"
22	T27607	1	CLAMP	TUBE
23	19H3065	1	Cap Screw	3/8" X 2"
24	T78612	3	O-Ring	-
25	38H1196	2	Adapter Fitting	-
26	R29936	2	O-Ring	-
27	T76938	8	O-Ring	-
28	38H1419	2	Fitting	(SUB FOR 38H1143)
29	38H1358	2	Tube Nut	-
30	AT78413	2	ADAPTER FITTING	(CONVERTS ORS FITTINGS TO 37° FLARE FITTINGS)
31	28H2553	2	BUSHING	0.742" X 1.050" X 1-1/8"
32	14H1040	3	Nut	1/2", (USE WITH AT85065 AND AT85060)
34	28H1973	1	Bushing	0.824" X 1.050" X 1-3/4"
8A	19H3579	2	Cap Screw	1/2" X 1-3/8"
8B	AT85065	2	WELD STUD	-
33A	19H2508	1	CAP SCREW	1/2" X 1-3/8"
33B	AT85060	1	WELD STUD	-

AUXILIARY LOADER CONTROL VALVE HYDRALICS (FOR USE WITH FELLER BUNCHER) (SERIAL NO. 503345- ) [03E03]
