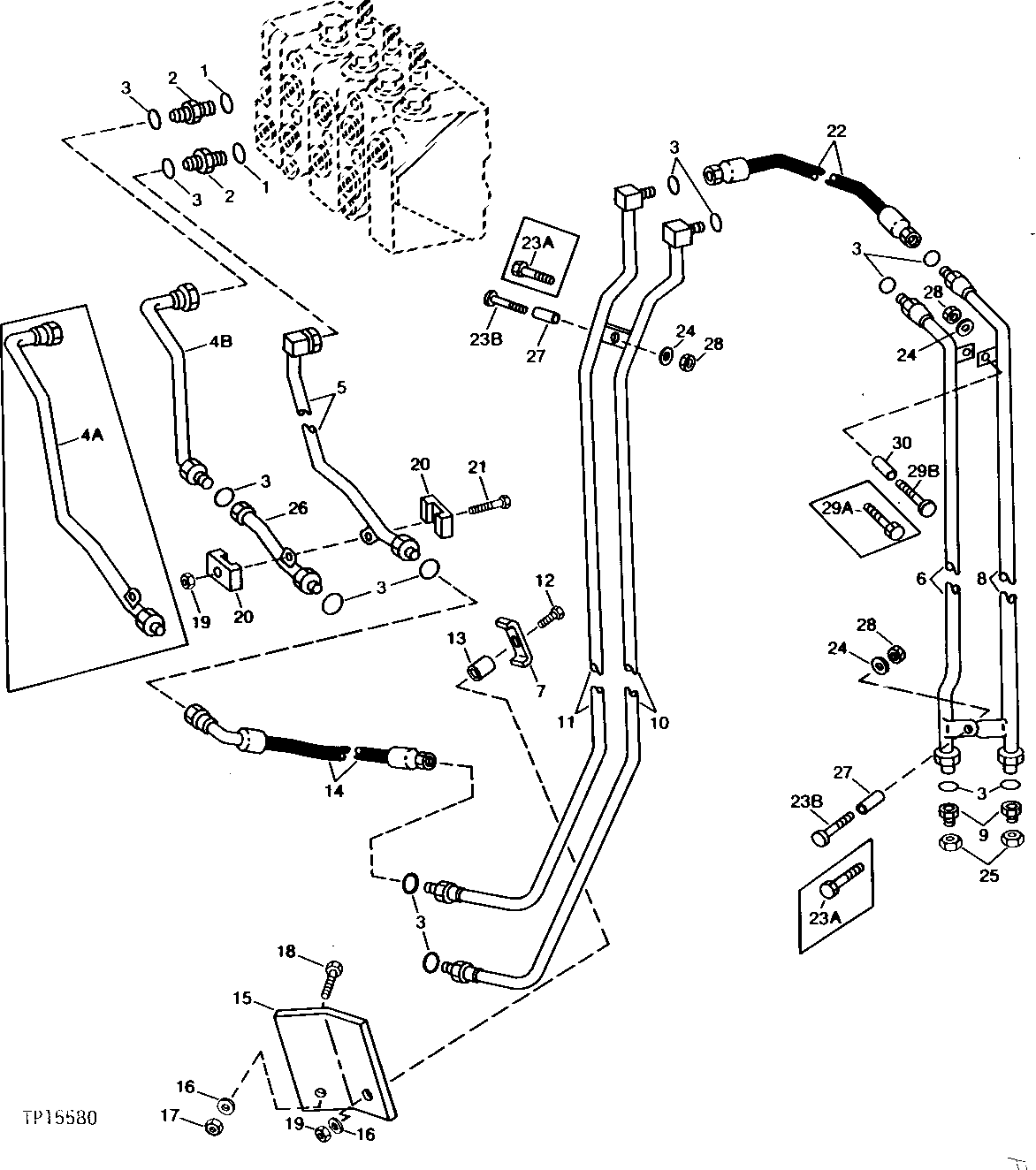

AUXILIARY CONTROL VALVE HYDRAULICS (LARGE VALVE WITH FLAME CUT STYLE BOOM) (SERIAL NO. 507079- ) [03D23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R29936	2	O-Ring	-
2	38H1194	2	Adapter Fitting	-
3	T77858	13	O-Ring	-
5	AT80031	1	OIL LINE	-
6	AT81503	1	LINE	-
7	A33911	1	HOSE CLAMP	-
8	AT81502	1	OIL LINE	-
9	38H1418	2	Fitting	(SUB FOR 38H1142)
10	AT81500	1	LINE	-
11	AT81499	1	LINE	-
12	19H2633	1	Cap Screw	3/8" X 1-1/2"
13	M16521	1	BUSHING	-
14	AT80033	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 902 MM (35-1/2") X 1-3/16"
15	T74279	1	BRACKET	-
16	24H1308	3	Washer	13/32" X 1" X 0.134"
17	14H1076	2	Nut	3/8"
18	19H2633	2	Cap Screw	3/8" X 1-1/2"
19	T54568	8	Lock Nut	-
20	T71348	2	CLAMP	-
21	19H2732	1	Cap Screw	3/8" X 2-3/4"
22	AT81501	2	HYDRAULIC HOSE - FABRICATE	1-3/16" X 791 MM (31-1/4") X 1-3/16"
23	19H3579	3	Cap Screw	1/2" X 1-3/8"
24	24H1850	3	Washer	17/32" X 1-1/4" X 0.180"
25	38H1356	2	Tube Nut	-
26	AT84414	1	OIL LINE	-
27	28H2553	2	BUSHING	0.742" X 1.050" X 1-1/8"
28	14H1040	3	Nut	1/2"
30	28H1973	1	Bushing	0.824" X 1.050" X 1-3/4"
4A	AT80032	1	OIL LINE	(SUB AT84413, AT84414 AND T77858)
4B	AT84413	1	OIL LINE	-
23A	19H2508	2	CAP SCREW	1/2" X 1-3/8"
23B	AT85065	2	WELD STUD	-
29A	19H2508	1	CAP SCREW	1/2" X 1-3/8"
29B	AT85060	1	WELD STUD	-

AUXILIARY CONTROL VALVE HYDRAULICS (LARGE VALVE WITH FLAME CUT STYLE BOOM) (SERIAL NO. 507079- ) [03D23]
