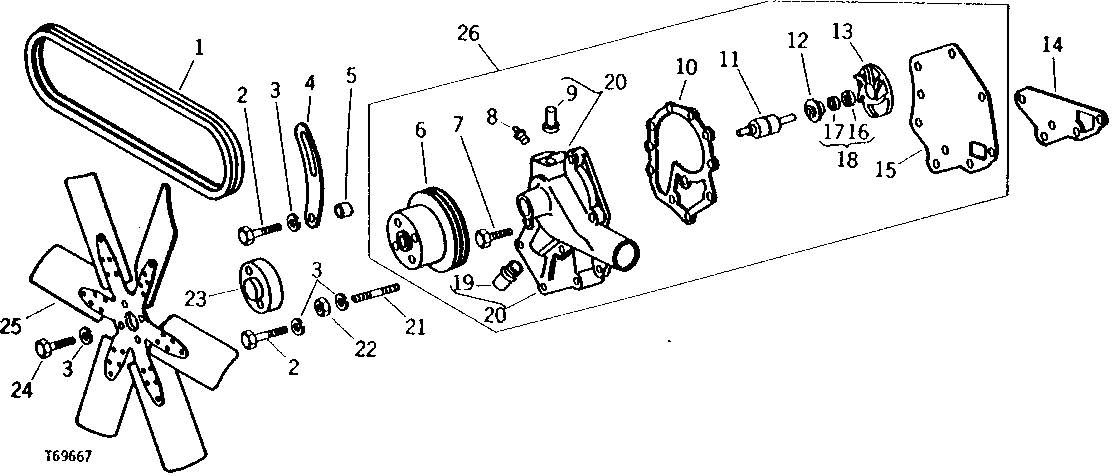

WATER PUMP WITH FAN AND FAN BELT [01C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT59850	1	BELT SET	(SET OF TWO BELTS) (WITH AIR CONDITIONING)
1	AT24833	1	BELT SET	(SET OF TWO BELTS) (WITHOUT AIR CONDITIONING)
2	19H3065	4	Cap Screw	3/8" X 2", (WITHOUT AIR CONDITIONING)
2	19H3217	4	Cap Screw	3/8" X 1-3/4", (WITH AR CONDITIONING)
3	12H304	18	Lock Washer	3/8"
4	R57432	1	STRAP	(WITHOUT AIR CONDITIONING)
4	T60986	1	STRAP	(WITH AIR CONDITIONING)
5	28H1518	1	Washer	3/8" X .312"
6	R56810	1	Pulley	-
7	19H2633	4	Cap Screw	3/8" X 1-1/2"
8	15H584	1	Pipe Plug	1/2", (WITHOUT CAB HEATER)
9	R40083	1	HOSE FITTING	-
10	R56809	1	Gasket	-
11	JD8643	1	Bearing	-
12	T27261	1	SEAL	(SUB AR101549)
13	R99122	1	Impeller	(USE IF AVAILABLE)
13	R56812	1	Impeller	(SUB FOR R99122)
14	T20243	1	Gasket	-
15	R56811	1	Cover	-
16	-	1	Part 20	(SUB AR101549)
17	-	1	Part 21	(SUB AR101549)
18	AR101549	1	Seal Kit	INSERT AND CUP
19	R34985	1	Line	-
20	AR80115	1	HOUSING	(MARKED R55971 OR R90785)
21	T25701	1	Stud	-
22	14H812	1	NUT	3/8"
23	T62511	1	SPACER	(WITH AIR CONDITIONING)
23	R54145	1	SPACER	USE WITH SUCKER FAN)
24	19H2676	4	Cap Screw	3/8" X 1", (WITHOUT AIR CONDITIONING)
24	19H1726	4	Cap Screw	3/8" X 2-1/4", (WITH AIR CONDITIONING)
24	19H1765	4	Cap Screw	3/8" X 1-3/4", (USE WITH SUCKER FAN)
25	AT60278	1	FAN	(BLOWER) (6 BLADE) (SUB FOR AH83386, THIS APPLICATION)
25	AR46805	1	FAN	(SUCKER) (6 BLADE)
26	AR65965	1	WATER PUMP	-
