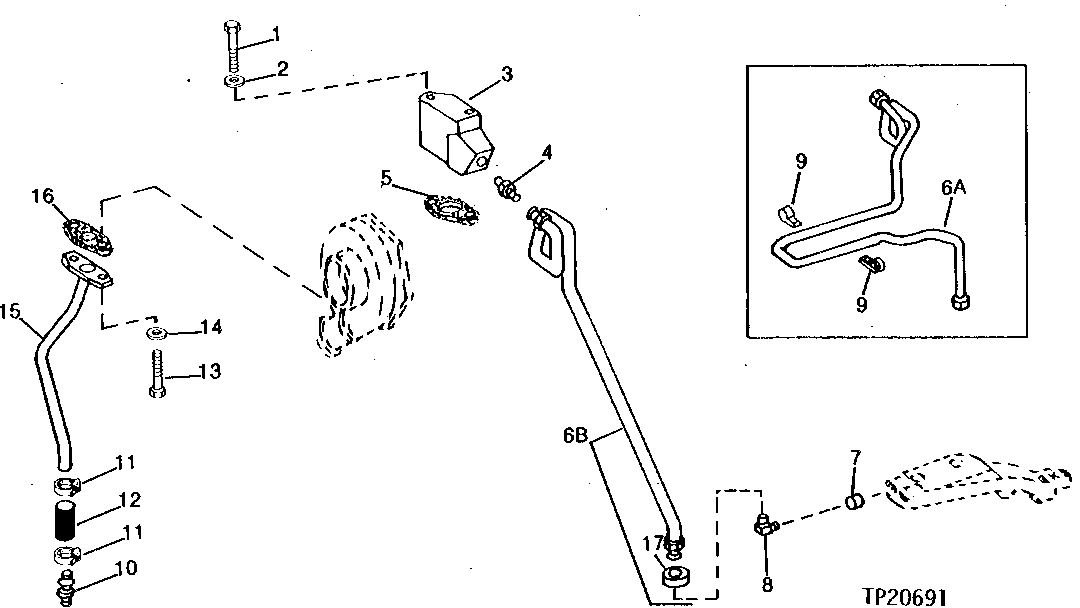

TURBOCHARGER OIL LINES AND ADAPTER [01C05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3131	2	Cap Screw	5/16" X 2"
2	12H303	2	Lock Washer	5/16"
3	R56256	1	ADAPTER FITTING	-
4	R26892	1	Fitting	-
5	R43413	1	GASKET	-
7	15H607	1	Pipe Bushing	3/4" X 1/4", (USE WITH AR70357)
7	15H619	1	Pipe Bushing	3/8", (USE WITH RE10598)
8	R67803	1	FITTING	(USE WITH RE10598)
8	M42830	1	Elbow Fitting	90°, (SUB FOR AR26635) (USE WITH AR70357)
9	M44204	3	Clamp	(SUB FOR T22645, THIS APPLICATION) (USE WITH AR70357)
10	R39503	1	Fitting	-
11	AR21839	2	Clamp	-
12	-	1	Part 15	(SUB FOR U42686 AND R81210) (MAKE FROM R120013) (CUT TO LENGTH)
13	19H2284	2	Cap Screw	3/8" X 7/8", (USE WITH RE19268, AR66398 AND RE33058)
13	R124277	2	Cap Screw	(USE WITH RE62101)
14	12H304	2	Lock Washer	3/8", (USE WITH 19H2284)
15	RE62101	1	Oil Line	(SUB FOR AR66398, RE19268 AND RE33058) (ALSO ORDER (2) R124277)
16	R105346	1	Gasket	(SUB FOR R43416 AND R97349)
17	R67092	1	Sealing Washer	-
6A	AR70357	1	OIL LINE	(SUB RE10598, R67803 AND 15H619)
6B	RE10598	1	OIL LINE	-

TURBOCHARGER OIL LINES AND ADAPTER [01C05]
