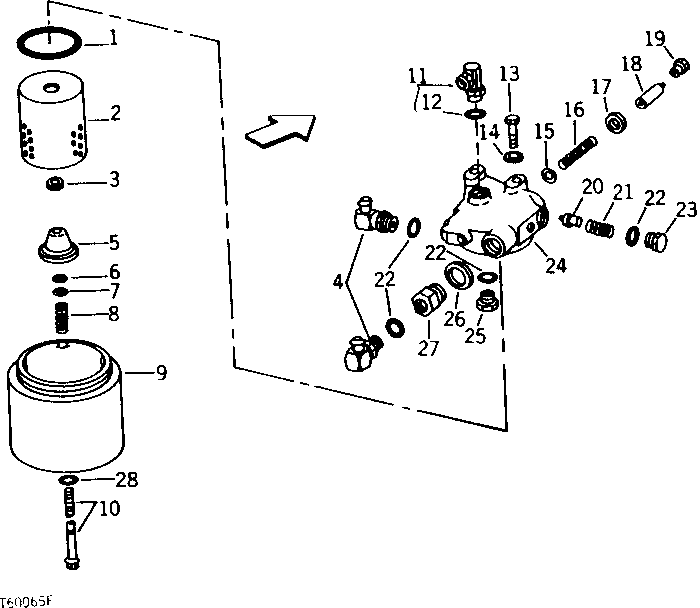

SUPPLEMENTARY HYDRAULIC OIL FILTER AND RELIEF VALVE (WITH 9305 BACKHOE) [03C21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34733	1	WASHER	-
2	AR75603	1	FILTER ELEMENT	(SUB FOR AR75601 AND AT34670)
3	R32507	1	Snap Ring	-
4	AT21574	2	Fitting	-
5	R28593	1	RETAINER	(USE WITH R394R ROUND CROSS-SECTION O-RING) (SUB R65892 AND F2741R)
5	R65892	1	RETAINER	(USE WITH F2741R SQUARE CROSS-SECTION O-RING)
6	R394R	1	O-Ring	(USE WITH R28593 RETAINER)
6	F2741R	1	Packing	(USE WITH R65892 RETAINER)
7	24H1227	1	Washer	17/32" X 13/16" X 0.060"
8	R66064	1	SPRING	(SUB FOR R1769R)
9	R51654	1	COVER	-
10	R82731	1	SCREW	(SUB FOR R54753)
11	AU12366	1	ELBOW FITTING	-
12	U12547	1	O-Ring	-
13	19H3065	2	Cap Screw	3/8" X 2"
14	12H304	2	Lock Washer	3/8"
15	R26906	1	O-Ring	-
16	T27992	1	SPRING	-
17	R33259	1	O-Ring	-
18	R57559	1	VALVE	-
19	AT26172	1	PLUG	(NO LONGER AVAILABLE, ORDER R27474 AND T22850)
20	R40976	1	VALVE	-
21	R30776	1	SPRING	-
22	U12547	4	O-Ring	(SUB FOR (4) F3171R)
23	AT26171	1	PLUG	-
24	AT27078	1	HOUSING	(MARKED T27991)
25	R27175	1	Drain Plug	-
26	A4808R	1	WASHER	-
27	-	1	Part 29	( T33035 USE IF AVAILABLE)
28	R394R	1	O-Ring	-
