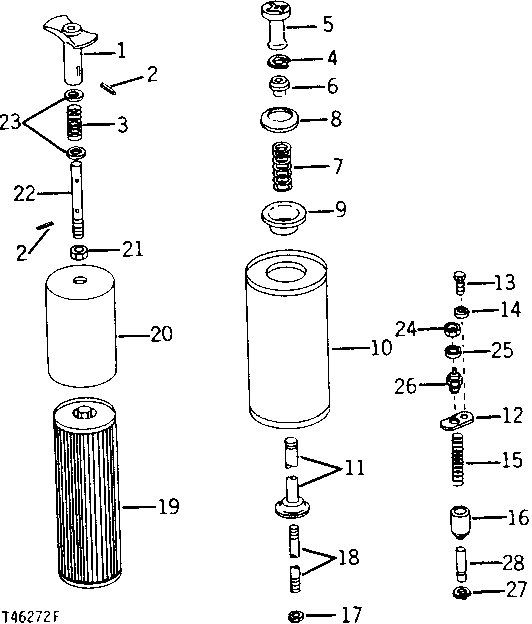

SUMP TANK OIL FILTER AND RELIEF VALVES [02B01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U16794	1	LATCH	-
2	34H251	2	Spring Pin	1/8" X 1"
3	U12595	1	SPRING	-
4	R26192	1	Snap Ring	-
5	T26999	1	NUT	-
6	T44919	1	SPACER	-
7	T24679	1	Spring	-
8	T44920	1	SPRING WASHER	-
9	T35812	1	ROUND RETAINER	-
10	AT39266	1	FILTER ELEMENT	(25 MICRON) (SUB AT78414 AND T64687)
10	AT78414	1	FILTER ELEMENT	(10 MICRON) (SUB FOR AT63548)
11	AT25056	1	SPACER	-
12	T40653	1	STRAP	(A)
13	19H2705	1	Cap Screw	(A) 5/16" X 1"
14	12H303	1	Lock Washer	(A) 5/16"
15	T64687	1	SPRING	(USE WITH AT78414) (10 MICRON FILTER)
15	-	1	Part 16	(A) ( P47300 NO LONGER AVAILABLE) (SUB FOR U41513, THIS APPLICATION) (SUB T57182)
15	T57182	1	SPRING	(A) (USE WITH AT39266) (25 MICRON FILTER)
16	T40651	1	PISTON	(A)
17	14H886	1	Nut	(A) 9/16"
18	T27000	1	STUD	(A)
19	AT107006	1	FILTER ELEMENT	(SUB FOR AT32674) (USE IF AVAILABLE)
19	F3450R	1	O-Ring	-
19	AT147017	1	OIL FILTER	(SUB FOR AT107006, THIS APPLICATION)
20	U17021	1	CONTAINER	-
21	H32811	1	Lock Nut	(SUB FOR T31671)
22	T26994	1	STUD	-
23	24H1341	2	Washer	17/32" X 15/16" X 0.060"
24	14H631	1	Nut	(A) 0.190"
25	24H1283	1	Washer	(A) 7/32" X 1/2" X 0.049"
26	AR40795	1	TOUCH SWITCH	(A)
27	T20954	1	SNAP RING	(A) (USE WITH T40652)
28	T78552	1	STEM	(A) WITHOUT SNAP RING GROOVE (SUB FOR T40652 WITH SNAP RING GROOVE)
..	-	1	Part 34	( AT39259 USE IF AVAILABLE)

SUMP TANK OIL FILTER AND RELIEF VALVES [02B01]
