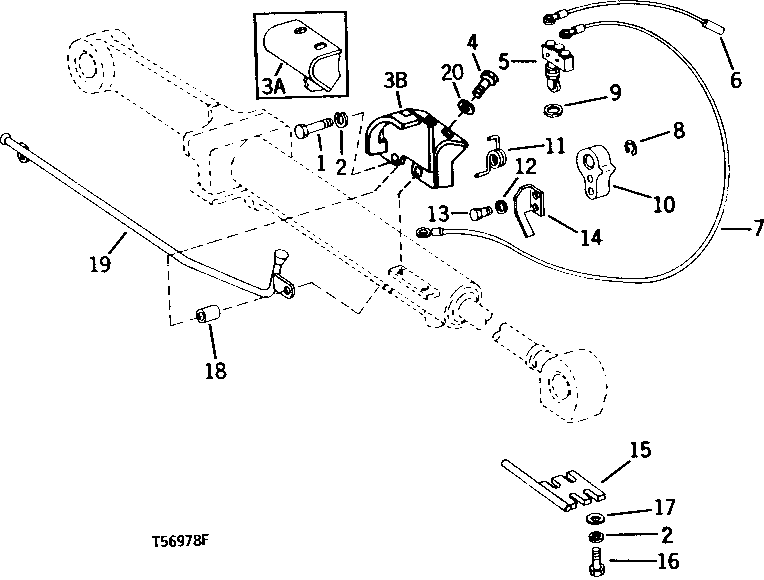

RETURN-TO-DIG ACTUATOR, CAM AND SWITCH (WITH REGULAR BUCKETS, LUMBER FORK, OR PULPWOOD LOADER) [02C06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1726	1	Cap Screw	3/8" X 2-1/4"
2	12H304	5	Lock Washer	3/8"
4	19H1648	2	Cap Screw	3/8" X 3/4"
5	AT40342	1	SWITCH	-
5	AT52530	1	SWITCH	-
6	AT40344	1	WIRING LEAD	-
7	AT40343	1	WIRING LEAD	-
8	R26871	1	Snap Ring	-
9	24H1272	1	Washer	9/16" X 1-1/4" X 1/4"
10	AT40341	1	CAM	-
11	T41367	1	TORSION SPRING	-
12	12H302	2	Lock Washer	1/4"
13	19H1919	2	Cap Screw	1/4" X 5/8"
14	T41370	1	INDICATOR LIGHT	-
14	T56283	1	SUPPORT	-
15	AT43293	1	ACTUATOR	(SUB AT46899) (USE WHEN EQUIPPED WITH REGULAR BUCKETS)
15	AT44017	1	ACTUATOR	(SUB AT46899) (USE WHEN EQUIPPED WITH LUMBER FORK OR PULPWOOD LOADER)
15	AT46899	1	ACTUATOR	(SUB FOR AT46898) (USE WHEN EQUIPPED WITH REGULAR BUCKETS, LUMBER FORK OR PULPWOOD LOADER)
16	19H3239	4	Cap Screw	3/8" X 1-1/4"
17	24H1308	4	Washer	13/32" X 1" X 0.134"
18	28H3380	1	Spacer	0.493" X 0.675" X 1-5/8" 3/8" X 1-5/8"
19	AT103345	1	TUBE	(SUB FOR AT40345)
20	24H1305	2	Washer	13/32" X 13/16" X 0.065"
3A	AT40340	1	HOUSING	-
3B	AT54076	1	HOUSING	-
