NO-SPIN DIFFERENTIAL HOUSING (SERIAL NO. -247611) [01G10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R42142	1	STOP	-
2	R41947	2	RING	(SUB AR72466)
3	R41946	2	CAM	(SUB AR72466)
4	R41948	2	RETAINER	-
5	R41949	2	SPRING	(SUB AR72853)
6	R55610	2	GEAR	-
7	JD8954	1	Bearing Cone	(L.H.)
7	JD8159	1	Bearing Cone	(R.H.)
8	AR72466	1	CAM	(SUB AR72853)
9	R115439	8	Cap Screw	(SUB FOR R44888)
10	R62466	1	COVER	(SUB FOR R44889)
11	R41944	1	SNAP RING	(SUB AR54638)
12	-	1	Part 13	(SUB AR54638) (SUB FOR R41943)
13	R41945	1	CAM	(SUB AR54638)
14	-	1	Part 15	DIFF ( AR54638 NO LONGER REQUIRED)
15	R48787	12	Cap Screw	-
16	R48429	12	Washer	-
17	R62469	1	HOUSING	-
18	-	1	Part 19	(MARKED R41978 OR R80048) (MARKED R44384) (SUB AR45733 AND RE50114)
19	-	1	Part 20	(A) ( R26227 NO LONGER AVAILABLE) 0.08 MM (0.003")
19	-	1	Part 21	(A) ( R26228 NO LONGER AVAILABLE) 0.13 MM (0.005")
20	R45197	1	Shim	0.18 MM (0.007")
20	R45198	1	Shim	0.25 MM (0.010")
20	R45199	1	Shim	0.30 MM (0.012")
20	R45200	1	Shim	0.38 MM (0.015")
21	RE11399	1	GEAR	(HOUSING MARKED R44382 OR R62469) (SHAFT MARKED R41977) (GEAR MARKED R44383) INCLUDES SPECIAL WASHERS, CAP SCREWS AND SHIMS, (ALSO ORDER R62469) (SUB FOR AR48559, THIS APPLICATION)
21	RE11400	1	GEAR	(HOUSING MARKED R44382 OR R62469) (SHAFT MARKED R41978) (GEAR MARKED R44384) INCLUDES SPECIAL WASHERS, CAP SCREWS AND SHIMS, (ALSO ORDER R62469) (SUB FOR AR69693, THIS APPLICATION)

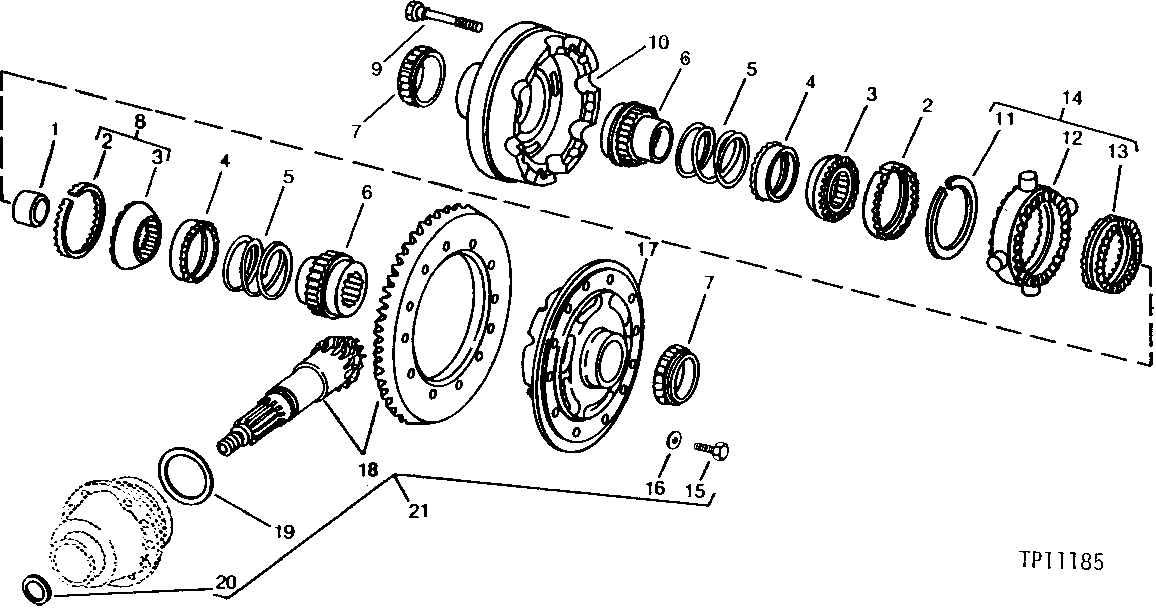

NO-SPIN DIFFERENTIAL HOUSING (SERIAL NO. -247611) [01G10]
