Открытый узел

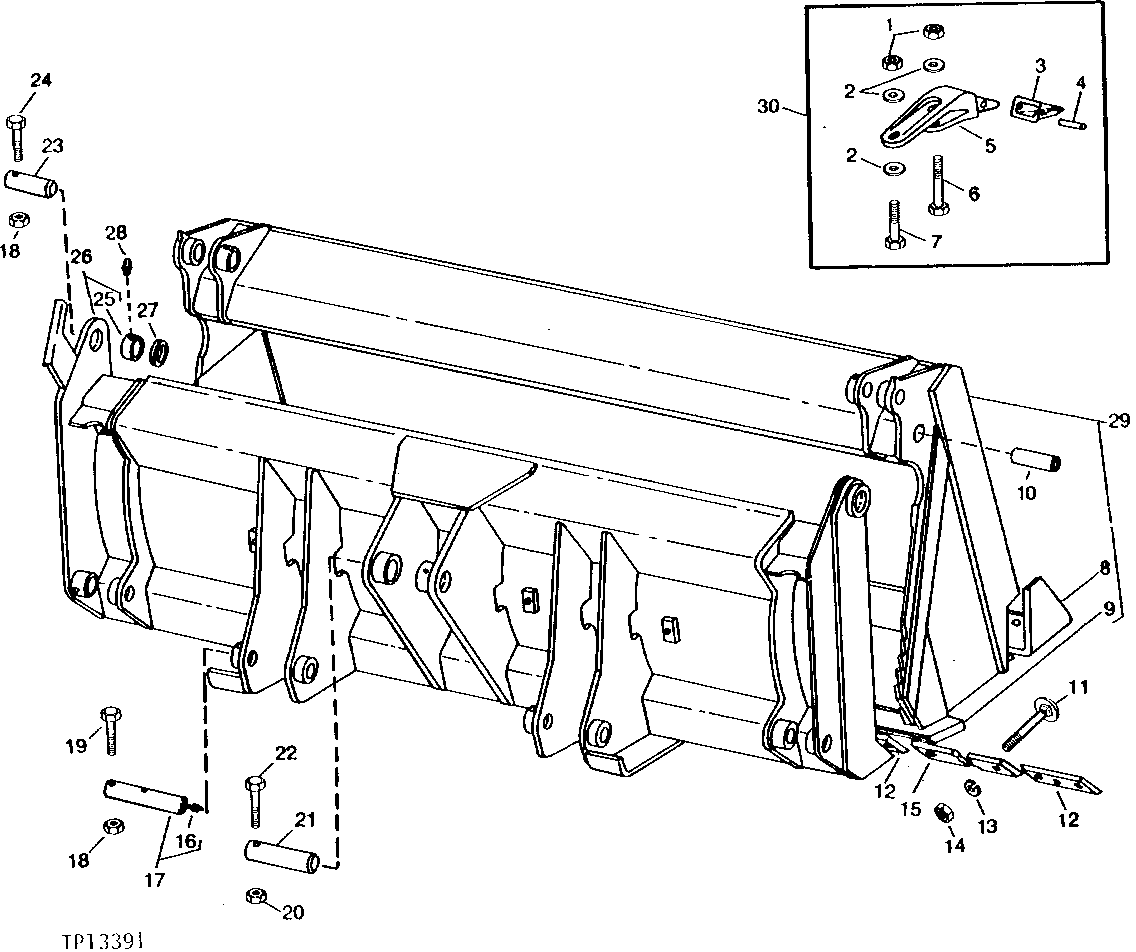

MULTI-PURPOSE BUCKET 1.34 M3 (1-3/4 YARD) [02C17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	K40016	16	Lock Nut	(USE WITH AT34277) (SUB FOR A11353, THIS APPLICATION)
2	24H1400	24	Washer	25/32" X 1-5/8" X 1/4", (USE WITH AT34277)
3	T29887	8	TOOTH	-
4	TP160	8	Pin	(SUB FOR T25101)
5	-	8	Part 5	( AT34277 NO LONGER AVAILABLE) (USE WITH T46725) (SUB AT65135)
5	-	8	Part 6	(USE WITH T35308) (SUB AT65136) (SUB FOR AT28188)
6	19H2646	8	CAP SCREW	3/4" X 3-5/8", (USE WITH AT34277)
7	-	8	Part 8	3/4" X 2-1/8", (USE WITH AT34277) ( 19H3487 NO LONGER AVAILABLE)
8	T46725	1	CUTTING EDGE	(A) BUCKET 31.8 MM THICK (1-1/4")
9	T43017	1	CUTTING EDGE	(A) CLAM
10	U44332	2	BUSHING	-
11	10H1047	13	Bolt	(A) 3/4" X 2-1/4"
12	T31148	2	CUTTING EDGE	(A)
13	12H236	13	Lock Washer	(A) 3/4"
14	14H794	13	Nut	(A) 3/4"
15	T32742	1	Cutting Edge	(A) BLADE
16	T162396	2	Lubrication Fitting	(A) (SUB FOR JD7759 OR JD7798)
17	AT23836	2	PIN FASTENER	(A)
18	U12622	4	LOCK NUT	(A)
19	19H1868	2	CAP SCREW	(A) 1/2" X 3-3/4"
20	U44915	1	Lock Nut	(A) (SUB FOR BP14495)
21	T39930	1	PIN FASTENER	(A) (BUCKET LINK TO BUCKET)
22	19H3170	1	Cap Screw	(A) 5/8" X 4-1/2"
23	T43026	2	PIN	(A)
24	19H3586	2	Cap Screw	(A) 1/2" X 4-1/4"
25	T58510	2	Bushing	(A) (SUB FOR U44332) (SUB FOR U44332, THIS APPLICATION)
26	-	1	Part 27	(A) ( AT41913 USE IF AVAILABLE)
27	24H1566	1	Washer	(A) 1-49/64" X 2-1/2" X 0.075"
28	JD7797	2	Lubrication Fitting	-
29	-	1	Part 30	WITH 25.4 MM (1") BUCKET CUTTING EDGE, ( AT41924 NO LONGER AVAILABLE) (SUB AT58636 IF AVAILABLE)
29	AT45392	1	CLAMSHELL BUCKET	WITH 31.8 MM (1-1/4") BUCKET CUTTING EDGE, (SUB AT58636 IF AVAILABLE)
29	-	1	Part 32	(A) (31.8 MM) BUCKET CUTTING EDGE ( AT58636 USE IF AVAILABLE)
30	-	8	Part 33	( AT65135 NO LONGER AVAILABLE) (USE WITH T46725)
30	T29886	8	BUCKET TOOTH ADAPTER	-
..	AT43566	1	MULTI-PURPOSE BUCKET	1 .34 M3 (1-3/4 CU YD) MULTI-PURPOSE

MULTI-PURPOSE BUCKET 1.34 M3 (1-3/4 YARD) [02C17]

Нет текстового описания
