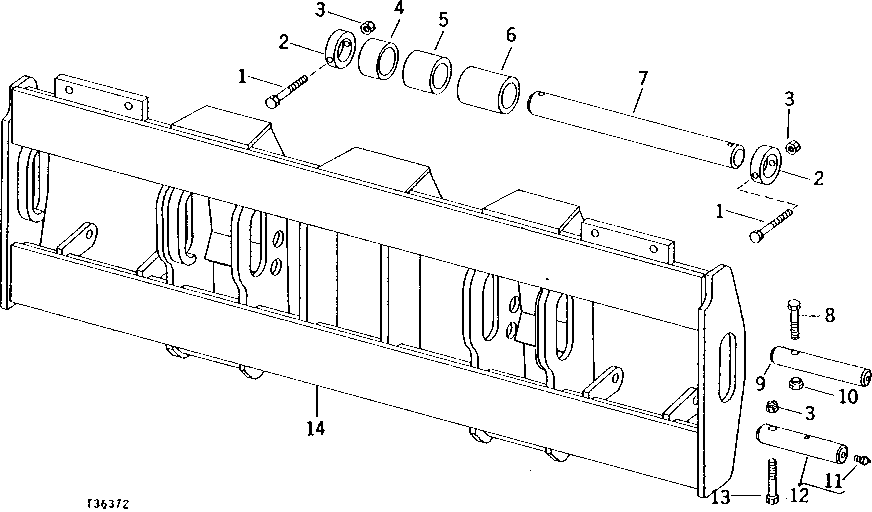

LUMBER FORK FRAME AND LOAD ARM SHAFT [02C21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2224	4	CAP SCREW	(A) 1/2" X 4-3/4"
2	T30977	4	BUSHING	(A)
3	BP12214	6	Lock Nut	(A)
4	28H3310	6	SPACER	(A) 3" X 2"
5	28H2681	2	SPACER	(A) 3" X 3"
6	28H3311	2	SPACER	(A) 3" X 4-1/2"
7	T64155	2	PIN	(SUB FOR T31012)
8	19H1550	1	CAP SCREW	(A) 5/8" X 5"
9	T39930	1	PIN FASTENER	(A) (LUMBER FORK TO LINK)
10	U44915	1	Lock Nut	(A) (SUB FOR BP14495)
11	T162396	2	Lubrication Fitting	(A) (SUB FOR JD7759 OR JD7798)
12	AT23836	2	PIN FASTENER	(A) (BOOM)
13	19H1868	2	CAP SCREW	(A) 1/2" X 3-3/4"
14	-	1	Part 14	(A) (SUB AT45754) (USE WITHOUT LUMBER CLAMPS)
14	-	1	Part 15	(USE WITHOUT CLAMP) ( AT44970 NO LONGER AVAILABLE)
14	-	1	Part 16	(SUB AT45755) (USE WITH LUMBER CLAMPS)
14	AT68658	1	FRAME	(SUB FOR AT44977) (ALSO ORDER (2) R26375 AND (2) R27237) (INCLUDES (2) T71636 AND T31243) (USE WITH CLAMP)
..	AT45754	1	LOG FORK	(WITHOUT CLAMPS) (NO LONGER AVAILABLE)
..	AT44968	1	LOG FORK	(WITHOUT CLAMP)
..	AT45755	1	FORK	(WITH CLAMPS) (NO LONGER AVAILABLE)
..	AT68086	1	FORK	(WITH CLAMP) (SUB FOR AT44969)
