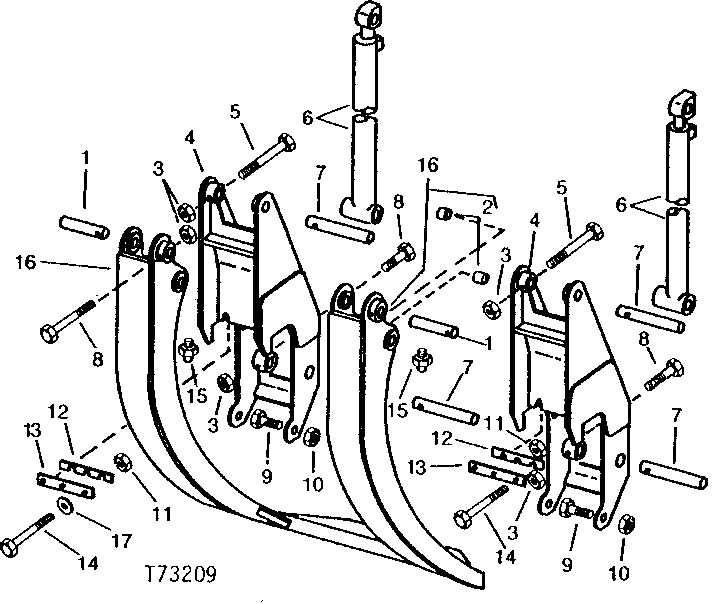

LUMBER CLAMP AND CYLINDER (SERIAL NO. 226224- ) [02D01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T30997	2	PIN	-
2	T25877	4	BUSHING	-
3	BP12214	6	Lock Nut	-
4	AT68084	2	SUPPORT	(SUB FOR AT68084)
5	19H3586	2	Cap Screw	1/2" X 4-1/4"
6	AT44985	2	CYLINDER	102 MM (.4") DIAMETER
7	T30986	4	PIN	-
8	19H2224	4	CAP SCREW	HS, SAE 8, 1/2" X 4-3/4"
9	19H3417	4	Cap Screw	1" X 3"
10	T34950	4	Nut	-
11	K40016	6	Lock Nut	(USE WITH AT68086)
11	K40016	4	Lock Nut	(SUB FOR T25879, THIS APPLICATION) (USE WITH AT44969)
12	T71117	1	STRAP	(SUB FOR T31228)
13	-	2	Part 14	( T32553 NO LONGER AVAILABLE) (SUB T71116 IF AVAILABLE)
14	19H3167	4	Cap Screw	HS, SAE 8, 3/4" X 3-1/4" (USE WITH AT44969)
14	19H3167	6	Cap Screw	HS, SAE 8, 3/4" X 3-1/4" (USE WITH AT68086)
15	JD7759	2	Lubrication Fitting	-
16	AT44978	1	SUPPORT	-
17	T10510	4	Washer	(USE WITH AT44969) (USE IF AVAILABLE)
17	T10510	6	Washer	(USE WITH AT68086) (USE IF AVAILABLE)
17	R78019	4	Washer	(SUB FOR T10510)
17	R78019	6	Washer	(SUB FOR T10510)
..	AT68086	1	FORK	(WITH CLAMP) (SUB FOR AT44969)

LUMBER CLAMP AND CYLINDER (SERIAL NO. 226224- ) [02D01]
