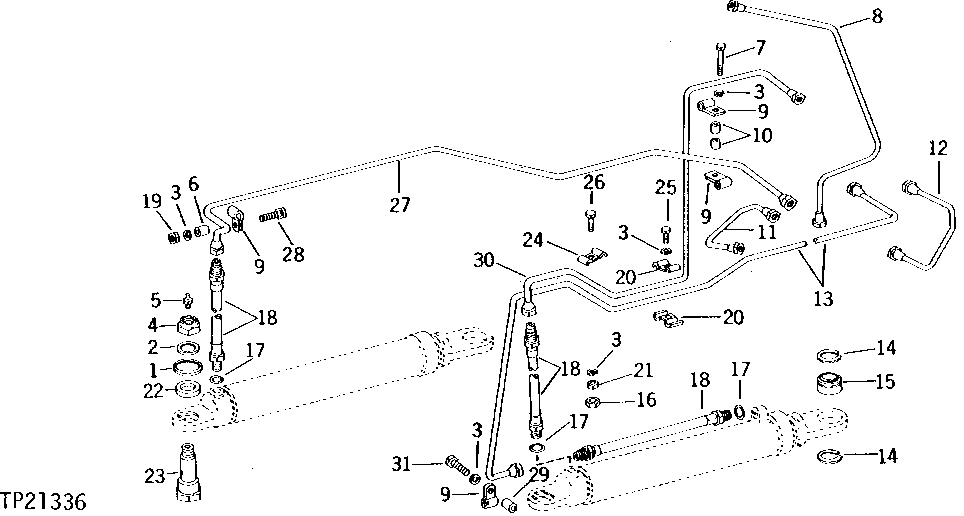

HYDRAULIC STEERING LINES AND CYLINDERS (SERIAL NO. -247599) [01I05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T28070	4	WASHER	-
2	T24510	4	Washer	(SUB FOR R26681)
3	12H304	5	Lock Washer	3/8"
4	T27821	4	LOCK NUT	-
5	JD7759	2	Lubrication Fitting	FRONT
5	JD7781	2	Lubrication Fitting	REAR
6	28H2522	1	Spacer	3/8" X 13/16"
7	19H2458	1	Cap Screw	3/8" X 3"
8	AT26319	1	LINE	-
9	T24958	4	Clip	-
10	28H1495	2	Spacer	3/8" X 1"
11	AT26359	1	LINE	-
12	AT26318	1	LINE	-
13	AT26326	1	LINE	-
14	F2367R	8	SNAP RING	-
15	AT61453	4	BUSHING	-
15	AT54529	4	BUSHING	(SUB FOR AT25833) (SUB AT61453)
16	14H812	1	NUT	3/8", (NEUTRAL START SWITCH GROUND LINE)
17	R26375	3	O-Ring	-
18	T22012	3	HYDRAULIC HOSE - FABRICATE	3/4" X 436 MM (17-1/4") X 3/4"
19	14H812	1	NUT	3/8"
20	R34064	2	CLAMP	-
21	14H812	2	NUT	3/8"
22	T28071	4	BUSHING	-
23	T59402	4	CAP SCREW	(SUB FOR T27277)
24	E16981	1	CLAMP	-
25	19H1648	1	Cap Screw	3/8" X 3/4"
26	19H2633	1	Cap Screw	3/8" X 1-1/2"
27	AT26358	1	LINE	-
28	19H3065	1	Cap Screw	3/8" X 2"
29	-	1	Part 31	3/8" X 1-1/2" ( AU41697 NO LONGER AVAILABLE, SUB COMPONENTS)
30	AT25603	1	LINE	-
31	19H2722	1	Cap Screw	3/8" X 2-3/8"

HYDRAULIC STEERING LINES AND CYLINDERS (SERIAL NO. -247599) [01I05]
