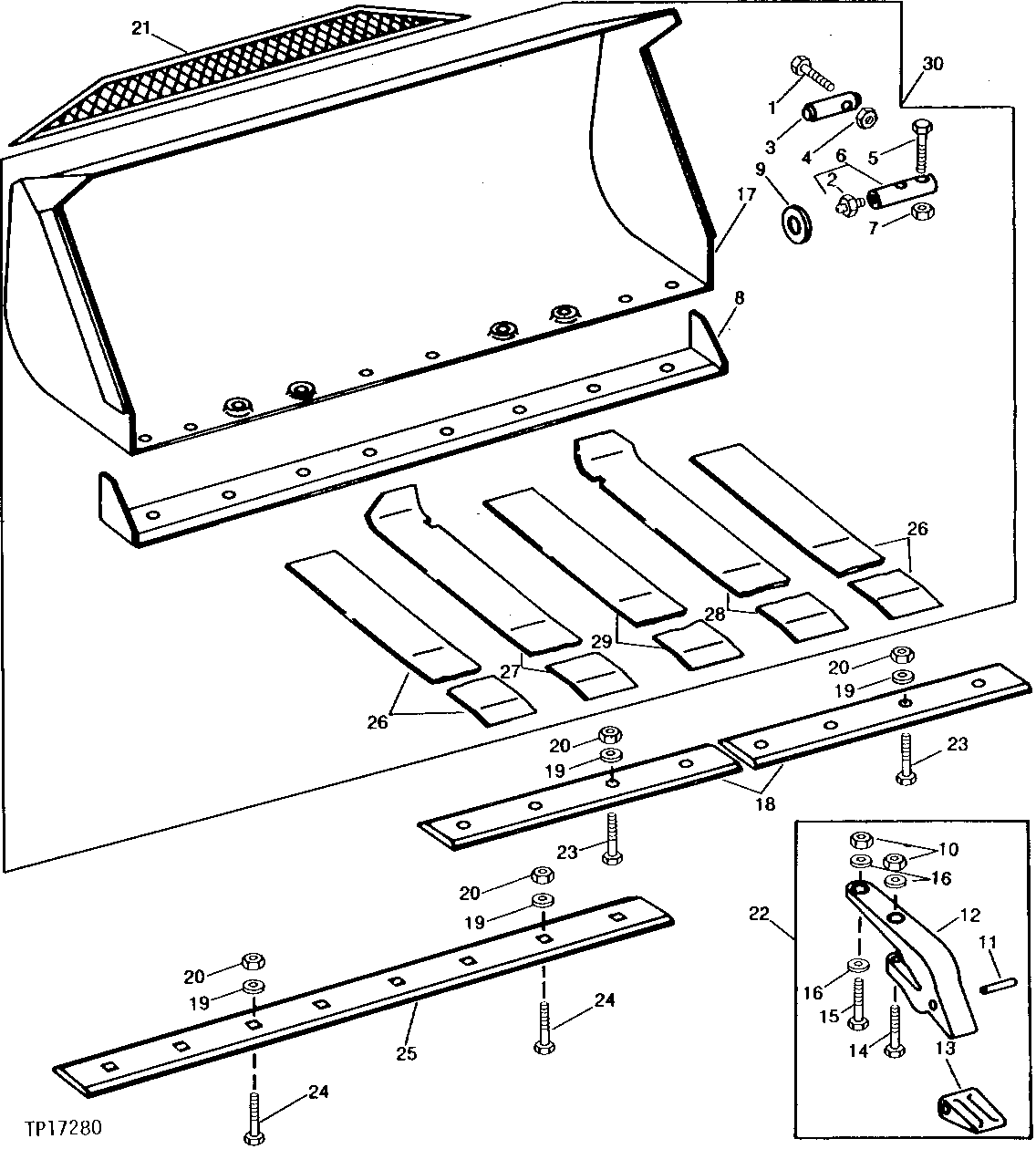

GENERAL PURPOSE LOADER BUCKETS 1.6 M3 (2 CU. YARD) AND 2.3 M3 (3 CU. YARD) [02C10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3170	1	Cap Screw	5/8" X 4-1/2"
2	T162396	2	Lubrication Fitting	1/8", STRAIGHT, (SUB FOR JD7759 OR JD7798)
3	T39930	1	PIN FASTENER	(BUCKET LINK TO BUCKET)
4	U44915	1	Lock Nut	(SUB FOR BP14495)
5	19H1868	2	CAP SCREW	1/2" X 3-3/4"
6	AT23836	2	PIN FASTENER	(BOOM TO BUCKET PIVOT)
7	BP12214	2	Lock Nut	(SUB FOR U12622)
8	T35308	1	DURA-MAX TM CUTTING EDGE	1.6 M3 (2-YARD) BUCKET
8	T35372	1	CUTTING EDGE	2.3 M3 (3-YARD) BUCKET
8	PBT35372	1	CUTTING EDGE	WITH HOLES - ALTERNATE FOR T35372
8	T145946	1	DURA-MAX CUTTING EDGE	AUXILIARY - FOR USE WITH PBT35372 (PLAIN CARBON STEEL) (SUB FOR T76973)
8	T145946	1	DURA-MAX CUTTING EDGE	(BORON STEEL)
9	24H1566	6	Washer	1-49/64" X 2-1/2" X 0.075"
10	K40015	16	Lock Nut	(SUB FOR U14555, THIS APPLICATION)
11	TP160	8	Pin	(SUB FOR T25101)
12	-	8	Part 16	1.6 M3 (2-YARD) BUCKET, (SUB AT65136) (SUB FOR AT28188)
12	-	8	Part 17	(1.34 M3 (1-3/4 YARD) (SUB AT65136) (SUB FOR AT28188)
13	T29887	8	TOOTH	1.6 M3 (2-YARD) BUCKET
14	19H2641	8	Cap Screw	1.6 M3 (2-YARD) BUCKET
15	19H2706	8	Cap Screw	1.6 M3 (2-YARD) BUCKET
16	24M7241	24	Washer	17 X 34 X 4 MM 1.6 M3 (2-YARD) BUCKET, (SUB FOR T19584 AND T40728)
17	-	2	Part 22	-
18	T76971	2	CUTTING EDGE	(WITH 3/4" HOLES)
18	T46191	2	CUTTING EDGE	(C) 1.6 M3 (2-YARD) BUCKET (WITH 5/8" HOLES) (SUB T76971, (4) K40016, (4) N231749 AND (4) T76969)
19	24M7241	8	Washer	(C) 17 X 34 X 4 MM, (SUB FOR T19584 AND T40728) (WITH REVERSIBLE CUTTING EDGES) (USE WITH T46191)
19	24H1400	8	Washer	25/32" X 1-5/8" X 1/4", (3/4") (USE WITH T76971)
20	K40015	8	Lock Nut	(C) 5/8" (WITH REVERSIBLE CUTTING EDGES) (SUB FOR U14555, THIS APPLICATION) (USE WIT T46191)
20	K40016	8	Lock Nut	(3/4") (USE WITH T76971)
21	AT40271	1	GUARD	(SUB FOR AT40270)
22	-	1	Part 30	( AT65136 NO LONGER AVAILABLE) FOR USE WITH (1.6 M3) (2-YARD) GENERAL PURPOSE BUCKET
23	09H1757	8	Bolt	(C) 5/8" (WITH REVERSIBLE CUTTING EDGES) (USE WITH T46191)
24	09H1759	8	Bolt	5/8"
24	T76969	8	BOLT	3/4" X 3" (USE WITH T76971)
25	T76971	2	CUTTING EDGE	(WITH 3/4" HOLES) 1.6 M3 (2-YARD) BUCKET
26	T35315	1	SHOE	(USE WITH 1.6 M3 (2 YARD) BUCKET) (NOT ILLUSTRATED)
26	T35321	1	SHOE	(USE WITH 1.6 M3 (2 YARD) BUCKET) (NOT ILLUSTRATED)
26	T35370	2	SHOE	(USE WITH 2.3 M3 (3 YARD) BUCKET)
27	T35368	2	SHOE	(USE WITH 2.3 M3 (3 YARD) BUCKET)
27	T35316	2	SHOE	(USE WITH 1.6 M3 (2 YARD) BUCKET)
28	T35369	2	SHOE	(USE WITH 2.3 M3 (3 YARD) BUCKET)
28	T35319	2	SHOE	(USE WITH 1.6 M3 (2 YARD) BUCKET)
29	T39947	1	SHOE	(USE WITH 2.3 M3 (3 YARD) BUCKET)
29	T39942	1	SHOE	(USE WITH 2.3 M3 (3 YARD) BUCKET)
30	-	1	Part 44	1.6 M3 (2-YARD) ( AT38691 NO LONGER AVAILABLE)
30	-	1	Part 45	2.3 M3 (3-YARD) ( AT38692 NO LONGER AVAILABLE)
..	AT44921	1	CUTTING EDGE	1.6 M3 (2-YARD) BUCKET (WITH 5/8" HOLES) (SUB AT75458)
..	AT75458	1	CUTTING EDGE	1.6 M3 (2-YARD) BUCKET (WITH 3/4" HOLES)
