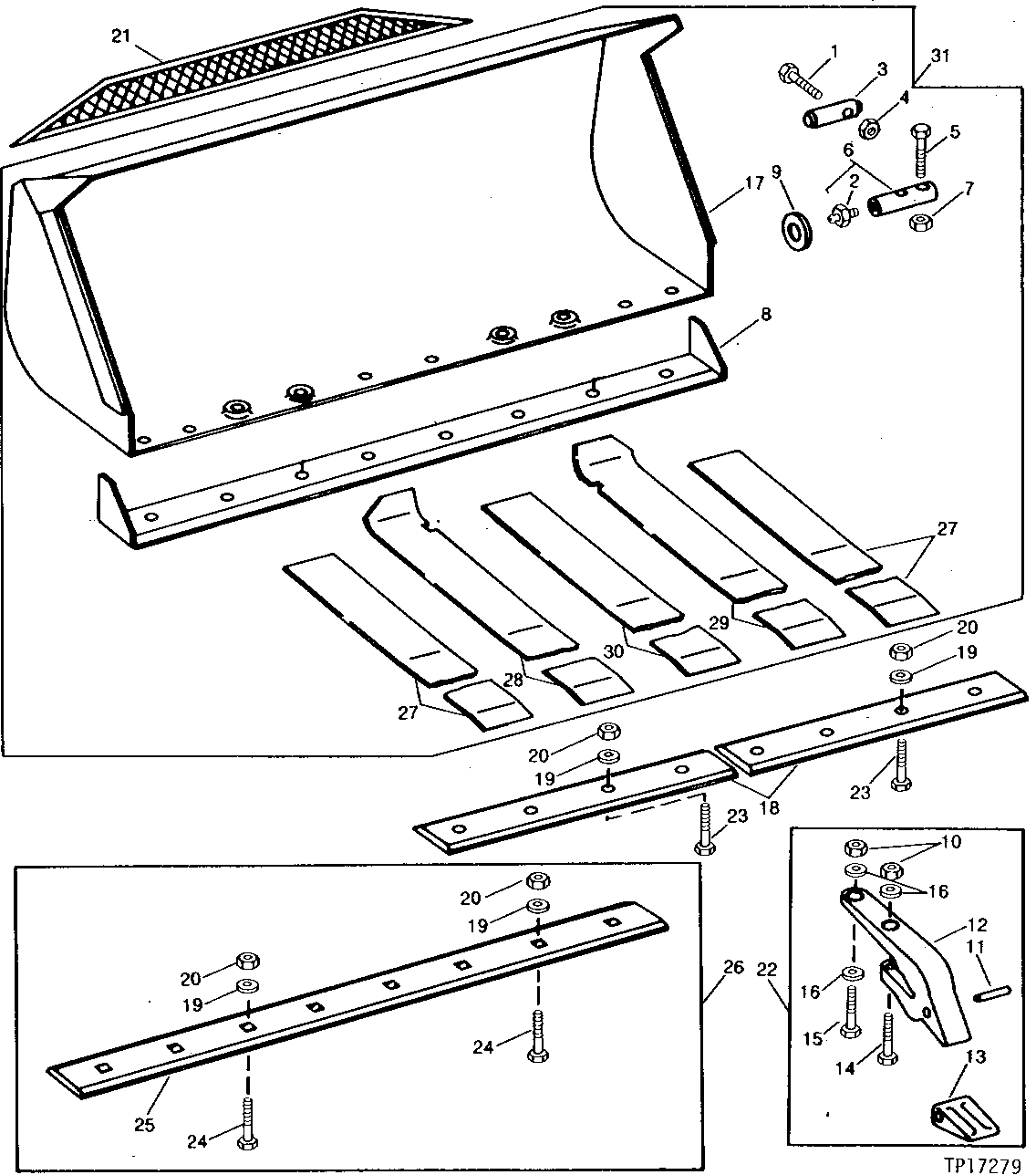

GENERAL PURPOSE LOADER BUCKETS 1.2 M3 (1-1/2 CU. YARD) AND 1.34 M3 (1-3/4 CU. YARD) [02C08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3170	1	Cap Screw	5/8" X 4-1/2"
2	T162396	2	Lubrication Fitting	1/8", STRAIGHT, (SUB FOR JD7759 OR JD7798)
3	T39930	1	PIN FASTENER	(BUCKET LINK TO BUCKET)
4	U44915	1	Lock Nut	(SUB FOR BP14495)
5	19H1868	2	CAP SCREW	1/2" X 3-3/4"
6	AT23836	2	PIN FASTENER	(BOOM TO BUCKET PIVOT)
7	BP12214	2	Lock Nut	(SUB FOR U12622)
8	T35567	1	DURA-MAX TM CUTTING EDGE	1.2 M3 (1-1/2-YARD) BUCKET
8	T35361	1	DURA-MAX TM CUTTING EDGE	1.34 M3 (1-3/4-YARD) BUCKET
9	24H1566	6	Washer	1-49/64" X 2-1/2" X 0.075"
10	K40015	16	Lock Nut	(SUB FOR U14555, THIS APPLICATION)
11	TP160	8	Pin	(SUB FOR T25101)
12	-	8	Part 14	(1.34 M3 (1-3/4 YARD) (SUB AT65136) (SUB FOR AT28188)
12	AU13811	8	TOOTH	1.2 M3 (1-1/2-YARD) BUCKET, (SUB AT65137, THIS APPLICATION)
13	T29887	8	TOOTH	1.2 M3 (1-1/2-YARD) BUCKET, (SUB FOR U16086)
14	10H1157	8	BOLT	NO.3 (1.2 M3 (1-1/2 YARD) BUCKET)
14	19H2641	8	Cap Screw	1.34 M3 (1-3/4 YARD)
15	19H3244	2	Cap Screw	1.2 M3 (1-1/2 YARD) BUCKET
15	19H2008	6	Cap Screw	1.2 M3 (1-1/2 YARD) BUCKET
15	19H2706	8	Cap Screw	1.34 M3 (1-3/4 YARD)
16	24M7241	24	Washer	17 X 34 X 4 MM 1.2 M3 (1-1/2 YARD), 1.34 M3 (1-3/4 YARD) (SUB FOR T19584 AND T40728)
17	-	1	Part 22	-
18	T46190	2	CUTTING EDGE	(A) 1.34 M3 (1-3/4-YARD BUCKET) (WITH 5/8" HOLES) (SUB T76968, (4) K10016, (4) N231749 AND (4) T76969)
18	T76968	2	CUTTING EDGE	(WITH 3/4" HOLES) (USE WITH T76969)
19	24M7241	8	Washer	(A) 17 X 34 X 4 MM, (SUB FOR T19584 AND T40728) (WITH REVERSIBLE CUTTING EDGES) (USE WITH T46190)
19	24H1400	8	Washer	25/32" X 1-5/8" X 1/4", (3/4") (USE WITH T76968)
20	K40015	8	Lock Nut	(A) (WITH REVERSIBLE CUTTING EDGES) (SUB FOR U14555, THIS APPLICATION) (USE WITH T46190)
20	K40016	8	Lock Nut	(3/4") (USE WITH T76968)
21	AT40271	1	GUARD	(SUB FOR AT40270)
22	-	1	Part 30	(AT65137 NO LONGER AVAILABLE) FOR USE WITH (1.2 M3) (1-1/2-YARD ) GENERAL PURPOSE BUCKET)
22	-	1	Part 31	( AT65136 UNAVAILABLE) FOR USE WITH (1.34 M3) (1-3/4-YARD) GENERAL PURPOSE BUCKET, (1.6 M3) (2-YARD) GENERAL PURPOSE BUCKET)
23	09H1757	8	Bolt	(A) HS, SAE 8, 5/8" X 2-3/4" (WITH REVERSIBLE CUTTING EDGES) (USE WITH T46190)
23	T76969	8	BOLT	(3/4" X 3") (USE WITH T76968)
24	09H1759	8	Bolt	HS, SAE 8, 5/8" X 2-1/4"
25	T64320	1	DURA-MAX CUTTING EDGE	FOR USE WITH 1.2 M3 (1-1/2 YARD) BUCKET
26	AT61114	1	CUTTING EDGE	1.2 M3 (1-1/2 YARD) (5/8" HOLES) (NO LONGER AVAILABLE)
27	T35358	1	SHOE	(NOT ILLUSTRATED) (FOR USE WITH 1.34 M3 (1-3/4 YARD) BUCKET)
27	T35359	1	SHOE	(NOT ILLUSTRATED) (FOR USE WITH 1.34 M3 (1-3/4 YARD) BUCKET)
28	T35575	2	SHOE	(FOR USE WITH 1.2 M3 (1-1/2 YARD) BUCKET)
28	T35352	2	SHOE	(FOR USE WITH 1.34 M3 (1-3/4 YARD) BUCKET)
29	T35576	2	SHOE	(FOR USE WITH 1.2 M3 (1-1/2 YARD) BUCKET)
29	T35350	2	SHOE	(FOR USE WITH 1.34 M3 (1-3/4 YARD) BUCKET)
30	T39934	1	SHOE	(FOR USE WITH 1.34 M3 (1-3/4 YARD) BUCKET)
31	-	1	Part 44	1.2 M3 (1-1/2-YARD) ( AT38689 NO LONGER AVAILABLE)
31	-	1	Part 45	1.34 M3 (1-3/4-YARD) ( AT38690 NO LONGER AVAILABLE)
31	-	1	Part 46	2.3 M3 (3-YARD) ( AT38692 NO LONGER AVAILABLE)
..	AT44920	1	CUTTING EDGE	1.34 M3 (1-3/4-YARD) BUCKET, (WITH 5/8" HOLES) (SUB AT75457)
..	AT75457	1	CUTTING EDGE	1.34 M3 (1-3/4 YARD) BUCKET (WITH 3/4" HOLES)
