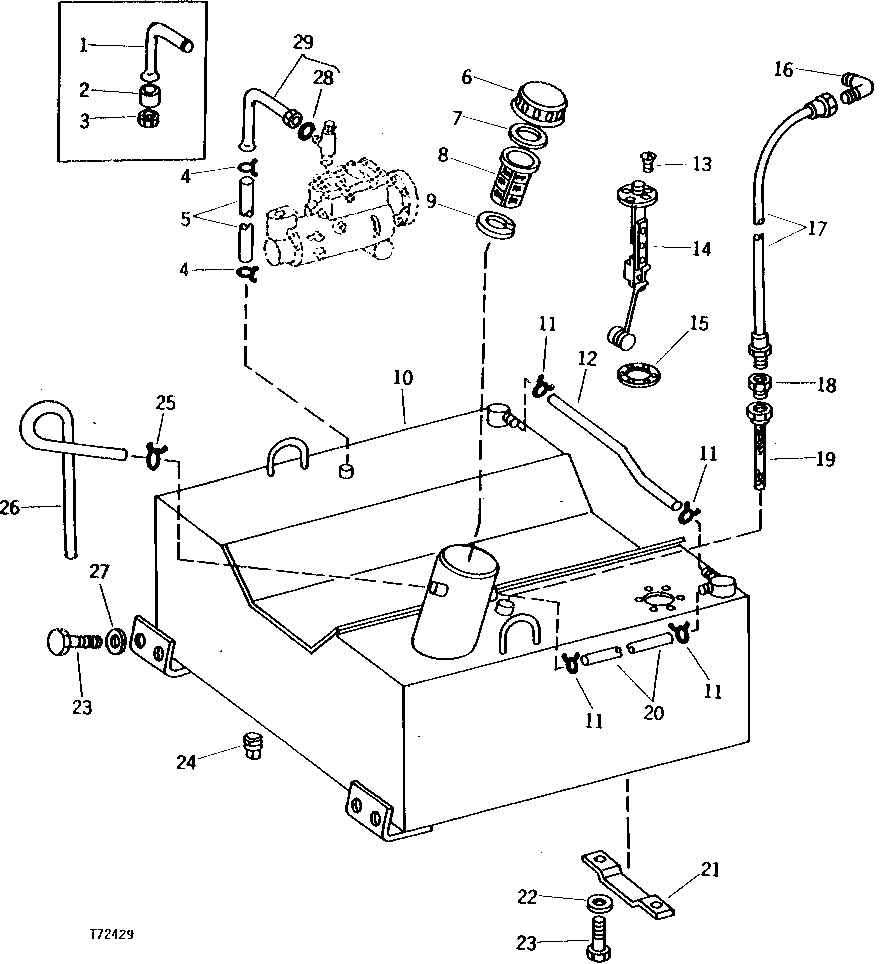

FUEL TANK (ENGINE SERIAL NO. 513018- ) [01D05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R54088	1	Fuel Line	(SUB AR93093, THIS APPLICATION)
2	R63603	1	SLEEVE	(USE WITH R54088)
3	R51937	1	Tube Nut	(USE WITH R54088)
4	T13254	2	Clamp	-
5	-	1	Part 5	(MAKE FROM T79477 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T27732 AND T70841)
6	T50842	1	FILLER CAP	-
7	T103461	1	Sealing Washer	(SUB FOR T25551)
8	AT161638	1	Strainer	(SUB FOR AT36652)
9	M596T	1	Snap Ring	-
10	AT39614	1	FUEL TANK	-
11	R34766	4	Clamp	-
12	-	1	Part 12	(MAKE FROM TY22324 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T27229, T67166 AND T79478)
13	37H47	5	SCREW	NO. 8 X 1/2"
14	AT39615	1	SENDER	-
15	R27181	1	GASKET	-
16	T13201	1	ELBOW FITTING	-
17	AT17380	1	HYDRAULIC HOSE	-
18	N30405	1	Adapter Fitting	-
19	T42633	1	FUEL FILTER	-
20	-	1	Part 20	(MAKE FROM TY22324 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T27230, T67166 AND T79478)
21	T42177	1	CLAMP	-
22	24H1341	2	Washer	17/32" X 15/16" X 0.060"
23	19H3579	6	Cap Screw	1/2" X 1-3/8"
24	15H690	1	Pipe Plug	3/4"
25	TY22462	1	Clamp	(SUB FOR AR48236)
26	-	1	Part 26	(MAKE FROM TY22323 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T64421 AND T74979)
27	24H1625	4	Washer	17/32" X 1" X 0.120"
28	R63603	1	SLEEVE	-
29	AR93093	1	FUEL LINE	-

FUEL TANK (ENGINE SERIAL NO. 513018- ) [01D05]
