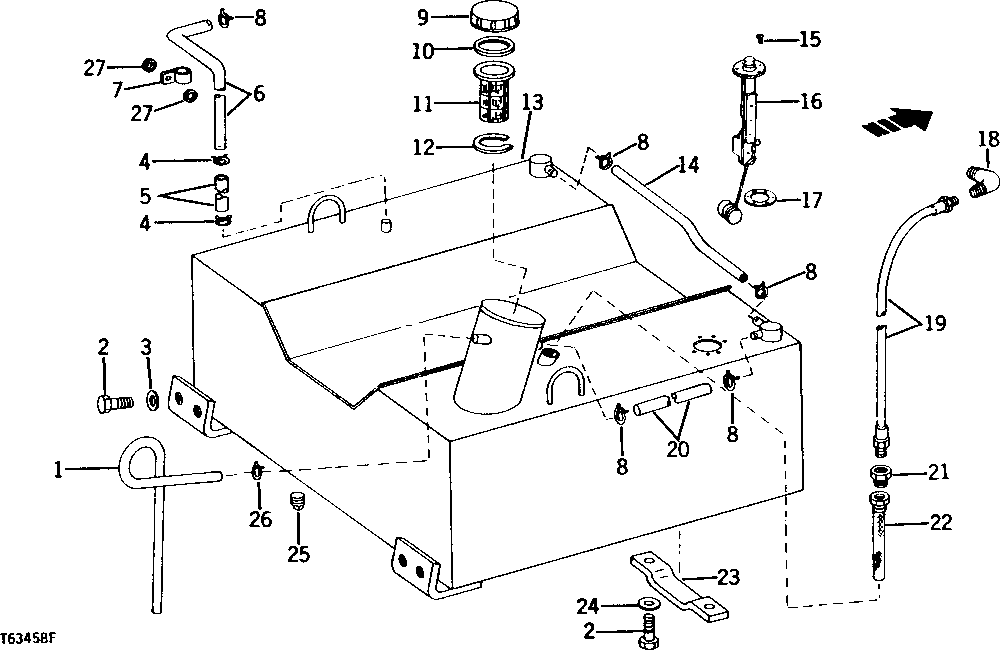

FUEL TANK (ENGINE SERIAL NO. -513017) [01D03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(MAKE FROM TY22323 BULK MATERIAL) (CUT TO LENGTH) (SUB FOR T27228, T64421 AND T74979)
2	19H3579	6	Cap Screw	1/2" X 1-3/8"
3	24H1625	4	Washer	17/32" X 1" X 0.120"
4	T13254	2	Clamp	-
5	-	1	Part 5	(WITHOUT AIR CONDITIONING) (SUB FOR T29699) (SUB T79477 BULK MATERIAL, CUT TO LENGTH)
5	T21328	1	HOSE	(WITH AIR CONDITIONING)
6	T44674	1	LINE	(WITHOUT AIR CONDITIONING)
6	T62532	1	LINE	(WITH AIR CONDITIONING)
7	T74410	1	Clamp	(SUB FOR T14264, THIS APPLICATION) (WITHOUT AIR CONDITIONING)
7	T74410	2	Clamp	(SUB FOR T14264, THIS APPLICATION) (WITH AIR CONDITIONING)
8	R34766	5	Clamp	-
9	T50842	1	FILLER CAP	(SUB FOR T40435 AND T47251)
10	T103461	1	Sealing Washer	(SUB FOR T25551)
11	AT161638	1	Strainer	(SUB FOR AT36652)
12	M596T	1	Snap Ring	-
13	AT39614	1	FUEL TANK	-
14	-	1	Part 17	(MAKE FROM TY22324 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T27229, T67166 AND T79478)
15	37H47	5	SCREW	NO. 8 X 1/2"
16	AT39615	1	SENDER	-
17	R27181	1	GASKET	-
18	T13201	1	ELBOW FITTING	-
19	AT17380	1	HYDRAULIC HOSE	7/16" X 470 MM (18-1/2") X 1/8"
20	-	1	Part 23	(MAKE FROM TY22324 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T27230, T67166 AND T79478)
21	N30405	1	Adapter Fitting	-
22	T42633	1	FUEL FILTER	-
23	T42177	1	CLAMP	-
24	24H1341	2	Washer	17/32" X 15/16" X 0.060"
25	15H690	1	Pipe Plug	3/4"
26	TY22462	1	Clamp	(SUB FOR T29014 OR AR48236)
27	24H1290	4	Washer	21/64" X 3/4" X 0.035", (WITH AIR CONDITIONING)
