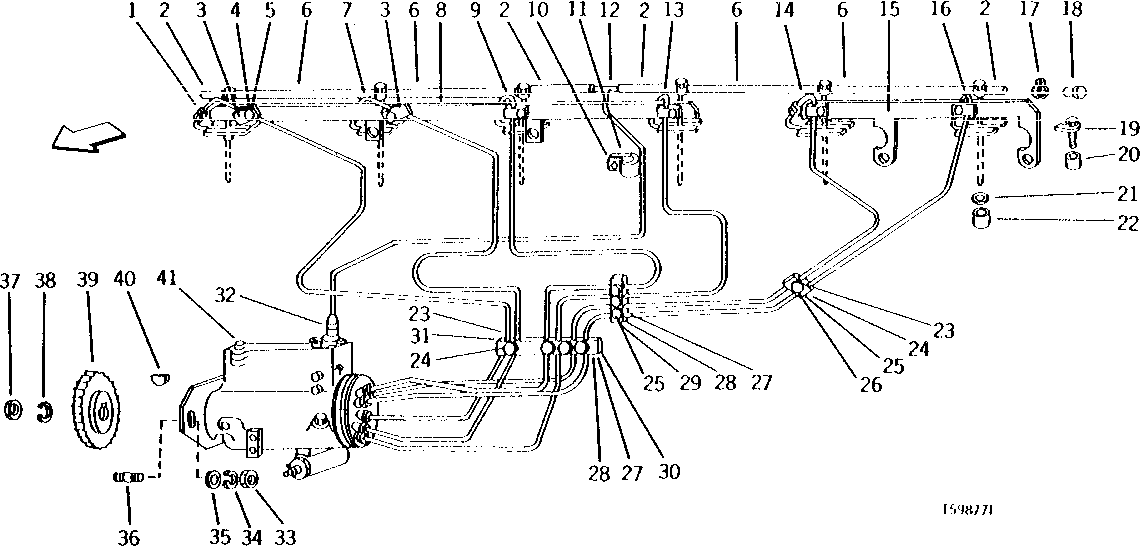

FUEL INJECTION SYSTEM (ENGINE SERIAL NO. 472818-513017) [01D17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR66274	1	FUEL LINE	NO. 1
2	-	1	Part 2	(MAKE FROM R68281, 1.52M (5') BULK)
3	R63657	6	Clamp	-
4	19H2664	6	Cap Screw	5/16" X 3/4"
5	24H1243	6	WASHER	11/32" X 5/8" X 1/16"
6	-	1	Part 6	(MAKE FROM R68281, 1.52M (5') BULK)
7	AR66275	1	FUEL LINE	NO. 2
8	AR88421	1	SUPPORT	(SUB FOR AR78584) (ALSO ORDER 19H2633)
9	AR66276	1	FUEL LINE	NO. 3
10	19H2633	2	Cap Screw	3/8" X 1-1/2"
11	T29969	1	Clamp	(SUB FOR R35422, THIS APPLICATION)
12	AR65872	1	LINE	-
13	AR66277	1	FUEL LINE	NO. 4
14	AR66278	1	FUEL LINE	NO. 5
15	AR78585	1	SUPPORT	-
16	AR66279	1	FUEL LINE	NO. 6
17	TY22462	2	Clamp	(SUB FOR AR48236)
18	16H475	2	RIVET	7/32" X 1/2"
19	R34760	6	CLAMP	-
20	R34761	6	SPACER	(K1) (SUB (6) RE13887, THIS APPLICATION) (SUB RE32011)
20	R60745	6	SPACER	(K) (USE WHEN RE13887 HAS BEEN INSTALLED)
21	R60746	6	WASHER	(K) (USE WHEN RE13887 HAS BEEN INSTALLED)
21	R34764	6	WASHER	(K1) (SUB (6) RE13887, THIS APPLICATION) (SUB RE32011)
22	R48000	6	Seal	-
23	R58186	4	Clamp	-
24	R61144	2	Strap	-
25	AR76704	4	SCREW	-
26	R59305	1	Strap	-
27	R59299	4	CLAMP	-
28	R61146	2	STRAP	-
29	R59300	1	STRAP	-
30	R63653	1	REINFORCEMENT	-
31	AR86092	4	SCREW	-
32	R35352	1	Fitting	-
33	14H785	3	Nut	5/16"
34	12H303	3	Lock Washer	5/16"
35	24H1136	3	Washer	11/32" X 11/16" X 0.065"
36	R56055	3	STUD	-
37	R56422	1	NUT	-
38	R56423	1	Washer	-
39	R56056	1	GEAR	(48 TEETH)
40	M114270	1	Shaft Key	(SUB FOR R56424)
41	AR104000	1	FUEL INJECTION PUMP	(ROOSA-MASTER NO. DM4627MD4012 OR DM4627ABE4012) (SUB FOR AR66395, ROOSA-MASTER NOS. DM4627MD2684 OR DM4627MD2865)
41	SE500505	1	FUEL INJECTION PUMP	(REMAN FOR AR104000) PKG 1
