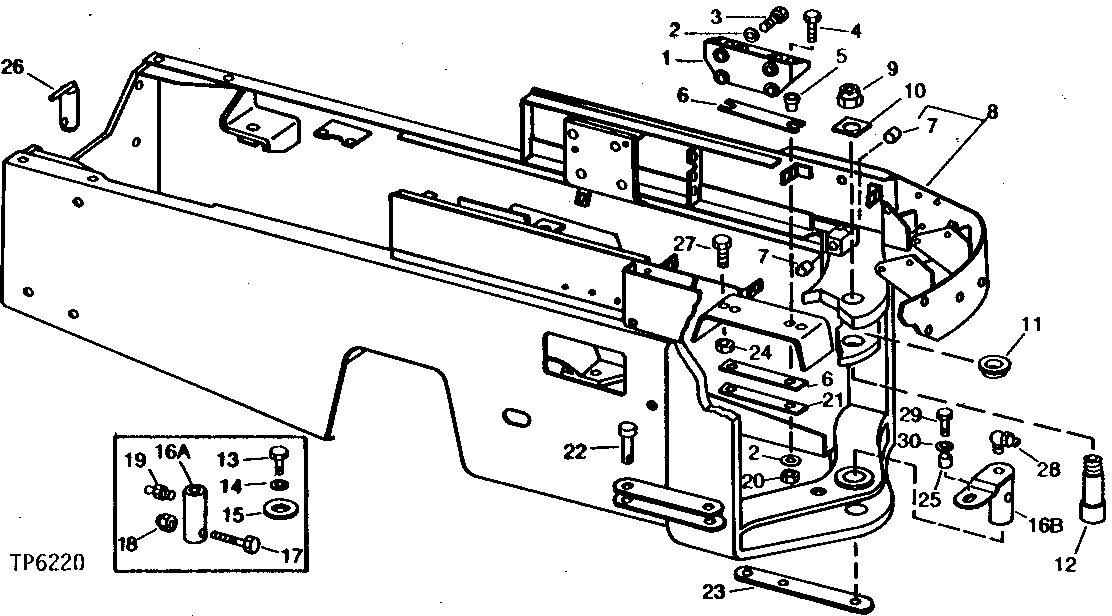

ENGINE FRAME AND TRANSMISSION SUPPORTS [02D11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T46142	2	BRACKET	(SUB FOR T27206)
2	12H294	12	Lock Washer	5/8"
3	19H1356	8	CAP SCREW	5/8" X 1-3/4"
4	19H3208	4	Cap Screw	5/8" X 3"
5	T27298	4	SPACER	-
6	T40883	4	ISOLATOR	-
7	M2038T	2	BUSHING	-
8	-	1	Part 8	(ALSO ORDER AT53170 FOR LOADERS BUILT PRIOR TO SERIAL NO. 247600) ( AT39593 USE IF AVAILABLE)
9	T27294	1	LOCK NUT	-
10	T27291	1	STRAP	-
11	T27290	1	LOCKING COLLAR	-
12	AT25333	1	PIN FASTENER	UPPER PIVOT
13	19H2021	1	Cap Screw	3/8" X 5/8"
14	24H1305	1	Washer	13/32" X 13/16" X 0.065"
15	T29488	1	COVER	-
17	19H1840	1	CAP SCREW	1/2" X 5-1/2"
18	BP12214	1	Lock Nut	(SUB FOR U12622)
19	JD7771	1	Lubrication Fitting	-
20	14H1039	4	Nut	5/8"
21	T27299	2	STRAP	-
22	R53296	2	Pin Fastener	-
23	T27295	1	STRAP	-
24	14H812	4	NUT	3/8"
25	28H1596	1	WASHER	(A) 1/2" X .312"
26	AT39592	1	PIN	-
27	19H1648	4	Cap Screw	3/8" X 3/4"
28	JD7763	1	Lubrication Fitting	(A)
29	19H2472	1	Cap Screw	(A) 1/2" X 1"
30	24H1211	1	Washer	(A) 9/16" X 1-3/8" X 0.105"
..	AT53170	1	PIN FASTENER	-
16A	T27286	1	PIN FASTENER	(ALSO ORDER T13624)
16A	-	1	Part 16	LOWER, (WHEN AT30164 IS NO LONGER AVAILABLE,ORDER T27286 AND T13624)
16B	-	1	Part 18	(A) (SUB AT53170)

ENGINE FRAME AND TRANSMISSION SUPPORTS [02D11]
