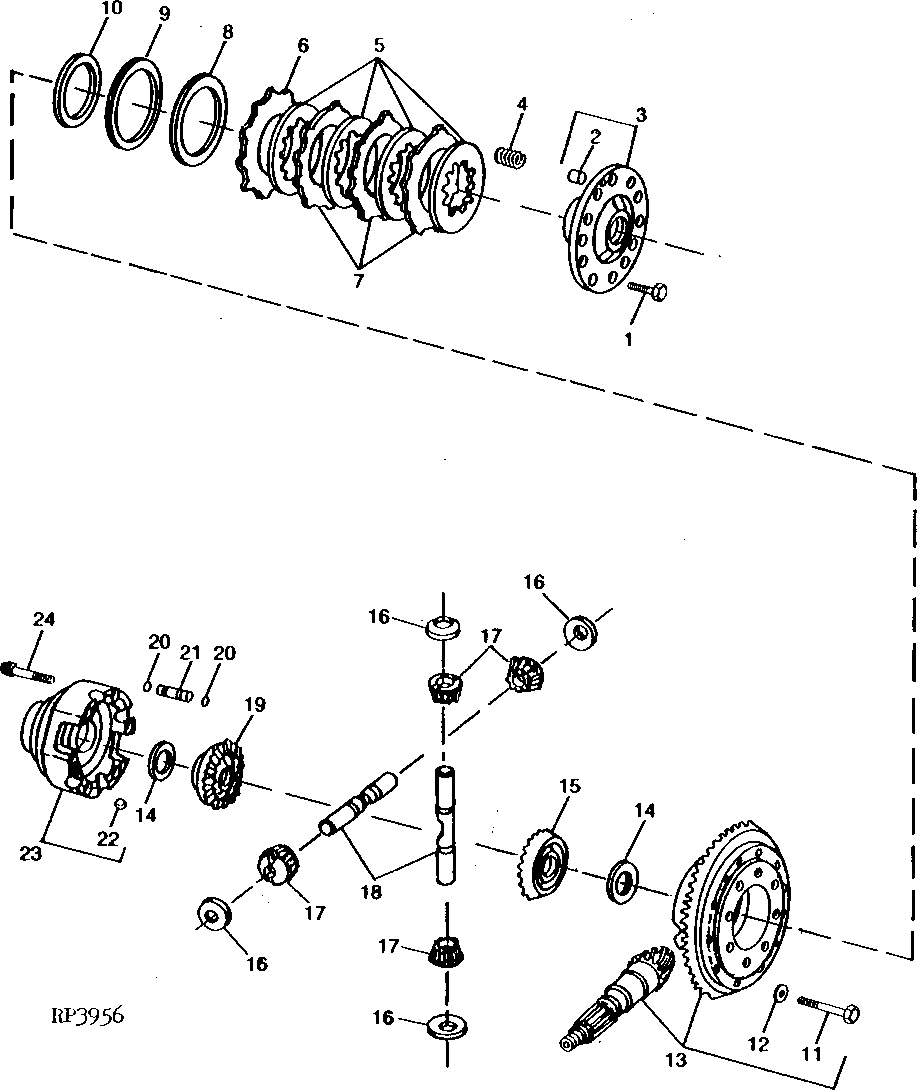

DIFFERENTIAL HOUSING (DIFFERENTIAL LOCK) [01G14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R116064	12	CAP SCREW	(SUB FOR (12) R40236)
2	34H311	3	Spring Pin	1/4" X 7/8"
3	AR79951	1	COVER	(MARKED R51972, R62467 OR R64288) (SUB FOR AR58541)
4	R41770	3	Spring	-
5	AR86454	4	DISK WITH INNER SPLINE	(SUB FOR AR34705 AND AR70154) (SUB (4) RE53823, R34857 AND (3) R34858)
6	R34857	1	Clutch Plate	-
7	R34858	3	Clutch Plate	-
8	R34855	1	PISTON	-
9	R41017	1	WASHER	-
10	R44328	1	WASHER	-
11	R48787	12	Cap Screw	-
12	R48429	12	Washer	-
13	AR64993	1	HOUSING	(GEAR MARKED R44383, SHAFT MARKED R41977, AND HOUSING MARKED R65251 OR R55605) (INCLUDES SHIMS) (SUB AR64997, R26227, R26228, R45197, R45198, R45199 AND R45200)
14	R77145	2	WASHER	(SUB FOR R53202 AND R65741) (SUB R93623)
15	R51970	1	BEVEL GEAR	-
16	R44388	4	THRUST WASHER	-
17	R42444	4	PINION	-
18	R58426	2	PINION SHAFT	-
19	R51971	1	BEVEL GEAR	-
20	R10093	4	O-Ring	-
21	R52631	2	BUSHING	-
22	400R	4	Ball	-
23	AR78951	1	HOUSING	(MARKED R65252) (SUB FOR AR56178)
24	R116211	8	Screw	(SUB FOR R52718)

DIFFERENTIAL HOUSING (DIFFERENTIAL LOCK) [01G14]
