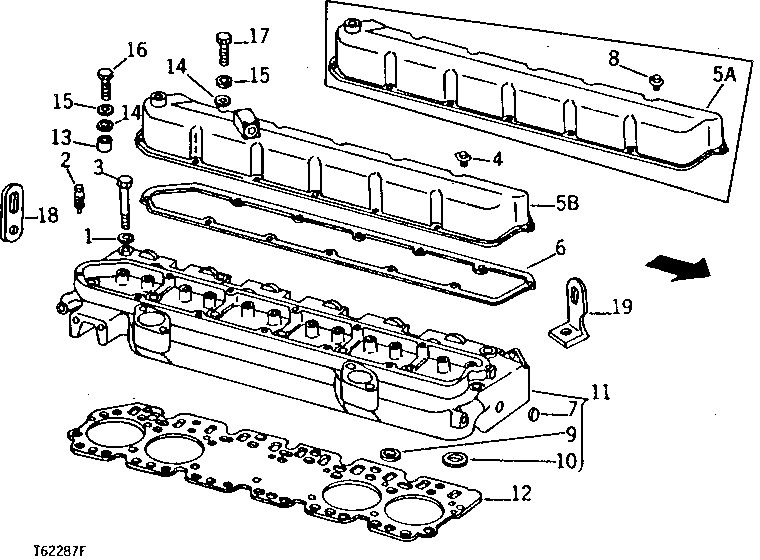

CYLINDER HEAD AND ROCKER ARM COVER [01B09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20168	26	Washer	(DO NOT USE WITH R85363)
2	AT37368	1	SENDER	-
3	R53223	26	CAP SCREW	-
4	AR103811	9	SCREW WITH WASHER	(SUB FOR AR45530, THIS APPLICATION) (SUB FOR AR100124) (USE WITH AR70357 OIL LINE)
4	AR103811	12	SCREW WITH WASHER	(SUB FOR AR100124) (USE WITH RE10598 OIL LINE)
5	AT21679	1	Valve Cover	-
6	R75728	1	Gasket	(SUB FOR T20467 AND AR102260) (ALSO ORDER (12) AR103811 CAP SCREWS AND WASHERS)
7	CD16284	1	Plug	-
7	A3910R	1	PLUG	-
8	AR100124	1	Screw With Washer	(SUB FOR AR45530, THIS APPLICATION)
9	R51734	6	VALVE SEAT INSERT	EXHAUST
10	R57079	6	VALVE SEAT INSERT	INTAKE
11	AR73979	1	CYLINDER HEAD	(MARKED R61035) (SUB FOR AR62450) (MARKED R54550) (SUB RE56303)
12	R114157	1	Engine Cylinder Head Gasket	(SUB FOR R56575, R80243, R91880 AND R92426)
13	28H1523	1	Bushing	0.493" X 0.675" X 13/16", (USE WITH AR70357 OIL LINE)
14	R64764	3	Washer	(SUB FOR L186T)
14	R64764	4	Washer	(SUB FOR L186T) (USE WITH AR70357 OIL LINE)
15	12H302	3	Lock Washer	1/4"
15	12H302	4	Lock Washer	1/4", (USE WITH AR70357 OIL LINE)
16	19H1898	1	Cap Screw	1/4" X 1-1/2", (USE WITH AR70357 OI LINE)
17	19H2036	2	Cap Screw	1/4" X 7/8"
17	19H2036	3	Cap Screw	1/4" X 7/8", (USE WITH AR70357 OIL LINE)
18	-	1	Part 26	-
19	-	1	Part 27	-
5A	AT21679	1	Valve Cover	-
5B	AR71698	1	Cover	-
-	R85363	26	Cap Screw	(SUB FOR R78558) (USE WITH SHORT BLOCKS RE25611, RE25612, RE31653 AND RE31657)

CYLINDER HEAD AND ROCKER ARM COVER [01B09]
