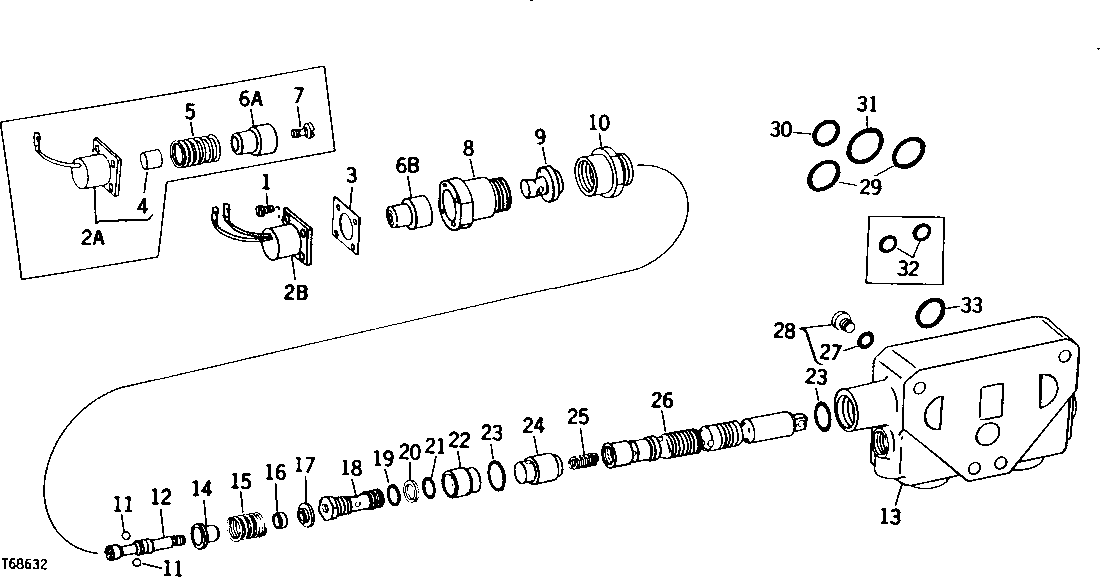

CONTROL VALVE (BUCKET SECTION WITH SPOOL ASSEMBLY) [02B12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1307	4	SCREW	0.164" X 7/16"
3	T42790	1	SHIM	0.08 MM (.003")
3	T42791	1	SHIM	0.13 MM (.005")
3	T42792	1	SHIM	0.25 MM (.010")
4	-	1	Part 7	(SUB AT41715)
5	T42785	1	SPRING	-
7	T42807	1	SCREW	-
8	AT59798	1	CAP	-
8	AT41714	1	CAP	(SUB T62469 AND AT59798, THIS APPLICATION)
9	T66588	1	RETAINER	(SUB FOR T42784)
10	T42781	1	CAP	-
11	T42787	4	BALL	-
12	T42783	1	SCREW	-
13	-	1	Part 19	(SUB AT41713)
13	-	1	Part 20	(SUB AT59804)
14	H26238	1	GUIDE	-
15	U11336	1	SPRING	-
16	U41302	1	WASHER	-
17	U15959	1	WASHER	-
18	T27623	1	PLUG	-
19	R375R	1	O-Ring	(SUB FOR T42786)
20	T27624	1	BACK-UP RING	-
21	P51212	1	O-Ring	-
22	U15966	1	BUSHING	-
23	T27619	2	O-RING	-
24	T27622	1	CHECK VALVE	-
25	U41170	1	SPRING	-
26	-	1	Part 34	(SUB AT59804)
26	-	1	Part 33	(SUB AT41713)
27	T42789	2	O-Ring	-
28	AT41716	2	Plug	-
29	U15973	2	O-Ring	-
30	T42793	4	O-RING	-
31	U15975	1	O-Ring	-
32	L34378	6	O-Ring	(SUB FOR T42793 AND T36492)
33	U15974	1	O-Ring	-
..	AT41717	1	KIT	PORT PLATE REPAIR (SUB T42800, P51079 AND H21957 O-RING)
..	AT59804	1	SPOOL VALVE	(SUB AT54181)
..	AT41723	1	SEAL KIT	MAJOR REPAIR (THREE-SPOOL)
..	AT41721	1	SEAL KIT	MAJOR REPAIR (TWO-SPOOL) (SUB AT41723)
..	AT41720	1	KIT	VALVE REPAIR (BUCKET SECTION)
..	AT41722	1	KIT	BETWEEN SECTION, (SUB FOR AT41718)
..	AT41713	1	SPOOL VALVE	-
2A	AT41715	1	SOLENOID	-
2B	AT52533	1	SOLENOID	-
6A	T42782	1	DETENT	-
6B	T62469	1	DETENT	-
6B	T62469	1	DETENT	(SUB FOR T54570) (ALSO ORDER AT59798)
