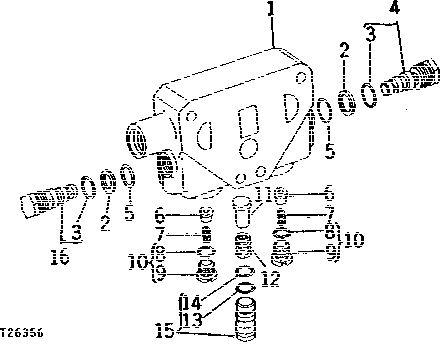

CONTROL VALVE (BUCKET SECTION WITH RELIEF VALVES) [02B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AT41713)
2	U40727	2	BACK-UP RING	-
3	32240	2	O-Ring	-
4	AT27192	1	PRESSURE RELIEF VALVE	17 238 KPA (173 BAR) (2500 PSI)
4	AT54363	1	PRESSURE RELIEF VALVE	18 961 KPA (190 BAR) (2750 PSI)
5	P47908	2	O-Ring	-
6	T27626	2	PLUNGER	-
7	N85304	2	SPRING	-
8	U40745	2	O-Ring	-
9	AT25853	2	PLUG	(SUB FOR T27634)
10	AT25853	2	PLUG	-
11	T27618	1	PLUNGER	-
12	U15961	1	SPRING	-
13	U15981	1	BACK-UP RING	-
14	U15980	1	O-Ring	-
15	AU13386	1	HOUSING	-
16	AT25847	1	PRESSURE RELIEF VALVE	5 861 KPA (59 BAR)(850 PSI)
16	AU40528	1	PRESSURE RELIEF VALVE	10 343 KPA (104 BAR)(1500 PSI)
..	AT41713	1	SPOOL VALVE	-
..	AT54181	1	VALVE	(SUB AT59804)
..	AT59804	1	SPOOL VALVE	-
..	AT41717	1	KIT	PORT PLATE REPAIR (SUB T42800, P51079 AND H21957 O-RING)
..	AT41722	1	KIT	BETWEEN SECTION, (SUB FOR AT41718)
..	AT41720	1	KIT	VALVE REPAIR (BUCKET SECTION)
..	AT41721	1	SEAL KIT	MAJOR REPAIR (TWO-SPOOL) (SUB AT41723)
..	AT41723	1	SEAL KIT	MAJOR REPAIR (THREE-SPOOL)

CONTROL VALVE (BUCKET SECTION WITH RELIEF VALVES) [02B14]

Нет текстового описания
