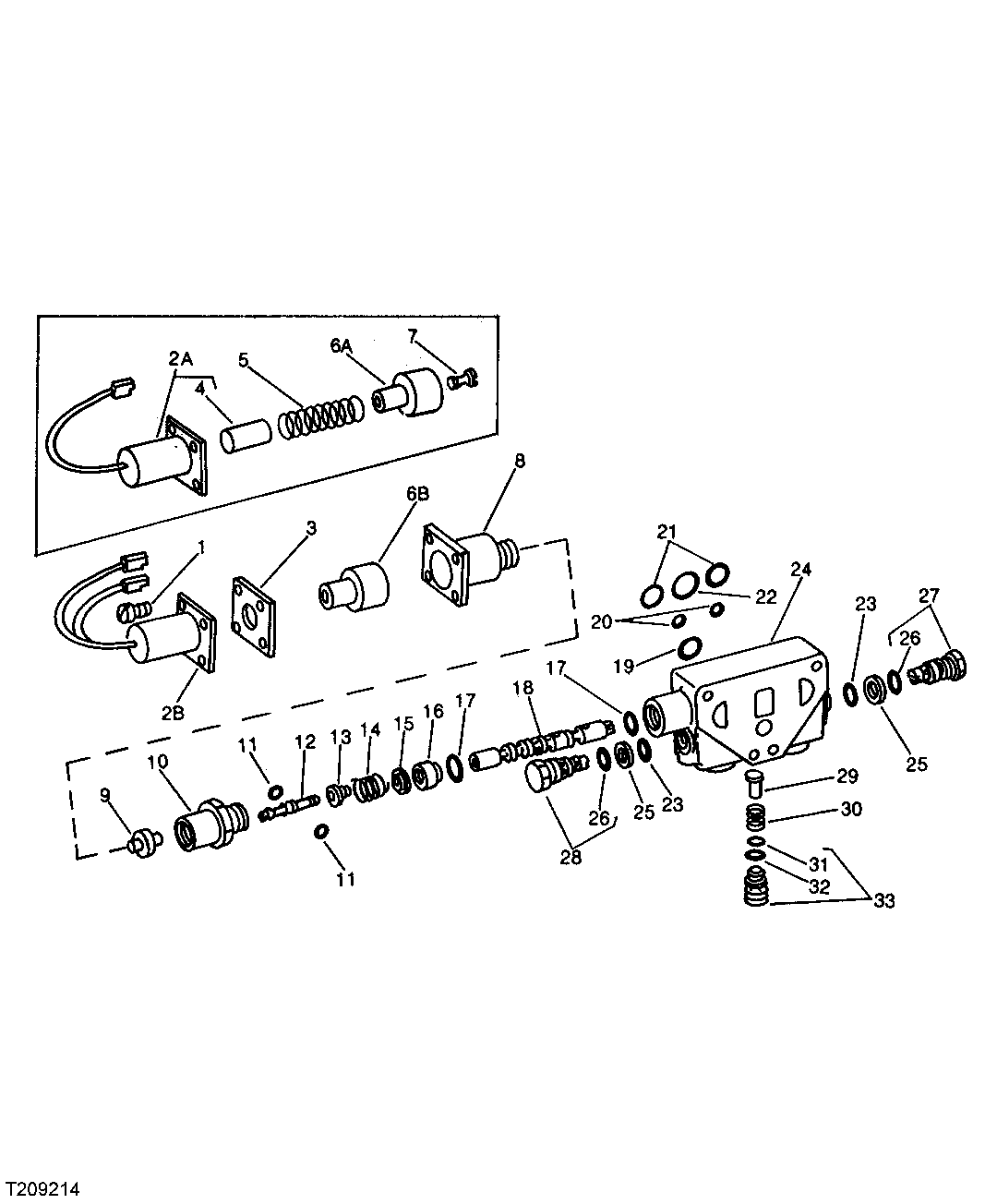

CONTROL VALVE (BOOM SECTION) (WITH BOOM RAISE DETENT) [02B08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1307	4	SCREW	(A) (C) 0.164" X 7/16"
3	T42790	1	SHIM	(A) (C) 0.08 MM (.003")
3	T42791	1	SHIM	(A) (C) 0.13 MM (.005")
3	T42792	1	SHIM	(A) (C) 0.25 MM (.010")
4	-	1	Part 7	(A) (SUB AT41715)
5	T42785	1	SPRING	(A)
7	T42807	1	SCREW	(A)
8	AT59798	1	CAP	(C)
8	AT41714	1	CAP	(A) (C) (SUB AT59798 AND T62469, THIS APPLICATION)
9	T66588	1	RETAINER	(SUB FOR T42784)
10	T42781	1	CAP	(A) (C)
11	T42787	4	BALL	(A) (C)
12	T49507	1	SCREW	(A) (C) (SUB T62471)
12	T62471	1	SCREW	(A) (C)
13	H26238	1	GUIDE	-
14	U11336	1	SPRING	-
15	U15959	1	WASHER	-
16	U15966	1	BUSHING	-
17	T27619	2	O-RING	-
18	-	1	Part 25	(SUB AT35431)
19	U15974	1	O-Ring	-
20	L34378	6	O-Ring	(SUB FOR T36492)
21	U15973	2	O-Ring	-
22	U15975	1	O-Ring	-
23	P47908	2	O-Ring	-
24	-	1	Part 31	(SUB AT35431)
25	U40727	2	BACK-UP RING	-
26	32240	2	O-Ring	-
27	AT27192	1	PRESSURE RELIEF VALVE	17 238 KPA (173 BAR) (2500 PSI)
27	AT54363	1	PRESSURE RELIEF VALVE	18 961 KPA (190 BAR) (2750 PSI)
28	AT25845	1	CHECK VALVE	-
28	AT25845	1	CHECK VALVE	-
29	T27618	1	PLUNGER	-
30	U15961	1	SPRING	-
31	U15980	1	O-Ring	-
32	U15981	1	BACK-UP RING	-
33	AU13386	1	HOUSING	-
..	AT41719	1	KIT	VALVE REPAIR (BOOM SECTION)
..	AT41721	1	SEAL KIT	MAJOR REPAIR (TWO-SPOOL) (SUB AT41723)
..	AT41722	1	KIT	BETWEEN SECTION, (SUB FOR AT41718)
..	AT59802	1	KIT	SOLENOID DETENT RELEASE
..	AT52534	1	KIT	SOLENOID DETENT RELEASE, (SUB AT59802)
..	AT40349	1	KIT	SOLENOID DETENT RELEASE
..	AT41723	1	SEAL KIT	MAJOR REPAIR (THREE-SPOOL)
..	AT41717	1	KIT	PORT PLATE REPAIR (SUB T42800, P51079 AND H21957 O-RING)
..	AT35431	1	SPOOL VALVE	-
2A	AT41715	1	SOLENOID	(A)
2B	AT52533	1	SOLENOID	(C)
6A	T42782	1	DETENT	(A)
6B	T62469	1	DETENT	(C)
6B	T54570	1	DETENT	(C) (SUB AT59798 AND T62469)

CONTROL VALVE (BOOM SECTION) (WITH BOOM RAISE DETENT) [02B08]
