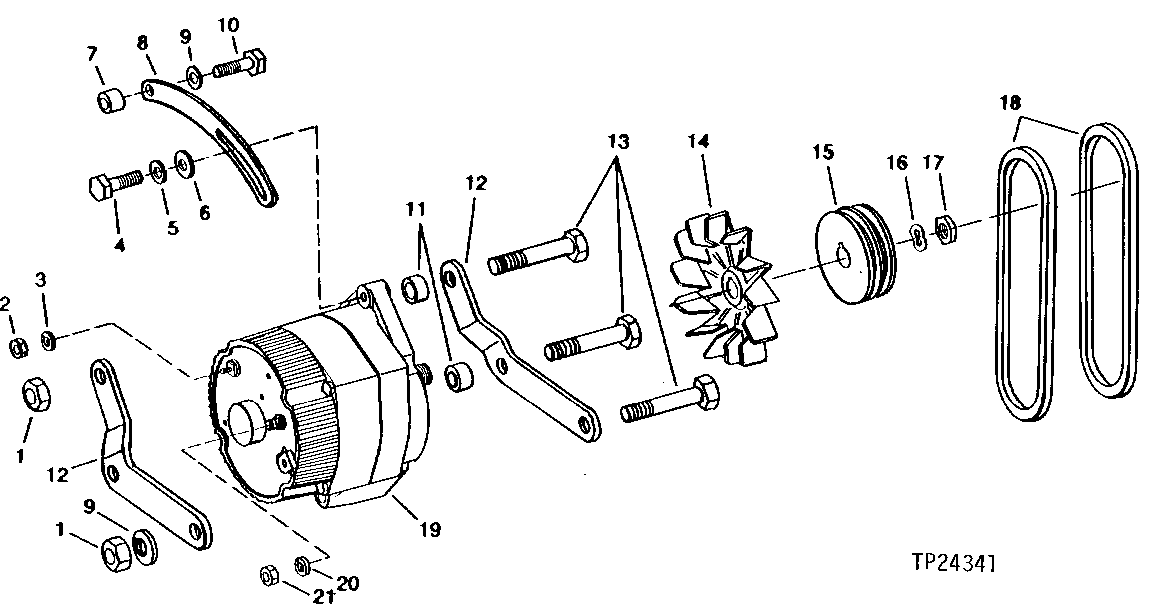

ALTERNATOR AND ATTACHING PARTS (WITHOUT AR CONDITIONING) [02I15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H812	2	NUT	(DELCO-REMY)
1	14M7272	2	Nut	(DELCO-REMY)
1	14H812	2	NUT	3/8", (MOTOROLA)
2	14H786	1	Nut	1/4"
3	12H297	1	Lock Washer	1/4"
4	19H2705	1	Cap Screw	5/16" X 1", (MOTOROLA)
4	19H1905	1	Cap Screw	5/16" X 1", (DELCO-REMY)
4	19M7407	1	Cap Screw	M8 X 25, (DELCO-REMY)
5	12H303	1	Lock Washer	5/16"
6	24H1292	1	Washer	11/32" X 3/4" X 0.120"
7	28H1518	1	Washer	3/8" X 5/16"
8	R57432	1	STRAP	-
9	12H304	2	Lock Washer	3/8", (MOTOROLA)
9	12H304	2	Lock Washer	(DELCO-REMY)
9	12M7066	2	Lock Washer	10 MM, (DELCO-REMY)
10	19H3065	1	Cap Screw	3/8" X 2"
11	28H1878	2	SPACER	3/8" X 7/16"
12	R57260	2	Bracket	-
13	19H2458	3	Cap Screw	3/8" X 3", (MOTOROLA)
13	19H2128	3	CAP SCREW	3/8" X 3", (DELCO-REMY)
13	19M7479	3	Cap Screw	M10 X 80, (DELCO-REMY)
14	R50659	1	Fan	-
15	T42171	1	Pulley	-
16	T10745	1	Washer	-
17	R11049	1	Nut	-
18	AT24833	1	BELT SET	(SET OF TWO BELTS) (ALSO ORDER R57432) (SUB FOR AR72036, THIS APPLICATION)
19	AR54796	1	ALTERNATOR	WITH REGULATOR, LESS PULLEY AND FAN, (SUB AT58321) (61-AMP) (DELCO-REMY NOS. 1100491 AND 1100580)
19	AT58321	1	DC GENERATOR	WITH REGULATOR, LESS PULLEY AND FAN (61-AMP) (DELCO-REMY NO. 1102936)
19	AR93446	1	ALTERNATOR	WITH REGULATOR AND ATTACHING HARDWARE, LESS PULLEY AND FAN (72-AMP) (DELCO-REMY NO. 1103128)
20	12H295	2	Lock Washer	0.190"
21	14H778	2	Nut	0.190"

ALTERNATOR AND ATTACHING PARTS (WITHOUT AR CONDITIONING) [02I15]
