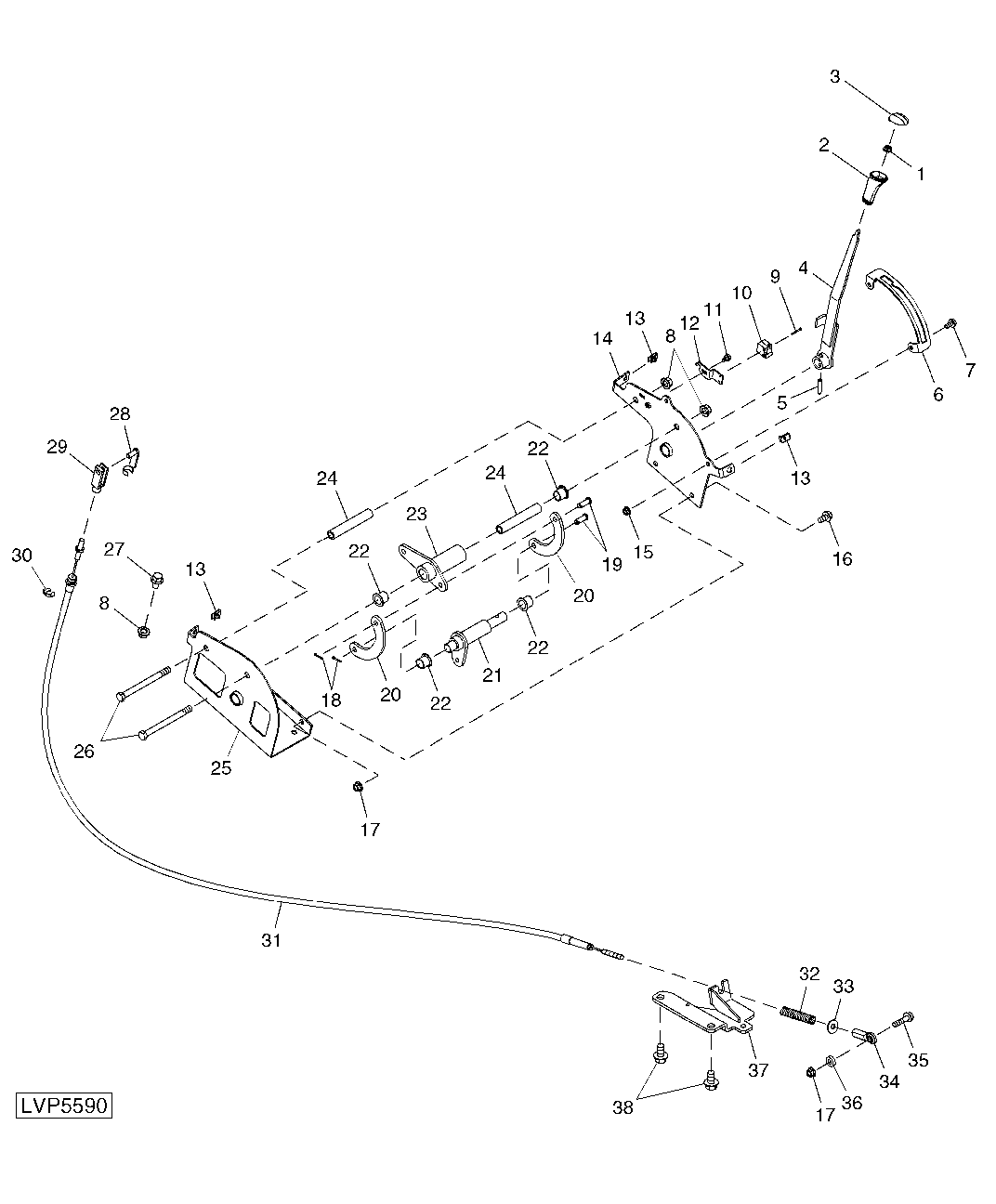

MECHANICAL PTO LEVER AND LINKAGE (ISOLATED OPEN OPERATOR STATION / CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M111717	1	Nut	-
2	L77747	1	Knob	-
3	L78981	1	Insert	-
4	RE73574	1	Control Lever	-
5	34M7046	1	SPRING PIN	8 X 36 mm
6	R140776	1	Gate	-
7	19M7865	2	Screw	M8 X 16, HS=10.9
8	14M7299	2	Flange Nut	(ISOLATED OPEN OPERATOR STATION) (CAB WITH MFWD) M12
8	14M7299	4	Flange Nut	(CAB WITHOUT MFWD) M12
9	21M7345	2	Screw	M3 X 25
10	RE42470	1	Switch	-
11	19M7774	1	Screw	M6 X 12, HS=10.9
12	R140844	1	Bracket	-
13	R135870	3	Nut	-
14	RE73427	1	Support	-
15	14M7298	2	Flange Nut	M8
16	19M7784	6	Screw	M10 X 20, HS=10.9
17	14M7296	3	Flange Nut	M10
18	11M7012	2	Cotter Pin	3.200 X 16 mm
19	R185916	2	Pin Fastener	10 X 28 mm (0.394" X 1.102")
20	R140825	2	Link	-
21	RE221651	1	Bellcrank	LOWER
22	L110766	4	Bushing	-
23	RE73429	1	Crank	UPPER
24	R140824	2	Spacer	-
25	RE73426	1	Support	-
26	19M8061	2	Cap Screw	M12 X 140, HS=10.9
27	19M7787	2	Screw	(CAB WITHOUT MFWD) M12 X 20, HS=10.9
28	45M7063	1	Pin Fastener	-
29	54M4422	1	Yoke	-
30	R112612	1	Snap Ring	-
31	RE258881	1	Push Pull Cable	(SUB FOR RE185354, THIS APPLICATION)
32	M74908	1	Compression Spring	-
33	24M7178	1	Washer	10.500 X 30 X 2.500 mm
34	SJ10696	1	Link End	(SUB FOR RE193849
35	19M8162	1	Screw	M10 X 40, HS=10.9
36	24H1781	1	Washer	13/32" X 7/8" X 1/4"
37	RE177620	1	Bracket	-
38	19M8672	2	Screw	M14 X 25, HS=10.9

MECHANICAL PTO LEVER AND LINKAGE (ISOLATED OPEN OPERATOR STATION / CAB)
