FUEL TANK AND HOSES (ISOLATED OPEN OPERATOR STATION / CAB)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7396	4	Lock Nut	M8
2	R217791	1	Rod	-
3	AL113087	1	Filler Cap	LOCKING CAP (INCLUDES KEYS)
3	AL113086	1	Filler Cap	-
4	L112337	1	Sealing Washer	-
5	L80418	1	Insert	-
6	AH159448	1	Link Chain	-
7	RE213932	1	Filler Neck	-
8	19M7897	4	Screw	M8 X 35
9	24M7101	3	Washer	11 X 34 X 3 mm
10	R177726	1	Hose	-
11	AH104837	2	Hose Clamp	-
12	19M8029	2	Cap Screw	M16 X 30
13	R216802	1	Bracket	REAR
14	14M7400	4	Lock Nut	M10
15	19M7774	2	Screw	M6 X 12
16	AH89557	2	Clip	(SUB FOR N10010)
17	TY22467	3	Clamp	-
18	L2646N	1	Pipe Plug	-
19	N30405	1	Adapter Fitting	-
21	RE187161	8	Clamp	(USE WITH RE280058)
21	RE187161	10	Clamp	(SUB FOR AR48236, OR TY22462THIS APPLICATION ) (USE WITH RE214812)
22	R117761	1	Elbow Fitting	-
23	RE214812	1	Fuel Tank	ORDER RE280058
23	RE280058	1	Fuel Tank	-
24	A44705	2	Bushing	-
25	21M7265	5	Screw	M5 X 12
26	R287353	1	Gasket	(SUB FOR R125590)
27	RE285548	1	Fuel Sender	(SUB FOR RE208262)
28	TY22551	1	Bulk Hose	1000 MM (39.5 IN), RETURN (CUT TO LENGTH), (SUB FOR R199121 OR R204017)
29	R248743	1	Fitting	(SUB FOR R134008)
30	TY22551	1	Bulk Hose	305 MM (12 IN), RETURN (CUT TO LENGTH), (SUB FOR R204018)
31	TY22552	2	Bulk Hose	915MM (36 IN), SUPPLY (CUT TO LENGTH), (SUB FOR R204016 ) (USE WITH RE214812)
32	RE220719	1	Strainer	(USE WITH RE214812)
33	TY22552	1	Bulk Hose	45 MM (1.75 IN), SUPPLY (CUT TO LENGTH), (SUB FOR R222400)
34	AL117189	1	Check Valve	-
35	R226200	1	Support	-
36	19M7944	2	Screw	M10 X 120
37	19M7810	2	Screw	M10 X 80
39	19M7786	2	Screw	M10 X 30
20A	R119990	1	Adapter Fitting	(USE WITH RE214812)
20B	-	1	Part 22	NSEP, (ORDER RE280058 ) (SUB FOR RE2778747)
38A	R220293	1	Bracket	(ISOLATED OPEN OPERATOR STATION) FRONT
38B	R220287	1	Bracket	(CAB) FRONT

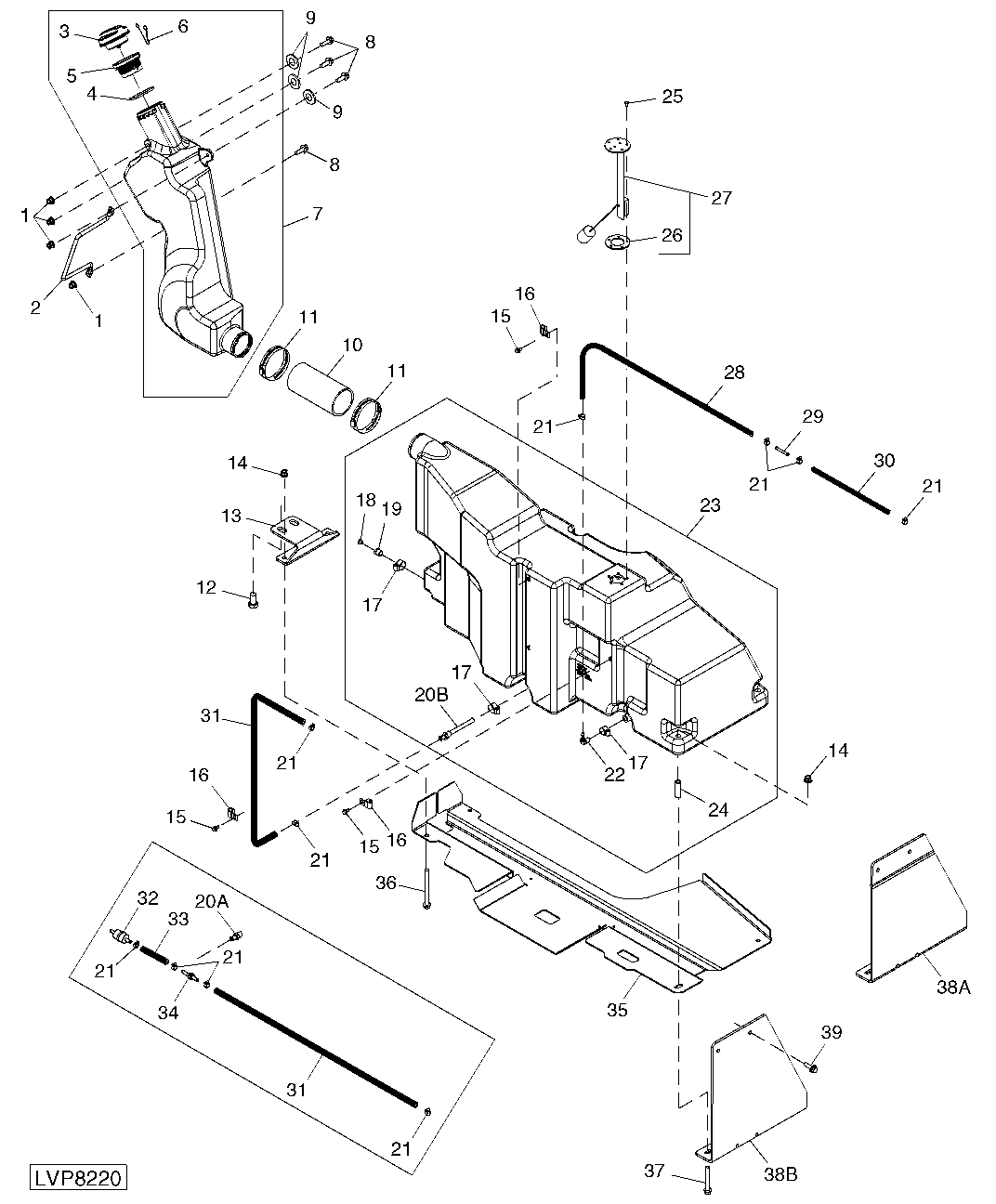

FUEL TANK AND HOSES (ISOLATED OPEN OPERATOR STATION / CAB)
