Wiring Harness (Rear) (With CAB) (420001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE208524	1	Electrical Load Center	(SEE SEPARATE ASSEMBLY)
2	R208523	1	Bracket	-
3	37M7059	3	Screw	M5 X 12
4	37M7374	3	Screw	-
5	Z53033	2	Grommet	-
6	57M8279	1	Elec. Connector Housing	(TO ROOF WIRING HARNESS)
7	-	1	Part 7	LEFT TAIL/TURN
8	-	1	Part 8	-
9	-	4	Part 9	(TO VEC)
10	57M7260	1	Elec. Connector Housing	7-PIN TRAILER CONNECTOR
11	57M7309	1	Elec. Connector Housing	7-PIN TRAILER CONNECTOR
12	57M7328	1	Elec. Connector Housing	SEAT SWITCH
13	-	1	Part 13	VEC POWER
14	57M7263	1	Elec. Connector Housing	PTO SWITCH
15	-	1	Part 15	(TO CAB FRONT CONTROL WIRING HARNESS)
16	12M7032	1	Lock Washer	8.400 mm
17	14M7298	6	Flange Nut	M8
18	57M7293	1	Elec. Connector Housing	A/C COMPRESSOR CLUTCH
19	RE12363	1	Electrical Connector Assy	NEUTRAL START
20	-	1	Part 20	FRONT WASHER PUMP
21	-	1	Part 21	REAR WASHER PUMP
22	-	1	Part 22	-
23	57M7257	1	Elec. Connector Housing	REAR WIPER OPTION
24	U46662	1	Elec. Connector Terminal	CIGAR LIGHTER
25	-	1	Part 25	RIGHT TAIL/TURN
26	37M7061	2	Screw	M5 X 20
27	R209439	1	Bracket	-
28	37M7089	3	Screw	M6 X 12
29	RE208521	1	Cab Wiring Harness	-
30	-	1	Part 30	FUSE LINK
31	-	2	Part 31	FUEL SENDER

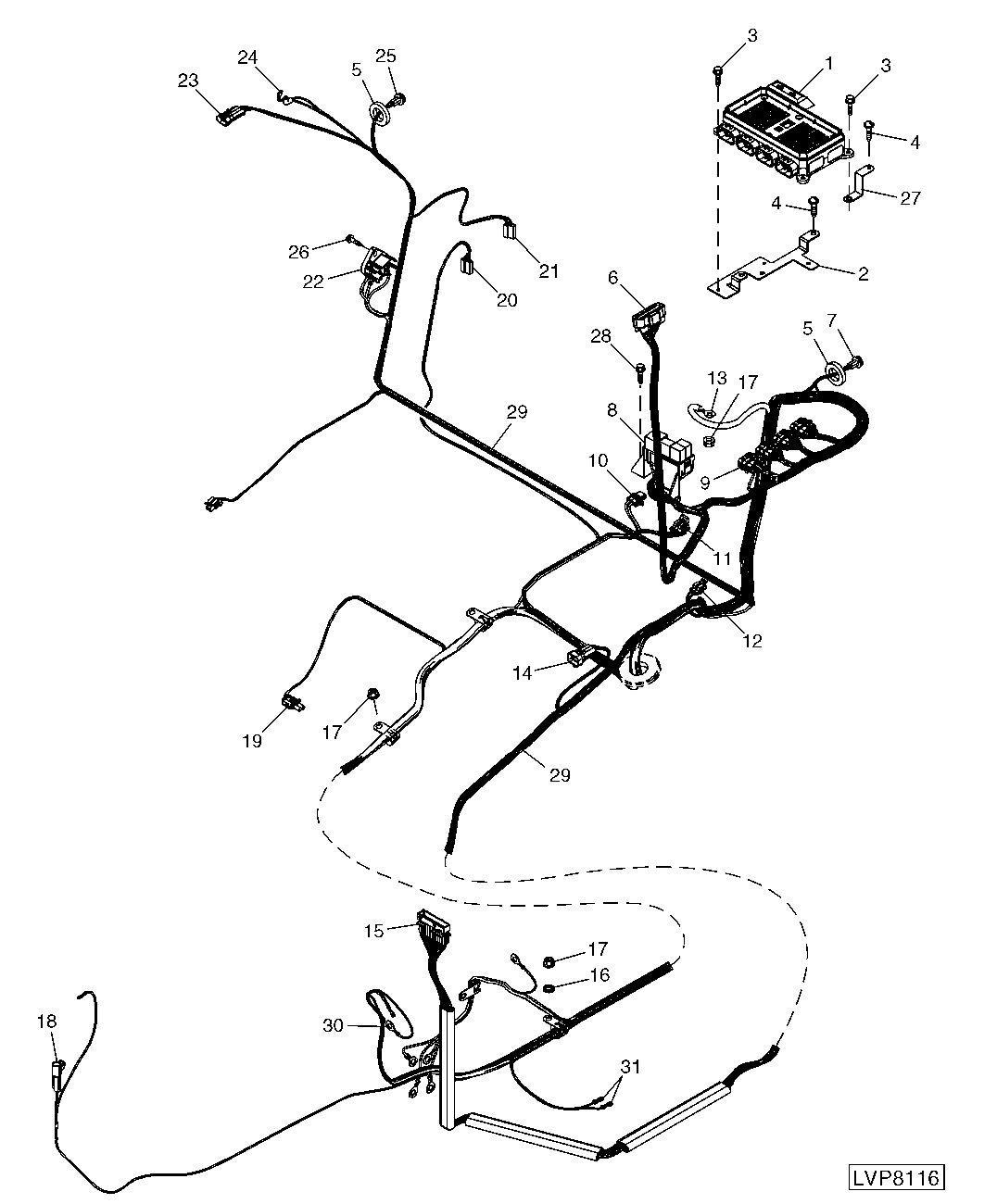

Wiring Harness (Rear) (With CAB) (420001 - )
