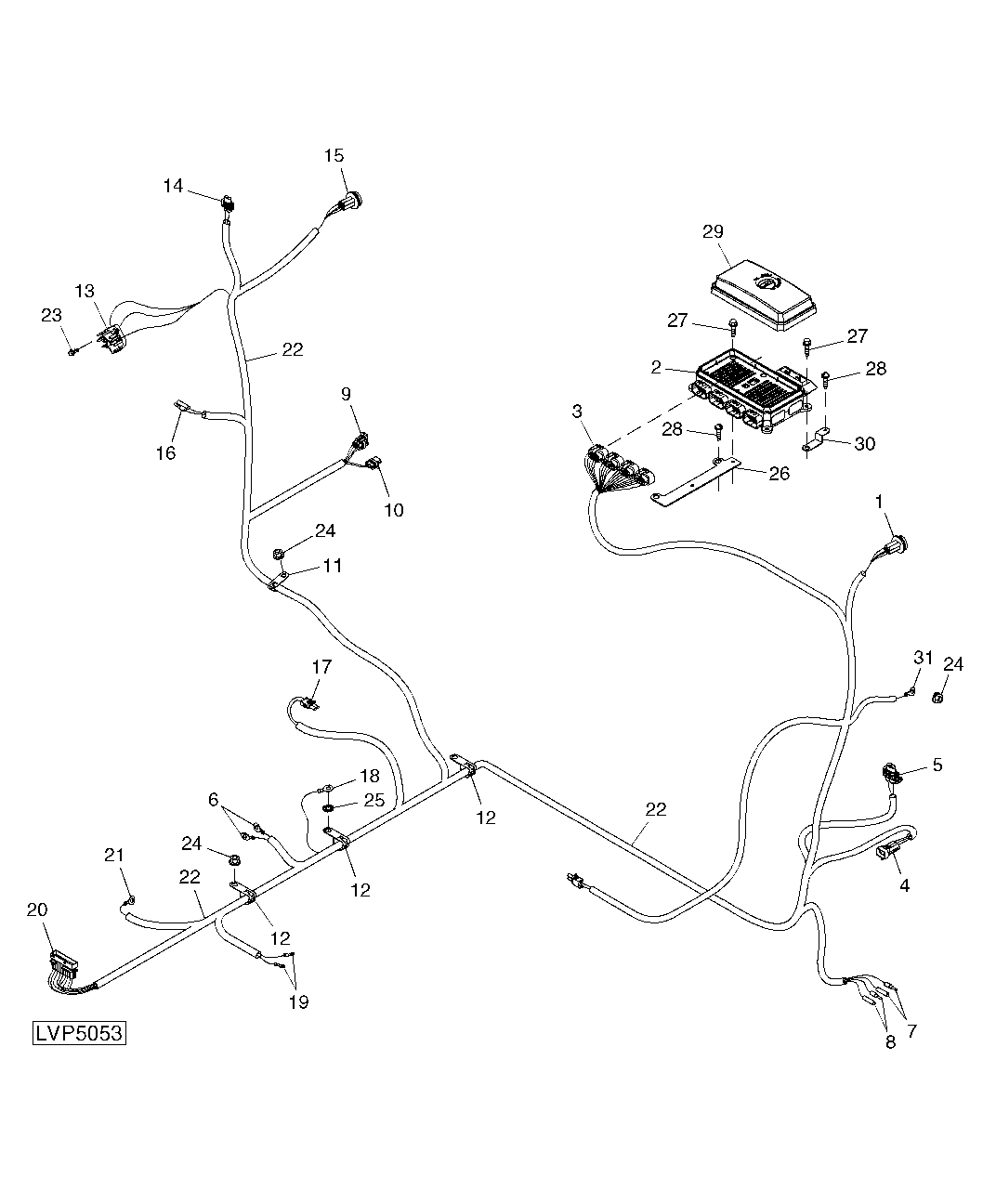

Wiring Harness (Rear) (Isolated Open Operator Station Platform) (420001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7344	1	Elec. Connector Housing	LEFT TAIL/TURN
2	RE208524	1	Electrical Load Center	(SEE SEPARATE ASSEMBLY)
3	-	4	Part 3	(TO VEC)
4	57M7263	1	Elec. Connector Housing	PTO SWITCH
5	57M7328	1	Elec. Connector Housing	SEAT SWITCH
6	57M7571	2	Elec. Connector Terminal	TRANSMISSION GROUND
7	-	1	Part 7	LEFT WARNING LAMP
8	-	1	Part 8	REAR WORK LAMP
9	57M7260	1	Elec. Connector Housing	7-PIN TRAILER CONNECTION
10	57M7309	1	Elec. Connector Housing	7-PIN TRAILER CONNECTION
11	-	1	Part 11	-
12	-	3	Part 12	-
13	RE186986	1	Junction Block	-
14	57M7349	1	Elec. Connector Accessory	RIGHT FENDER FLOOD
15	57M7344	1	Elec. Connector Housing	RIGHT TAIL/TURN
16	-	1	Part 16	RIGHT WARNING LAMP
17	RE12363	1	Electrical Connector Assy	NEUTRAL START SWITCH
18	57M7571	1	Elec. Connector Terminal	PLATFORM GROUND
19	57M7547	2	Elec. Connector Terminal	FUEL LEVEL SENDER
20	57M8070	1	Elec. Connector Housing	(TO FUSE LINK JUNCTION BLOCK)
21	57M8070	1	Elec. Connector Housing	(TO IOOS FRONT CONTROL WIRING HARNESS)
22	RE208520	1	Chassis Wiring Harness	-
23	37M7061	2	Screw	M5 X 20
24	14M7298	7	Flange Nut	M8
25	12M7032	1	Lock Washer	8.400 mm
26	R216140	1	Bracket	-
27	37M7059	3	Screw	M5 X 12
28	37M7374	3	Screw	-
29	R237532	1	Cover	(SUB FOR R216139)
30	R216141	1	Bracket	-
31	-	1	Part 31	VEC POWER
